Company Advantages
· HuiYi Valve carbon steel forged pipe fittings is produced using the lean production method.
· The performance of carbon steel forged pipe fittings has achieved or surpassed the industrialization product performance standard.
· Wenzhou Huiyi Valve Technology Co.,Ltd will improve responsiveness to meet the changing needs of different global customers.
Product Description

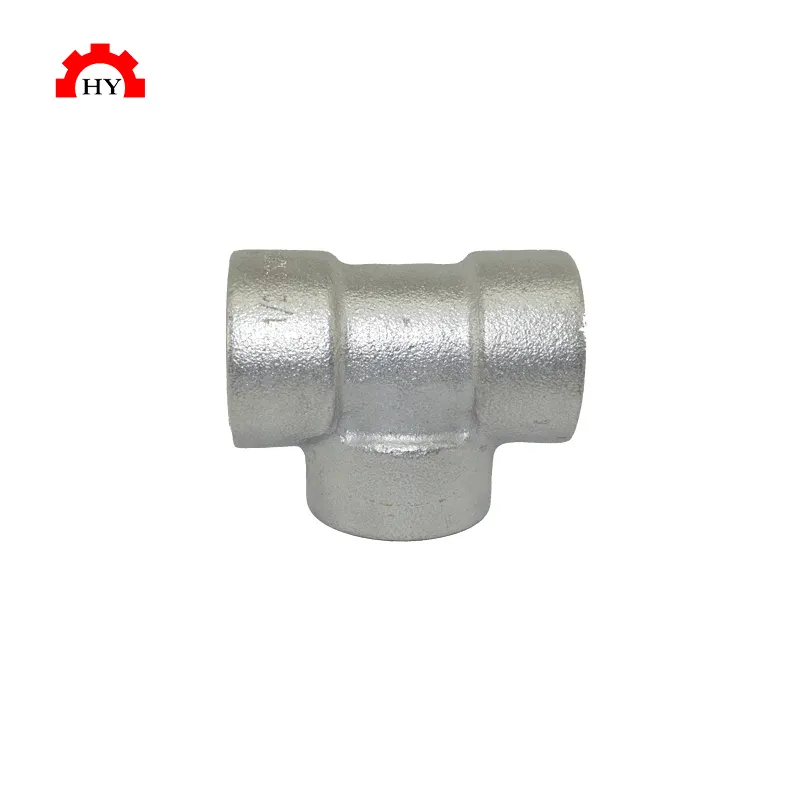

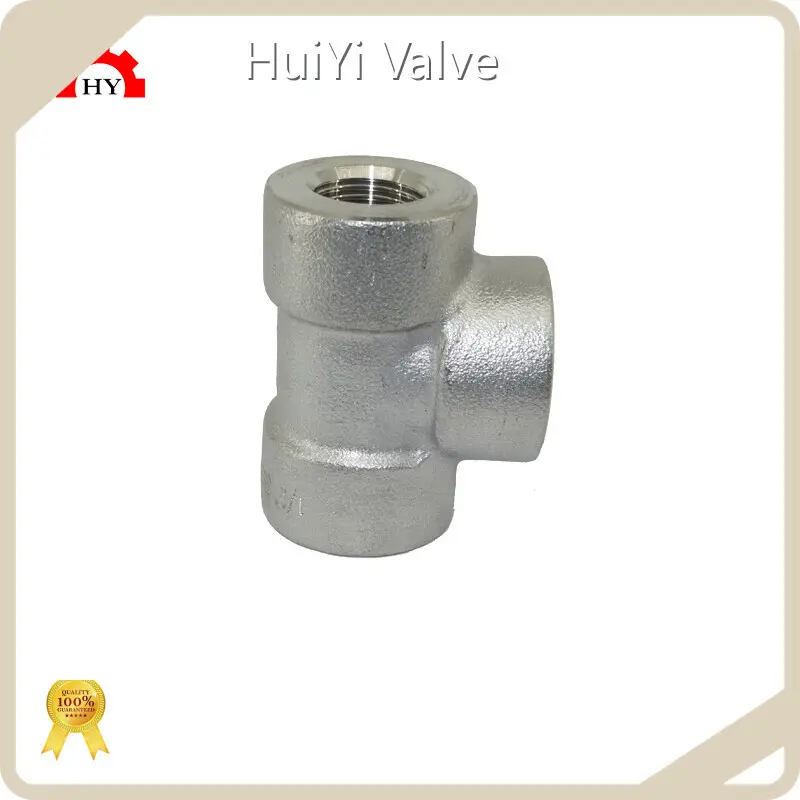

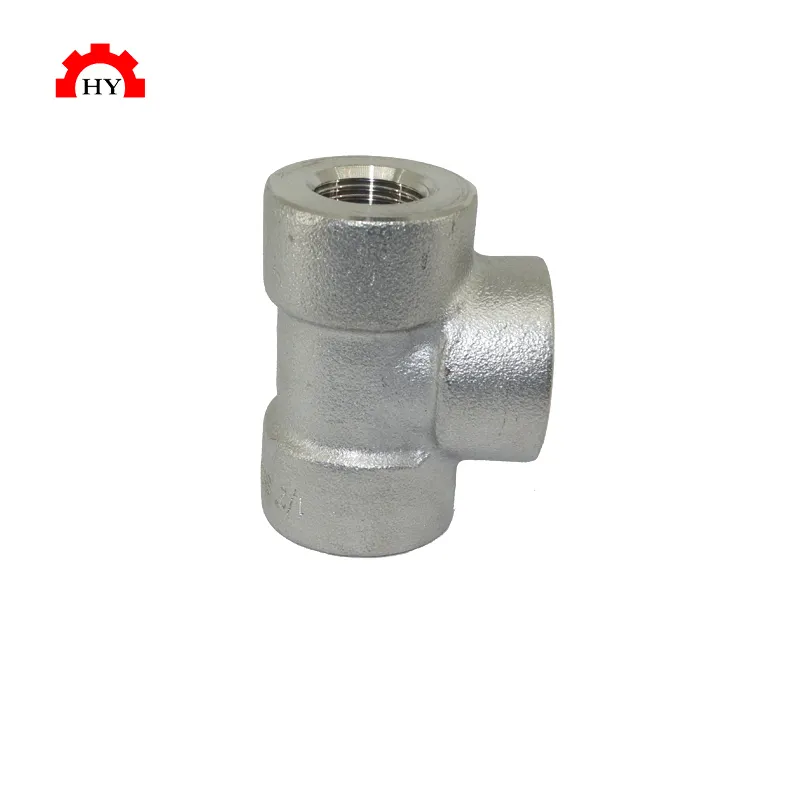

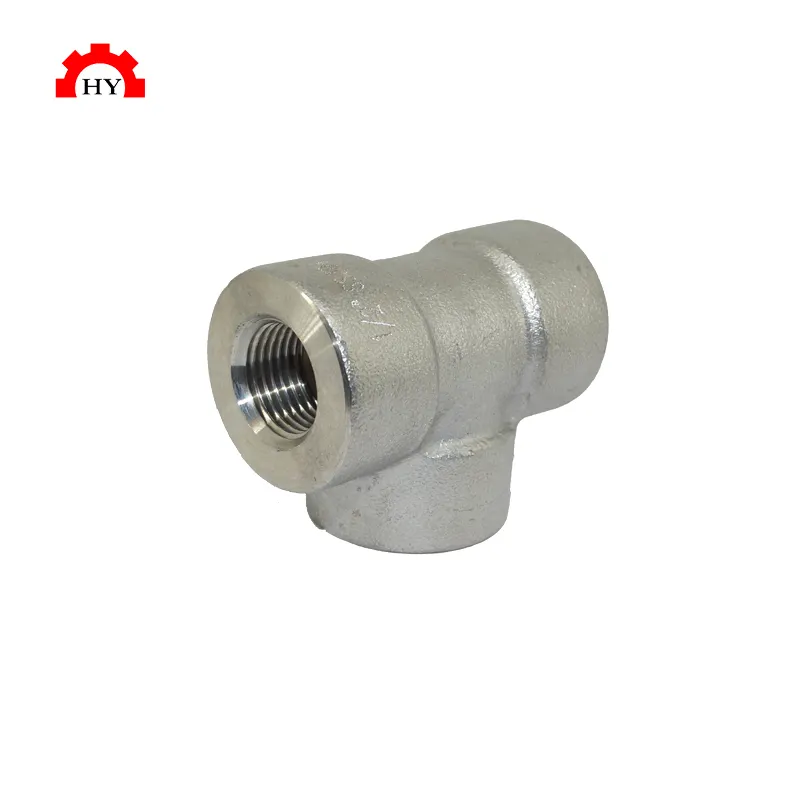

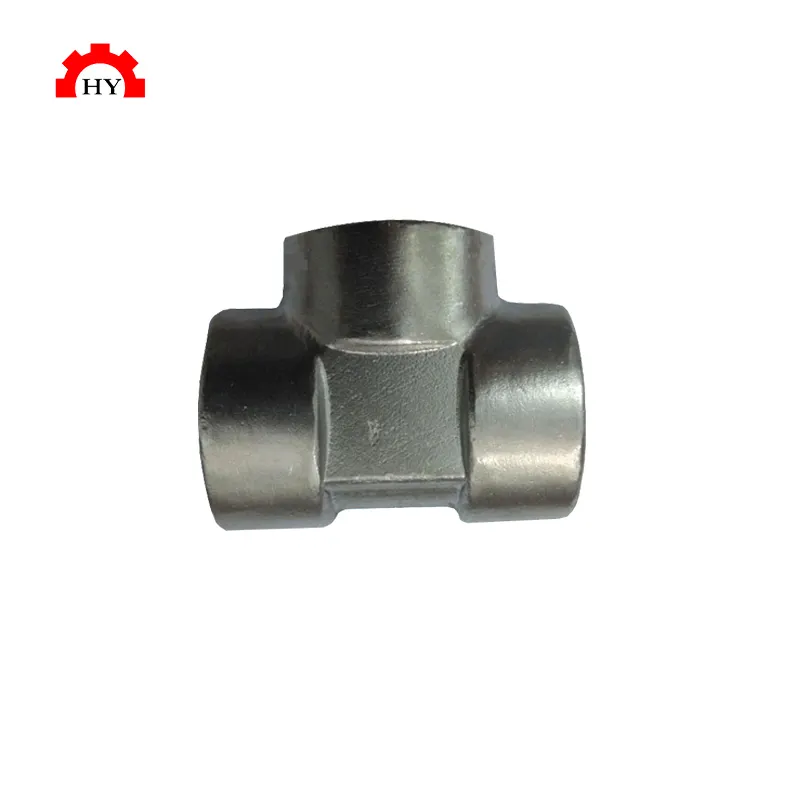

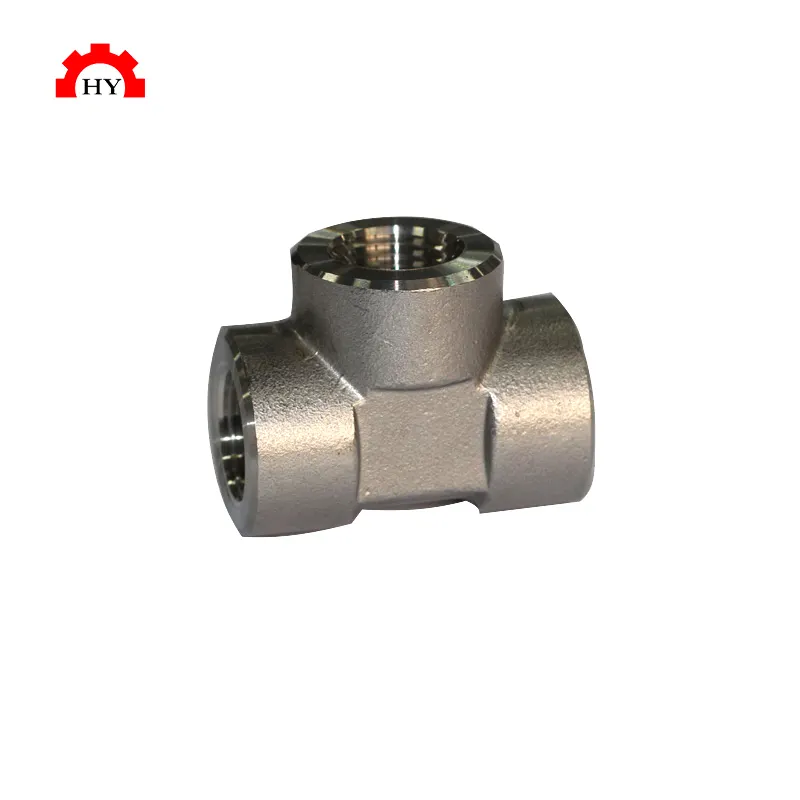

T-shaped pipe fitting for connecting and branching pipes
Female National Pipe Taper (NPT) threads on run and branches
Made from stainless steel 316 for strength, higher corrosion resistance than stainless steel 304
Max Pressure: 16MPa/2320psi; Working Temperature Range: -50℃~+200℃/-58℉~+392℉
Forged for durability, all material is stainless steel. Not include lead, can be used for potable water.
Dimension
Nominal Piple Size (NPS) |
Center to End elbow,tee,cross |
Center to End 45 degree elbow |
Outside Diameter of |
Minimum wall thickness |
Minimum Length of Thread |
|||||||||
2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | B | L2 | |
1/8" | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 |
6.7 |
1/4" | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 |
10.2 |
3/8" | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 |
10.4 |
1/2" | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 |
13.6 |
3/4" | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 |
13.9 |
1" | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 |
17.3 |
1-1/4" | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 |
18.0 |
1-1/2" | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 |
18.4 |
2" | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 84 | 102 | 4.27 | 7.14 | 12.09 | 19.0 |
19.2 |
2-1/2" | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 |
28.9 |
3" | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 |
30.5 |
4" | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 |
33.0 |
Product details
Company Features
· In a highly competitive market, HuiYi Valve is a well-known carbon steel forged pipe fittings supplier.
· All HuiYi Valve products have passed the relevant international standards certification. The quality of carbon steel forged pipe fittings has been rigorously tested to maintain customer satisfaction.
· In pursuit of carbon steel forged pipe fittings quality, it is our responsibility to create a highly efficient lifestyle for our customers. Ask online!
Application of the Product
HuiYi Valve's carbon steel forged pipe fittings is of excellent quality and is widely used in the industry.
With rich manufacturing experience and strong production capability, HuiYi Valve is able to provide professional solutions according to customers' actual needs.
