Product details of the brass compression fittings
Product Information
HuiYi Valve brass compression fittings is designed under the guidance of skilled engineers with vast experiences in this domain. The product has long service life, enabling the long-time uses. There is no doubt that without the high-quality customer service, HuiYi Valve could not have been so popular in this market.

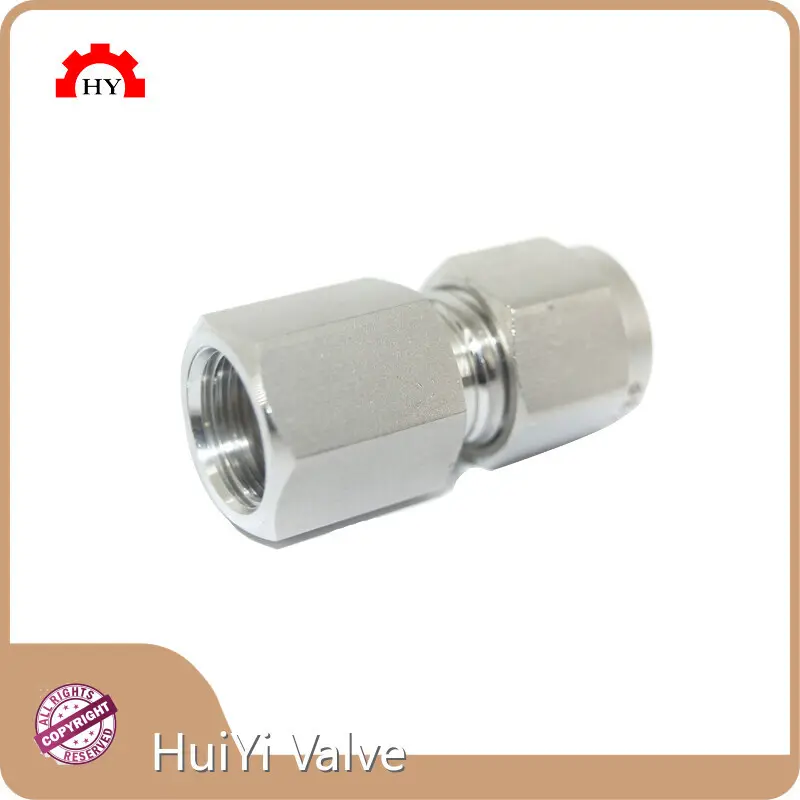

Double ferrule tube fitting on one end and female NPT on the other end, interchangeable with other major brands including Swagelok and Parker A-Lok
Manufactured from high quality 316 304 stainless steel for enhanced mechanical strength and corrosion resistance
Precision machined components ensure perfect deformation of ferrules and tubing, providing leak-tight and vibration-resistant connections even in harsh or stressful applications
Hardened threads with smooth surface finish to avoid galling and extend service life. Nut threads are silver-plated to minimize friction against the body threads
Easy to disconnect and retighten
Dimension
MODEL NUMBER |
TUBE OD |
NPT SIZE |
DIMENSIONS(INCH) |
|||
T,INCH |
A |
D |
E |
F |
||
HY-FC-1/16-1/16 |
1/16 |
1/16 |
0.93 |
0.34 |
0.05 |
7/16 |
HY-FC-1/16-1/8 |
1/8 |
0.96 |
9/16 |
|||
HY-FC-1/8-1/8 |
1/8 |
1/8 |
1.13 |
0.50 |
0.09 |
9/16 |
HY-FC-1/8-1/4 |
1/4 |
1.32 |
3/4 |
|||
HY-FC-3/16-1/8 |
3/16 |
1/8 |
1.17 |
0.54 |
0.12 |
9/16 |
HY-FC-1/4-1/8 |
1/4 |
1/8 |
1.23 |
0.60 |
0.19 |
9/16 |
HY-FC-1/4-1/4 |
1/4 |
1.41 |
3/4 |
|||
HY-FC-1/4-3/8 |
3/8 |
1.48 |
7/8 |
|||
HY-FC-1/4-1/2 |
1/2 |
1.67 |
1-1/16 |
|||
HY-FC-5/16-1/8 |
5/16 |
1/8 |
1.26 |
0.64 |
0.25 |
9/16 |
HY-FC-5/16-1/4 |
1/4 |
1.45 |
3/4 |
|||
HY-FC-3/8-1/8 |
3/8 |
1/8 |
1.29 |
0.66 |
0.28 |
5/8 |
HY-FC-3/8-1/4 |
1/4 |
1.48 |
3/4 |
|||
HY-FC-3/8-3/8 |
3/8 |
1.54 |
7/8 |
|||
HY-FC-3/8-1/2 |
1/2 |
1.73 |
1-1/16 |
|||
HY-FC-3/8-3/4 |
3/4 |
1.88 |
1-5/16 |
|||
HY-FC-1/2-1/4 |
1/2 |
1/4 |
1.59 |
0.90 |
0.41 |
13/16 |
HY-FC-1/2-3/8 |
3/8 |
1.65 |
7/8 |
|||
HY-FC-1/2-1/2 |
1/2 |
1.84 |
1-1/16 |
|||
HY-FC-1/2-3/4 |
3/4 |
1.90 |
1-5/16 |
|||
HY-FC-5/8-1/4 |
5/8 |
3/8 |
1.65 |
0.96 |
0.41 |
15/16 |
HY-FC-5/8-1/2 |
1/2 |
1.84 |
1-1/16 |
|||
HY-FC-5/8-3/4 |
3/4 |
1.90 |
1-5/16 |
|||
HY-FC-3/4-1/2 |
3/4 |
1/2 |
1.84 |
0.96 |
0.62 |
1-1/16 |
HY-FC-3/4-3/4 |
3/4 |
1.90 |
1-5/16 |
|||
HY-FC-7/8-3/4 |
7/8 |
3/4 |
1.96 |
1.02 |
0.72 |
1-5/16 |
HY-FC-1-3/4 |
1 |
3/4 |
2.10 |
1.23 |
0.88 |
1-3/8 |
HY-FC-1-1 |
1 |
2.45 |
1-5/8 |
