Brass Compression Fittings 1000 PSI-10000 PSI by HuiYi Valve
Product details of the brass compression fittings
Product Overview
HuiYi Valve brass compression fittings provides features and functionality beyond value. The product is in compliance with some of the toughest quality standards across the world. brass compression fittings is known for its high quality.
Product Introduction
Compared with similar products, the brass compression fittings of HuiYi Valve is more strict in the selection of raw materials. The specific aspects are as follows.
Product Description

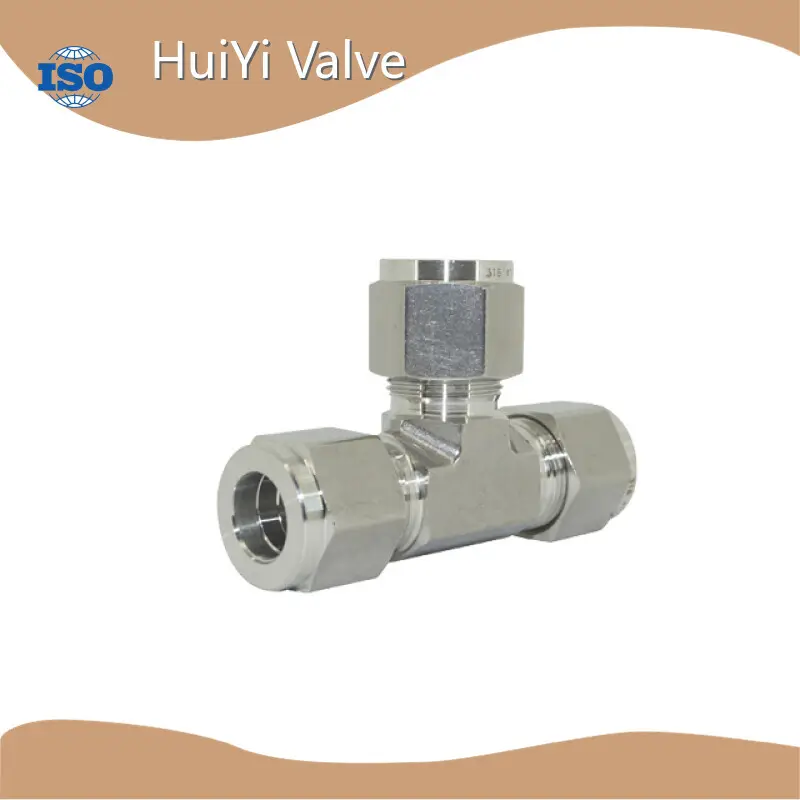

This fitting is made of 304 stainless steel for higher strength and great corrosion resistance. This fitting has hex nut construction for tighter, leak-free connections. It is compatible with stainless steel, copper, rigid and semi-rigid plastic tubing, but is not recommended for soft tubing. It is suitable for use in chemical, petroleum, power generation, laboratory, and medical device plants.
This coupling is for a fixed connection between tubing and pipe made of stainless steel. Twin ferrule compression fitting connects to tubing on end for a leak-resistant seal in high-pressure, high-vacuum, and high-vibration applications When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).
Dimension
|
MODEL NUMBER |
TUBE OD |
DIMENSIONSINCH |
||||
|
T,INCH |
A |
Ax |
D |
E |
F(INCH) |
|
|
HY-UT-1/16 |
1/16 |
1.40 |
0.70 |
0.34 |
0.05 |
3/8 |
|
HY-UT-1/8 |
1/8 |
1.76 |
0.88 |
0.50 |
0.09 |
3/8 |
|
HY-UT-3/16 |
3/16 |
1.92 |
0.96 |
0.54 |
0.12 |
7/16 |
|
HY-UT-1/4 |
1/4 |
2.12 |
1.06 |
0.60 |
0.19 |
1/2 |
|
HY-UT-5/16 |
5/16 |
2.34 |
1.17 |
0.64 |
0.25 |
5/8 |
|
HY-UT-3/8 |
3/8 |
2.40 |
1.20 |
0.66 |
0.28 |
5/8 |
|
HY-UT-1/2 |
1/2 |
2.84 |
1.42 |
0.90 |
0.41 |
13/16 |
|
HY-UT-5/8 |
5/8 |
3.06 |
1.53 |
0.96 |
0.50 |
1 |
|
HY-UT-3/4 |
3/4 |
3.14 |
1.57 |
0.96 |
0.62 |
11/16 |
|
HY-UT-7/8 |
7/8 |
3.52 |
1.76 |
1.02 |
0.72 |
13/8 |
|
HY-UT-1 |
1 |
3.86 |
1.93 |
1.23 |
0.88 |
13/8 |
Product details
Company Introduction
Wenzhou Huiyi Valve Technology Co.,Ltd is a company in We are a specialized provider for In the following days, HuiYi Valve will continue to carry forward the spirit of 'unity, collaboration, dedication, innovation'. Besides, we will always pay attention to customers' needs and strive to make them satisfied based on the service concept. We are committed to building an excellent brand and becoming a leading enterprise with a certain influence in the industry. Our company has a highly educated and professional technical team. According to production demands, our team members provide related technical support to promote the production for quality products. We can provide customers with the most professional and effective solutions based on market research results and customer needs.
We have ample inventory and discounts for large purchases. Welcome to contact us!
