Product Introduction
The shape of our ball valve supplier is more compact and will be convenient to move. The product is of good quality and reliable. Our ball valve supplier has a good reputation and market share in some overseas market.
Product details
Product Overview

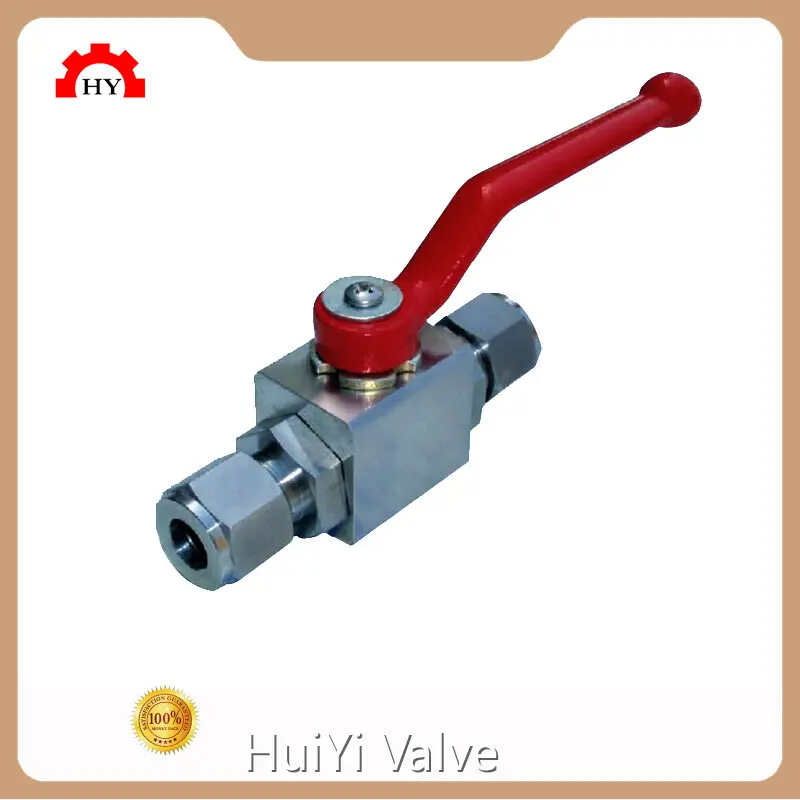

HY brand 2-Way 1/8"-1" 3000 PSI 6000 PSI double joint hydraulic ball valve is designed for high-pressure gas and liquid pipelines, providing precise flow control and reliable sealing performance. This ball valve adopts a double joint design to ensure safety and durability in extreme high-pressure environments.
Advantages and features
● Size Diversity: Provide a variety of size options from 1/8" to 1", suitable for different pipe diameters.
● High Pressure Capacity: Able to withstand working pressures up to 3000 PSI to 6000 PSI, suitable for high-pressure gas and liquid media.
● Double Joint Design: Unique double joint structure to enhance the stability and safety of the connection.
● Material: High-strength, corrosion-resistant materials are selected for various harsh environments.
● Wide application: Suitable for high-pressure fluid control occasions such as petroleum, chemical, natural gas, hydraulic systems, etc.
● Safe and reliable: The double joint design reduces the risk of leakage and ensures safe operation.
● Easy to install: Quick connection and disassembly, simplifying the installation and maintenance process.
● Strong durability: high-quality materials ensure long-term stable operation under high-pressure environment.
● Fluid compatibility: suitable for a variety of gas and liquid media.
Dimension
Connection | Ordering number |
Orifice (mm) |
Cv | Size(mm) | |||||
Inlet/outlet | Size | A | B | C | D | E | |||
Metric tube |
6mm | HY-HP2BVFT-6M | 10 | 1.2 | 45.5 | 90.4 | 44 | 130 | 32 |
8mm | HY-HP2BVFT-8M | 2.7 | 46.1 | 92.2 | 44 | 130 | 32 | ||
10mm | HY-HP2BVFT-10M | 4.8 | 47.1 | 94.2 | 44 | 130 | 32 | ||
12mm | HY-HP2BVFT-12M | 7.5 | 49.5 | 99 | 44 | 130 | 32 | ||
14mm | HY-HP2BVFT-14M | 7.5 | 49.5 | 99 | 44 | 130 | 32 | ||
16mm | HY-HP2BVFT-16M | 14 | 10 | 54 | 108 | 48 | 145 | 41 | |
18mm | HY-HP2BVFT-18M | 10 | 54.1 | 108.2 | 48 | 145 | 41 | ||
20mm | HY-HP2BVFT-20M | 19 | 19 | 59.5 | 119 | 53 | 160 | 50 | |
22mm | HY-HP2BVFT-22M | 19 | 59.5 | 119 | 53 | 160 | 50 | ||
25mm | HY-HP2BVFT-25M | 30 | 64 | 128 | 53 | 160 | 50 | ||
Inch tube | 1/4” | HY-HP2BVFT-1/4 | 10 | 1.2 | 45.3 | 90.6 | 44 | 130 | 32 |
3/8” | HY-HP2BVFT-3/8 | 10 | 3.7 | 46.8 | 93.6 | 44 | 130 | 32 | |
1/2” | HY-HP2BVFT-1/2 | 10 | 7.5 | 49.4 | 98.8 | 44 | 130 | 32 | |
5/8” | HY-HP2BVFT-5/8 | 14 | 10 | 53.8 | 107.6 | 48 | 145 | 41 | |
3/4” | HY-HP2BVFT-3/4 | 14 | 10 | 53.8 | 107.6 | 48 | 145 | 41 | |
3/4” | HY-HP2BVFT-3/4 | 19 | 19 | 59.4 | 118.8 | 53 | 160 | 50 | |
1” | HY-HP2BVFT-1 | 19 | 30 | 63.9 | 127.8 | 53 | 160 | 50 | |
Female NPT |
1/4” | HY-HP2BV-1/4 | 10 | 7.5 | 36 | 72 | 44 | 130 | 32 |
3/8" | HY-HP2BV-3/8 | 10 | 7.5 | 36.7 | 73.4 | 44 | 130 | 32 | |
1/2” | HY-HP2BV-1/2 | 10 | 7.5 | 41.5 | 83 | 44 | 130 | 32 | |
1/2” | HY-HP2BV1-1/2 | 14 | 10 | 47.5 | 95 | 48 | 145 | 41 | |
3/4" | HY-HP2BV-3/4 | 14 | 10 | 47.5 | 95 | 48 | 145 | 41 | |
3/4" | HY-HP2BV1-3/4 | 19 | 30 | 48.1 | 96.2 | 53 | 160 | 50 | |
1” | HY-HP2BV-1 | 19 | 30 | 52.9 | 105.8 | 53 | 160 | 50 | |
Male NPT | 1/4" | HY-MHP2BV-1/4 | 10 | 3.7 | 41.7 | 83.4 | 44 | 130 | 32 |
3/8" | HY-MHP2BV-3/8 | 10 | 7.2 | 41.7 | 83.4 | 44 | 130 | 32 | |
1/2” | HY-MHP2BV-1/2 | 10 | 7.5 | 46.5 | 93 | 44 | 130 | 32 | |
1/2” | HY-MHP2BV1-1/2 | 14 | 10 | 51 | 102 | 48 | 145 | 41 | |
3/4" | HY-MHP2BV-3/4 | 14 | 10 | 51 | 102 | 48 | 145 | 41 | |
3/4" | HY-MHP2BV1-3/4 | 19 | 19 | 56.5 | 113 | 53 | 160 | 50 | |
1” | HY-MHP2BV-1 | 19 | 30 | 61.4 | 122.8 | 53 | 160 | 50 |
Main Parts
No. | Part Name | Material |
1 | Handle | Plastic |
2 | Stem Nut | 316/304 |
3 | Stem | 304 |
4 | Body | 316/304 |
5 | Ball | 316/304 |
6 | Ball Seat | PTFE |
7 | Stem Packing | PTFE |
