Product details of the ball valve supplier
Product Information
HuiYi Valve ball valve supplier is designed using sophisticated tools & equipment with the help of our team of talented craftsmen. The product has the advantage of long service life. The product can create a large profit margin for customers.
PRODUCT DETAILS
Product Overview

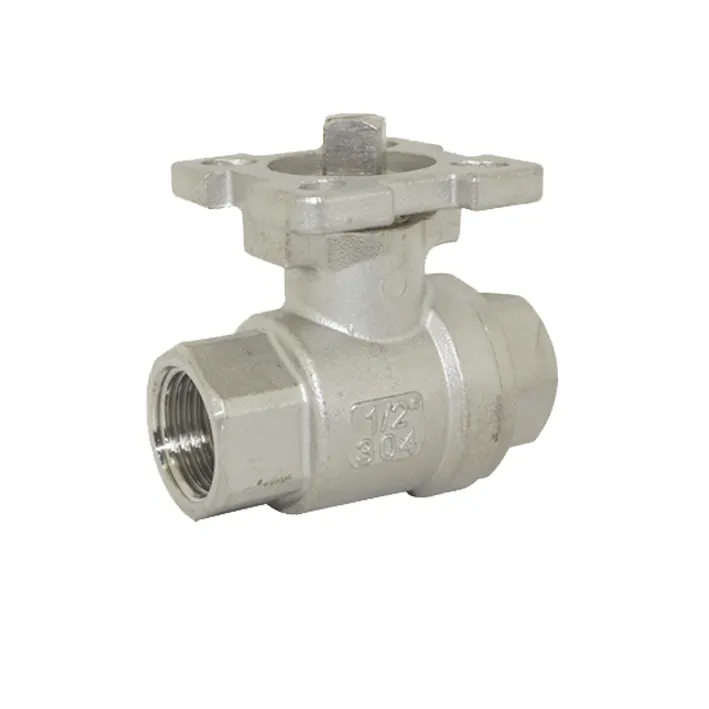

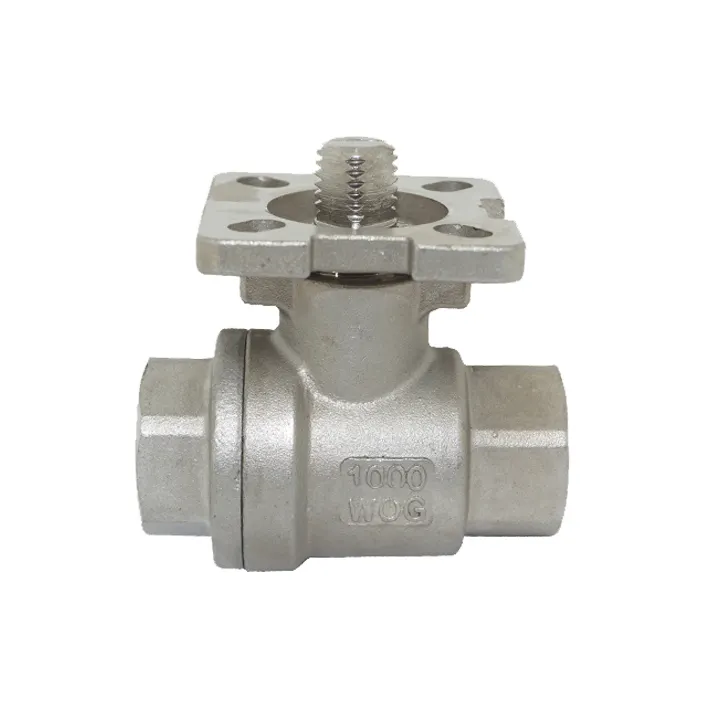

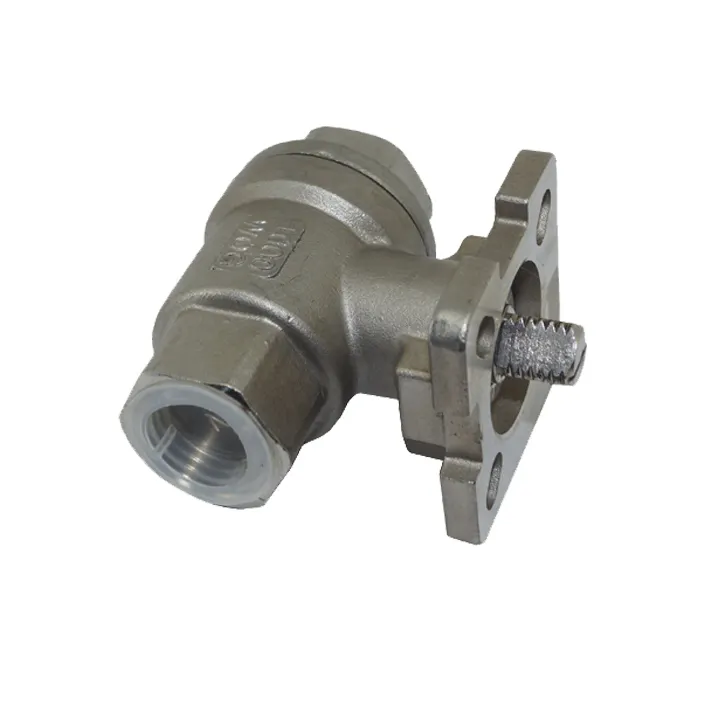

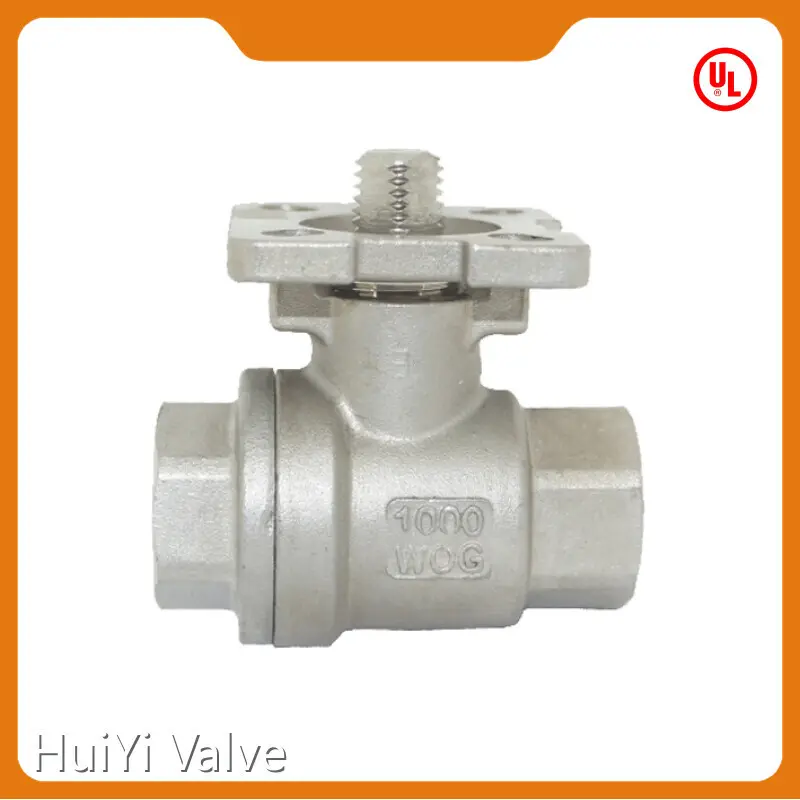

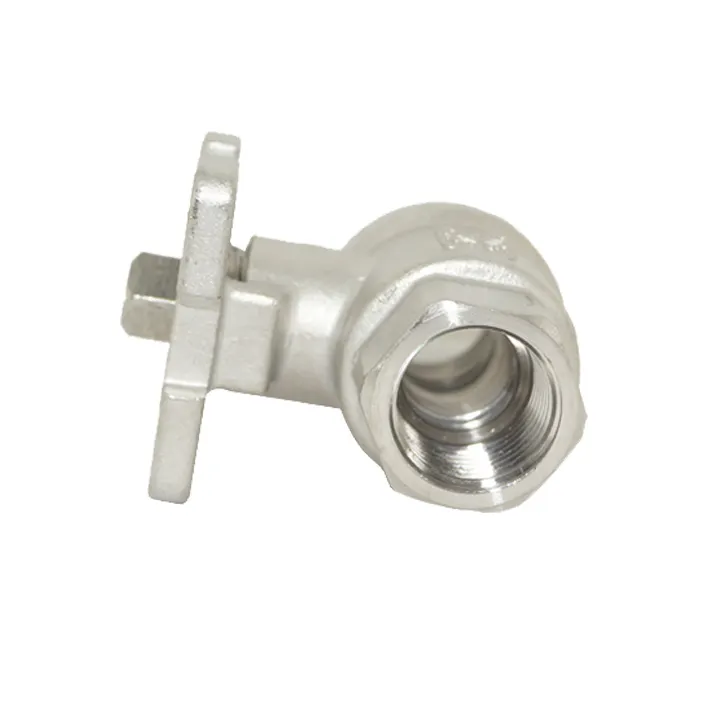

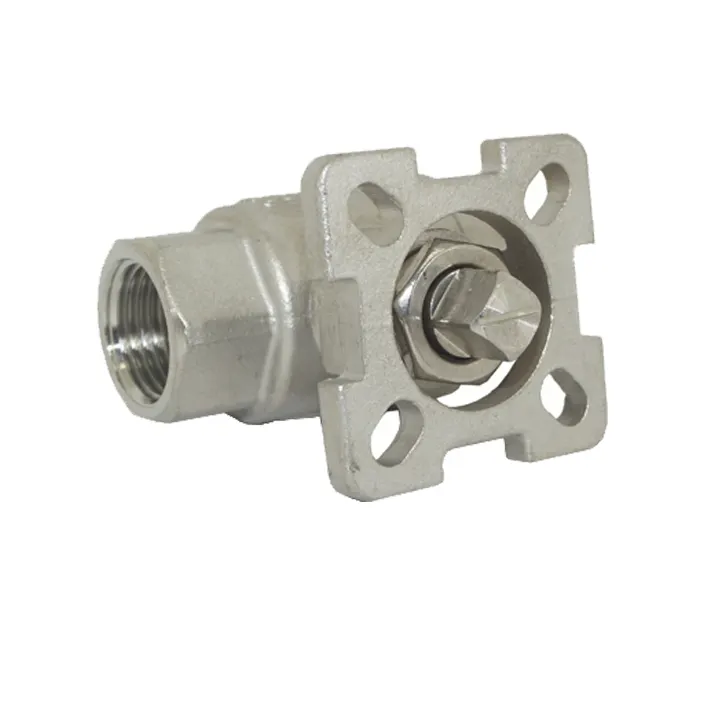

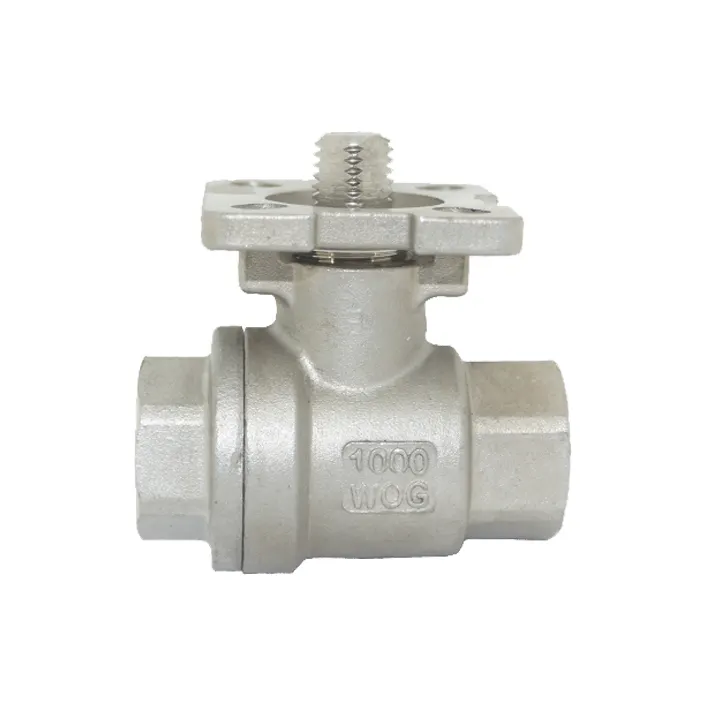

HY 2pc female threaded ball valve with ISO mounting pad is a high-performance industrial valve with a two-piece design for easy maintenance and replacement. Made of stainless steel, this ball valve has good corrosion resistance and is suitable for a variety of fluid control applications. Its female thread connection ensures a quick and secure installation, while the ISO standard mounting pad provides compatibility with a variety of piping systems. Suitable for chemical, petroleum, water treatment and other fields, it is the preferred product for engineering projects that pursue reliability and efficiency.
Dimension
Size | A | D | H | L |
1/2” | 133 | 15 | 62 | 63 |
3/4” | 133 | 20 | 67 | 76 |
1” | 133 | 25 | 76.5 | 90 |
1-1/4” | 133 | 32 | 80.5 | 100 |
1-1/2” | 150 | 38 | 98 | 125 |
2” | 150 | 50 | 107 | 136 |
2-1/2” | 186 | 65 | 123 | 162 |
3” | 186 | 76 | 133 | 188 |
Main Parts
No. | Part Name | Material |
1 | Bolt | 304 |
2 | Cover | 304 |
3 | Adjustable | 304 |
4 | Gland | 304 |
5 | Stem Packing | PTFE |
6 | Bonnet | CF8/CF8M |
7 | Ball | CF8/CF8M |
8 | Ball Seat | PTFE |
9 | Body Seal | PTFE |
10 | Body | CF8/CF8M |
11 | Stem | 304 |
12 | Thrust Washer | PTFE |
13 | O-ring | NBR/VITON |
14 | Locking Device | 304 |
15 | Handle | 304 |
PRODUCT FAQ
Company Feature
• Established in HuiYi Valve has been continuously launching competitive products during the rapid development for years. Now we become a leader in the industry.
• Our products are sold in many cities and regions at home and abroad. While creating profits for our company, they have also expanded the market in many regions, and won a lot of praise from consumers.
• HuiYi Valve has built a professional marketing team, which provides a solid backing for opening up the markets both at home and abroad.
Dear customer, thanks for visiting! If you have any comments or suggestions on HuiYi Valve's please contact us. Your valuable suggestions contribute to the constant development.
