Product details of the ball valve supplier

Quick Overview

The production technology of HuiYi Valve ball valve supplier is greatly optimized. The product has been recognized with ISO 9001 certification. The ball valve supplier produced by our company can be used in many fields. HuiYi Valve's outstanding business team upholds a customer-oriented attitude and carefully listens to customers' needs.

Product Information

With a focus on quality, HuiYi Valve pays great attention to the details of ball valve supplier.

Product details

Product Overview

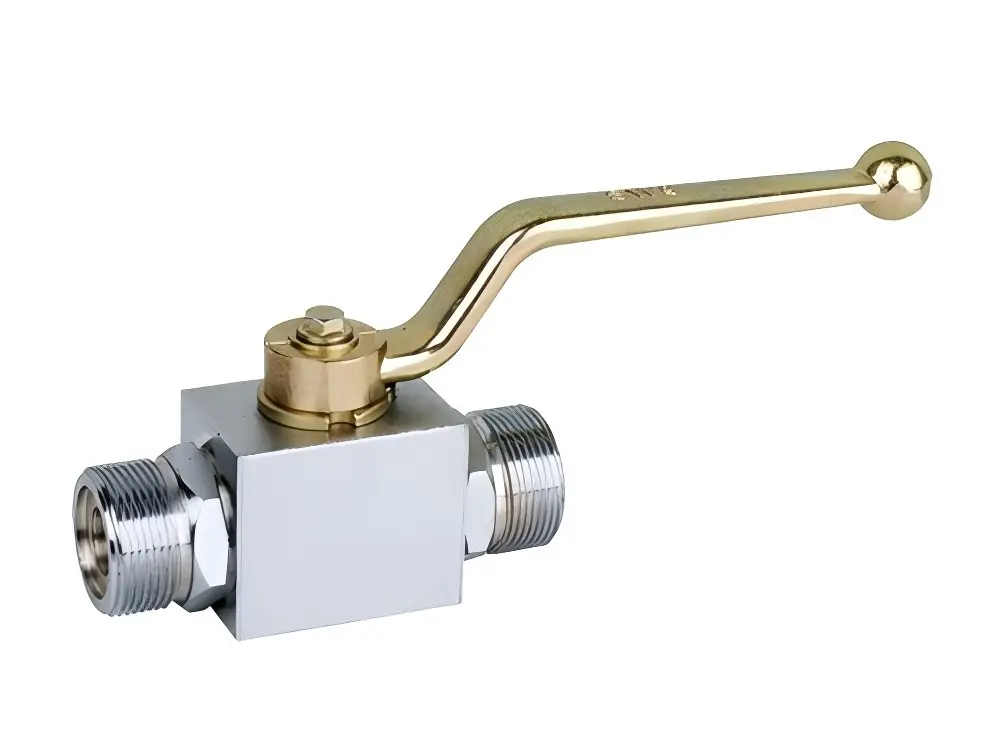

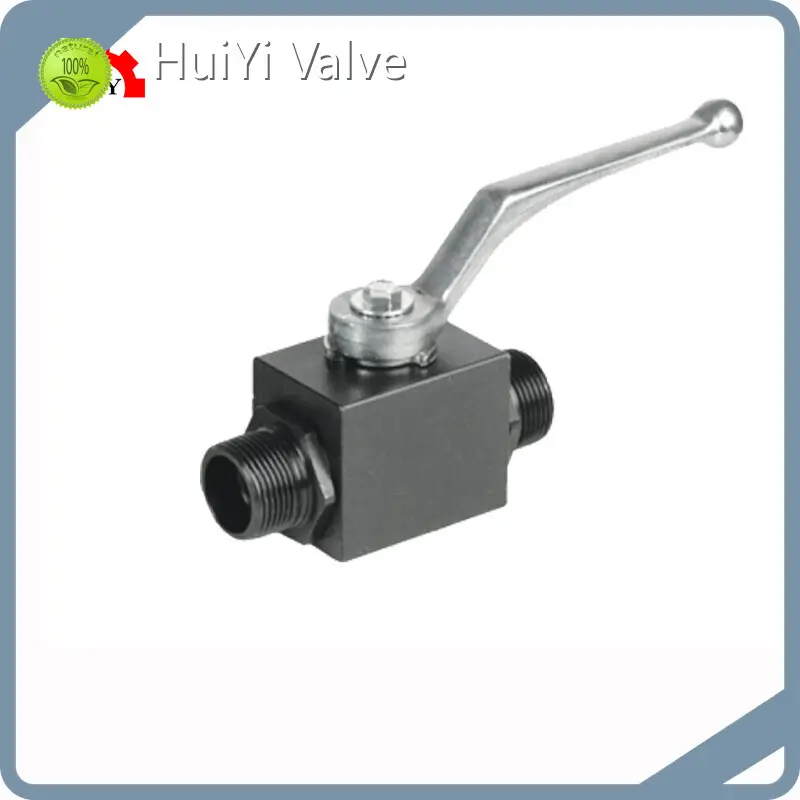

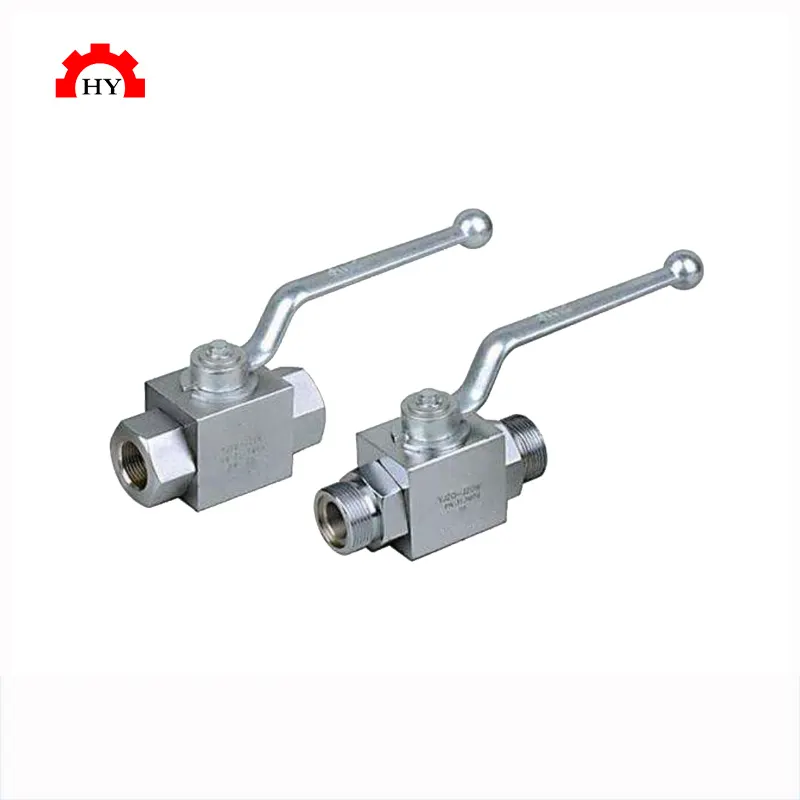

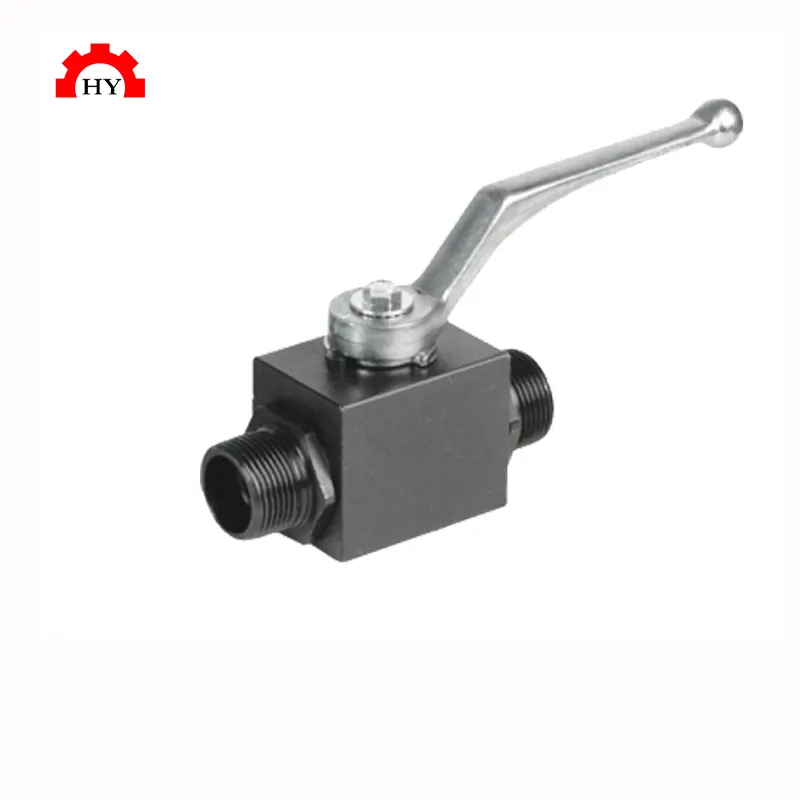

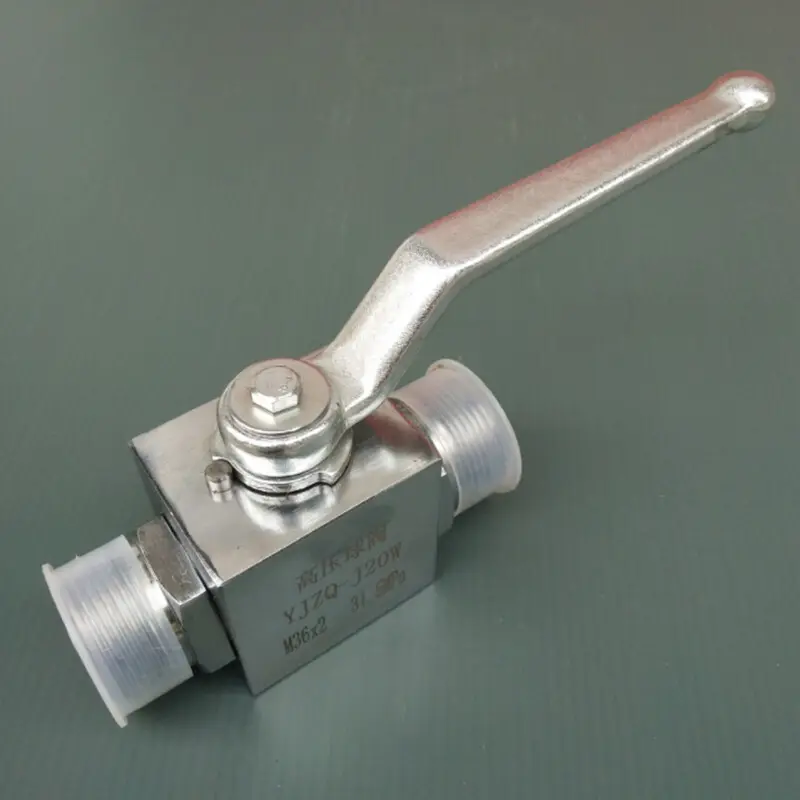

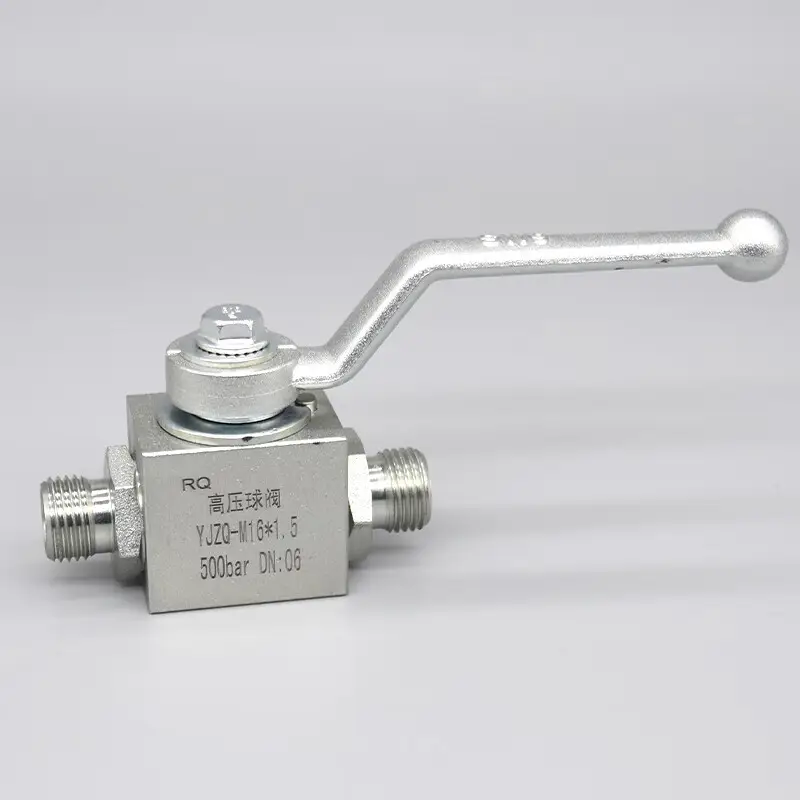

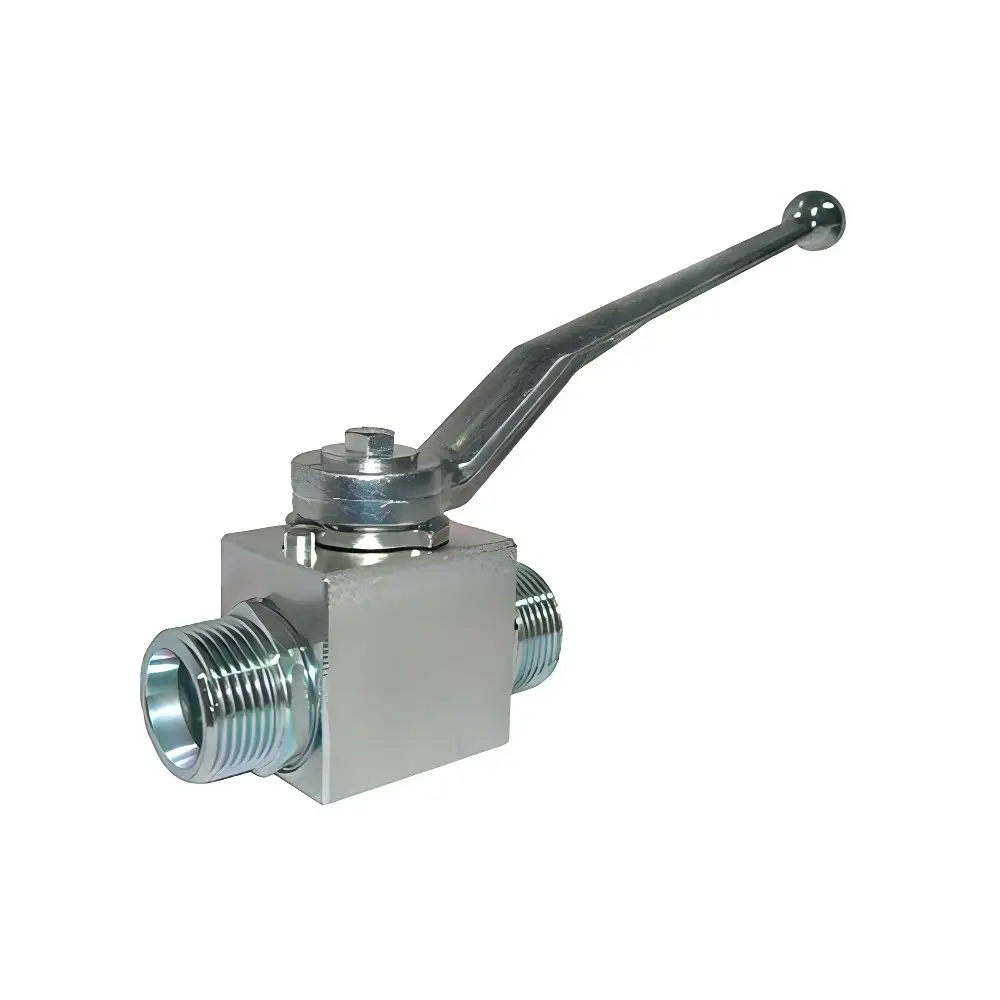

HY brand 2-Way 1/4"-2" 3000 PSI 6000 PSI male thread hydraulic ball valve is a high-performance valve designed for high-pressure fluid pipelines. This ball valve stands out in the field of industrial fluid control with its precise flow control and reliable sealing performance.

Product Features

● Size range: Provide a variety of sizes from 1/4" to 2" to meet different pipeline needs.

● High pressure bearing: Able to withstand working pressures up to 3000 PSI to 6000 PSI, suitable for high-pressure environments.

● Male thread connection: The male thread design is adopted for easy and quick installation and disassembly.

● Two-way control: 2-way valve design to achieve forward and reverse flow control of the medium.

● Material: Selected high-pressure and wear-resistant materials to ensure long-term stable operation.

● Wide application: Suitable for high-pressure fluid pipelines such as petroleum, chemical, and hydraulic systems.

Advantages

● Durability: Sturdy structure, high pressure resistance, suitable for continuous working environment.

● Easy operation: Compact design and clear switch indication make operation more convenient.

● Strong sealing: Precise ball processing and seal design ensure leak-free operation.

● Low maintenance cost: Strong durability, reducing the frequency of repairs and replacements.

Dimension

Connection		Ordering number	Orifice (mm)	Cv	Size(mm)
Inlet/outlet	Size				A	B	C	D	E
Metric tube	6mm	HY-HP2BVFT-6M	10	1.2	45.5	90.4	44	130	32
	8mm	HY-HP2BVFT-8M		2.7	46.1	92.2	44	130	32
	10mm	HY-HP2BVFT-10M		4.8	47.1	94.2	44	130	32
	12mm	HY-HP2BVFT-12M		7.5	49.5	99	44	130	32
	14mm	HY-HP2BVFT-14M		7.5	49.5	99	44	130	32
	16mm	HY-HP2BVFT-16M	14	10	54	108	48	145	41
	18mm	HY-HP2BVFT-18M		10	54.1	108.2	48	145	41
	20mm	HY-HP2BVFT-20M	19	19	59.5	119	53	160	50
	22mm	HY-HP2BVFT-22M		19	59.5	119	53	160	50
	25mm	HY-HP2BVFT-25M		30	64	128	53	160	50
Inch tube	1/4”	HY-HP2BVFT-1/4	10	1.2	45.3	90.6	44	130	32
	3/8”	HY-HP2BVFT-3/8	10	3.7	46.8	93.6	44	130	32
	1/2”	HY-HP2BVFT-1/2	10	7.5	49.4	98.8	44	130	32
	5/8”	HY-HP2BVFT-5/8	14	10	53.8	107.6	48	145	41
	3/4”	HY-HP2BVFT-3/4	14	10	53.8	107.6	48	145	41
	3/4”	HY-HP2BVFT-3/4	19	19	59.4	118.8	53	160	50
	1”	HY-HP2BVFT-1	19	30	63.9	127.8	53	160	50
Female NPT	1/4”	HY-HP2BV-1/4	10	7.5	36	72	44	130	32
	3/8"	HY-HP2BV-3/8	10	7.5	36.7	73.4	44	130	32
	1/2”	HY-HP2BV-1/2	10	7.5	41.5	83	44	130	32
	1/2”	HY-HP2BV1-1/2	14	10	47.5	95	48	145	41
	3/4"	HY-HP2BV-3/4	14	10	47.5	95	48	145	41
	3/4"	HY-HP2BV1-3/4	19	30	48.1	96.2	53	160	50
	1”	HY-HP2BV-1	19	30	52.9	105.8	53	160	50
Male NPT	1/4"	HY-MHP2BV-1/4	10	3.7	41.7	83.4	44	130	32
	3/8"	HY-MHP2BV-3/8	10	7.2	41.7	83.4	44	130	32
	1/2”	HY-MHP2BV-1/2	10	7.5	46.5	93	44	130	32
	1/2”	HY-MHP2BV1-1/2	14	10	51	102	48	145	41
	3/4"	HY-MHP2BV-3/4	14	10	51	102	48	145	41
	3/4"	HY-MHP2BV1-3/4	19	19	56.5	113	53	160	50
	1”	HY-MHP2BV-1	19	30	61.4	122.8	53	160	50

Main Parts

No.	Part Name	Material
1	Handle	Plastic
2	Stem Nut	316/304
3	Stem	304
4	Body	316/304
5	Ball	316/304
6	Ball Seat	PTFE
7	Stem Packing	PTFE



FAQ

1

How many is the MOQ ?

10 pcs

2

How long is the delivery time ?

It depends on the quantity Small quantity order , 7-15 days Mass quantity order , 20-30 days

3

What is the payment term ?

30% T/T before production, the balance before shipment 50% T/T before production , the balance is paid after customers see the copy of sea B/L 100% L/C at sight For other payment terms , we can discuss

4

What payment method you have ?

We can accept payment via paypal , western union , T/T , L/C

5

How long is the guarantee period ?

The guarantee period is 12 months after the goods arrive in customers’ company , or 18 months after the goods are shipped from our company

6

If there is quality problem , then how can you solve it ?

During the guarantee period , if there are quality problems , please contact us , we will take positive action , the solution is that , if we can repair , then we repair , if we can not repair , then we will send new items to customers to replace unqualified items , customers do not need to send us the unqualified items .

7

Do you have OEM/ODM service ?

Yes, we have OEM/ODM service , we can put your logo on our products by laser marking .

8

How can we know your product quality ?

At first , we can send you free samples , you check our quality , then you can place small order to check the quality again , if the quality is ok , then you place bulk order .

9

For the customized products , how can you make sure the quality ?

We will make samples as per your drawing or sample first , after get your approval , then we start to arrange mass production .

10

What is the shipping method ?

Small quantity products usually are shipped by international express or air logistic , if large quantity , we will ship them by sea .
