Company Advantages

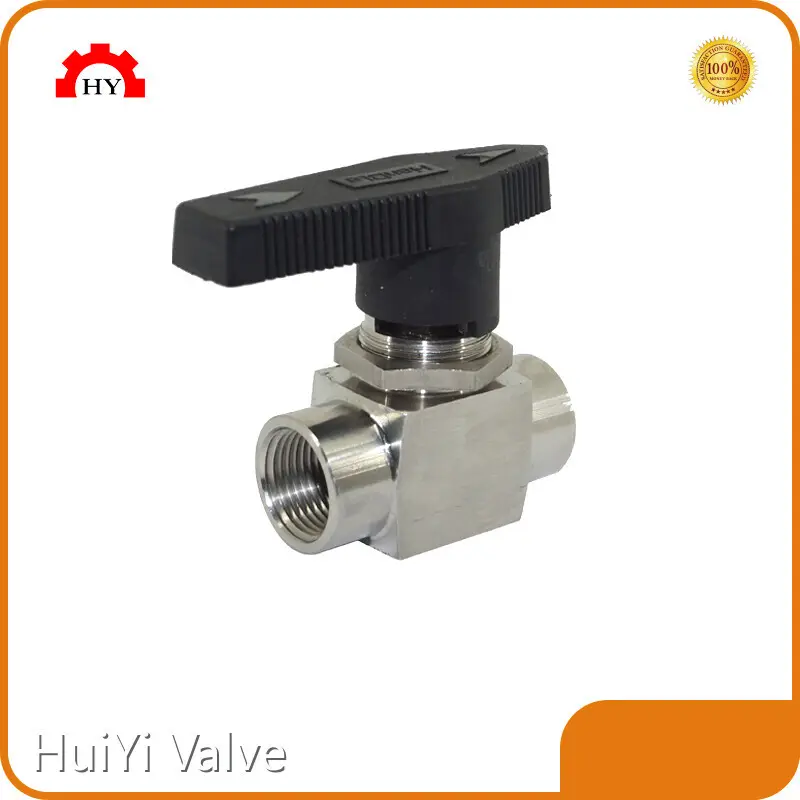

· HuiYi Valve ball valve for pressure gauge is manufactured using innovative tools and equipment as per the latest market trends & styles.
· Superior performance and long service life make the product competitive.
· HuiYi Valve is well known as a reliable company which provides professional service.
Dimension
Connection |
Ordering Number |
Orifice (mm) |
Cv |
Size (mm) |
||||||||||
Inlet/Outlet |
Size |
Straight |
Angle |
A |
B |
C |
D |
E |
F |
G |
H |
I |
||
Female NPT |
1/8” |
Q11SAF-1/8 |
2.6 |
0.25 |
0.15 |
20.6 |
41.2 |
37.3 |
30.0 |
7.5 |
8.6 |
4.4 |
15.1 |
19.9 |
Q11SAF1-1/8 |
4.2 |
1.2 |
0.7 |
23.1 |
46.2 |
41.6 |
40.0 |
9.7 |
11.2 |
4.8 |
19.8 |
20.2 |
||
1/4” |
Q11SAF-1/4 |
4.2 |
0.9 |
0.75 |
24.5 |
49.0 |
41.6 |
40.0 |
9.7 |
11.2 |
4.8 |
19.8 |
22.2 |
|
Q11SAF1-1/4 |
7.0 |
3.0 |
1.7 |
31.8 |
63.6 |
52.6 |
50.8 |
14.2 |
14.2 |
9.7 |
28.6 |
31.2 |
||
3/8” |
Q11SAF-3/8 |
7.0 |
2.6 |
1.5 |
31.8 |
63.6 |
52.6 |
50.8 |
14.2 |
14.2 |
9.7 |
28.6 |
31.2 |
|
1/2” |
Q11SAF1-1/2 |
10.0 |
6.3 |
3.5 |
49.8 |
99.6 |
61.7 |
76.2 |
17.5 |
17.5 |
9.7 |
38.1 |
39.6 |
|
Male NPT |
1/4” |
Q11SAF-1/4 |
4.0 |
1.2 |
0.75 |
25.5 |
51.0 |
41.6 |
40.0 |
9.7 |
11.2 |
4.8 |
19.8 |
22.2 |
Product details
Main Parts
No. |
Part Name |
Material |
1 |
Handle |
Plastic |
2 |
Stem Nut |
316/304 |
3 |
Stem |
304 |
4 |
Body |
316/304 |
5 |
Ball |
316/304 |
6 |
Ball Seat |
PTFE |
7 |
Stem Packing |
PTFE |
Company Features
· Wenzhou Huiyi Valve Technology Co.,Ltd is globally competitive in the ball valve for pressure gauge industry.
· Over the years, we have been honored with different titles. They are 'China Credible Enterprise', 'Complaint-free Enterprise', and 'High-Integrity Enterprise'. These honors demonstrate our overall comprehensive strength. At present, we have established a broad marketing channel around the world. This enlarges our presence in the foreign markets. We have expanded our product ranges to more target customers all over the globe.
· Wenzhou Huiyi Valve Technology Co.,Ltd will make the best efforts to solve all problems for customers. Contact!
Product Details
HuiYi Valve pursues excellent quality and strives for perfection in every detail during the production.
