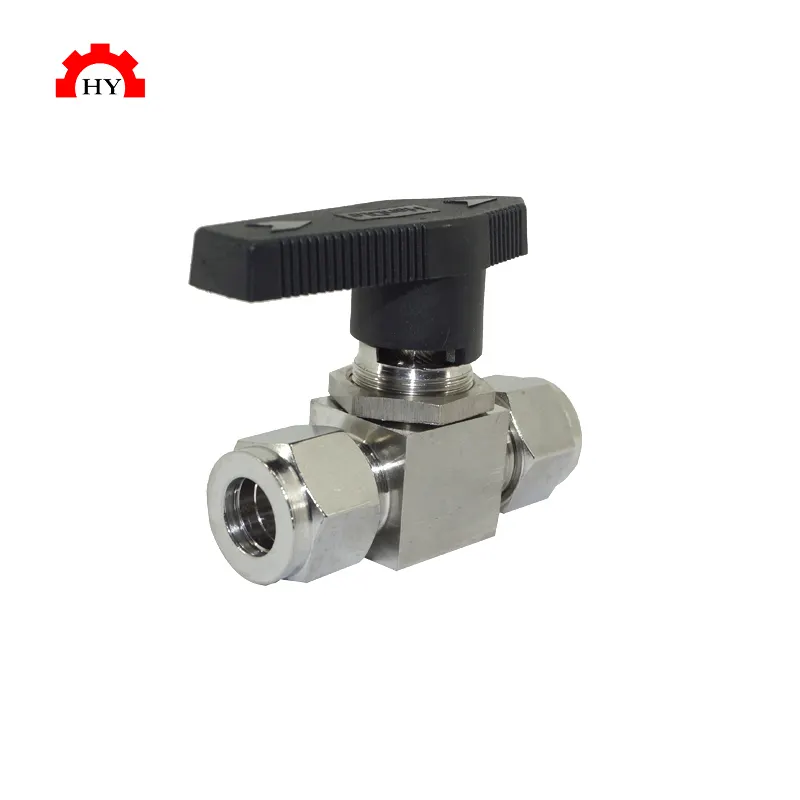

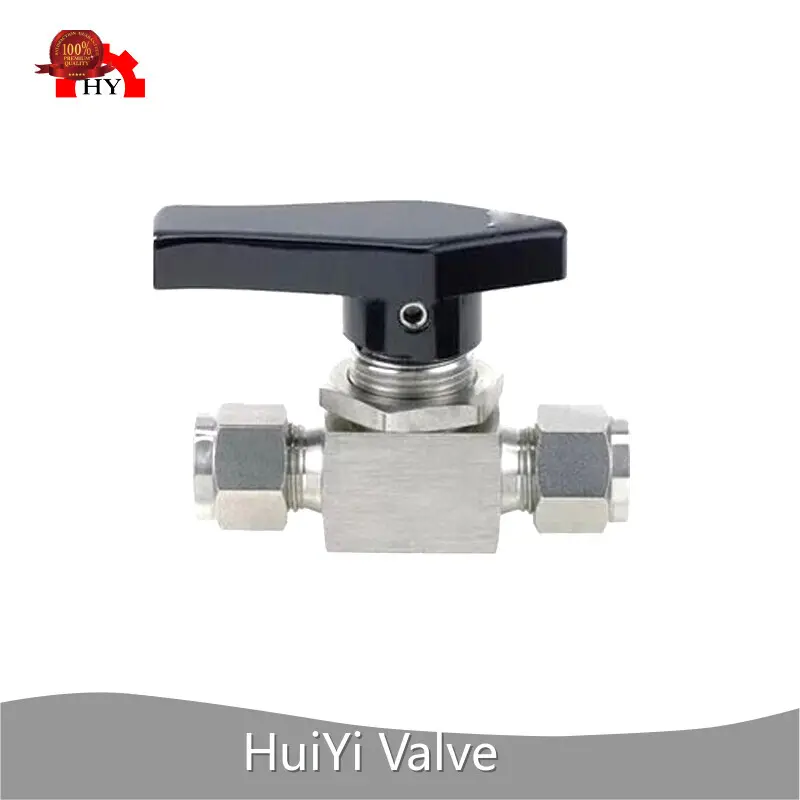

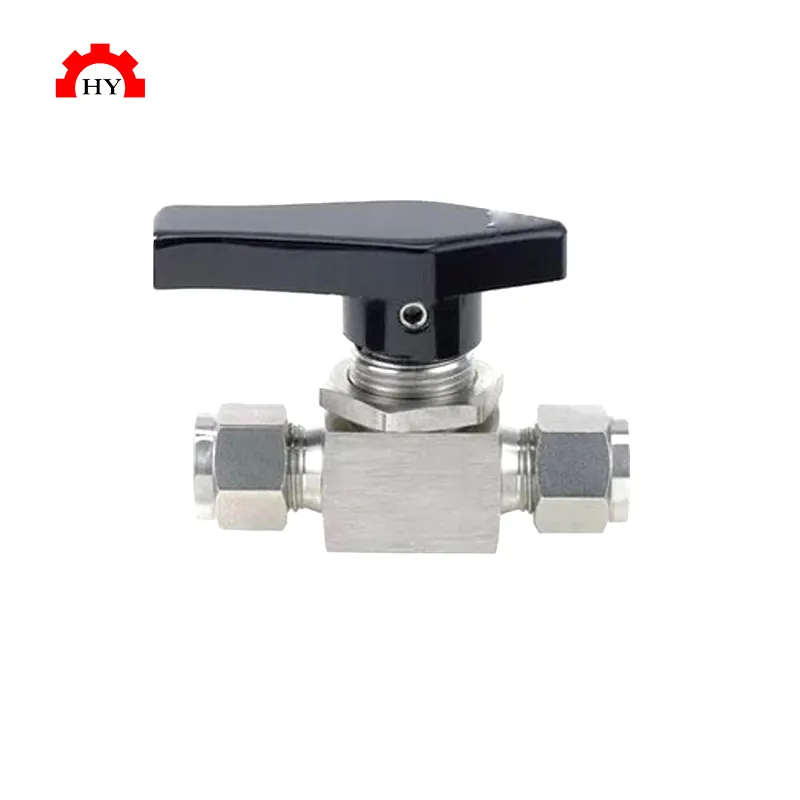

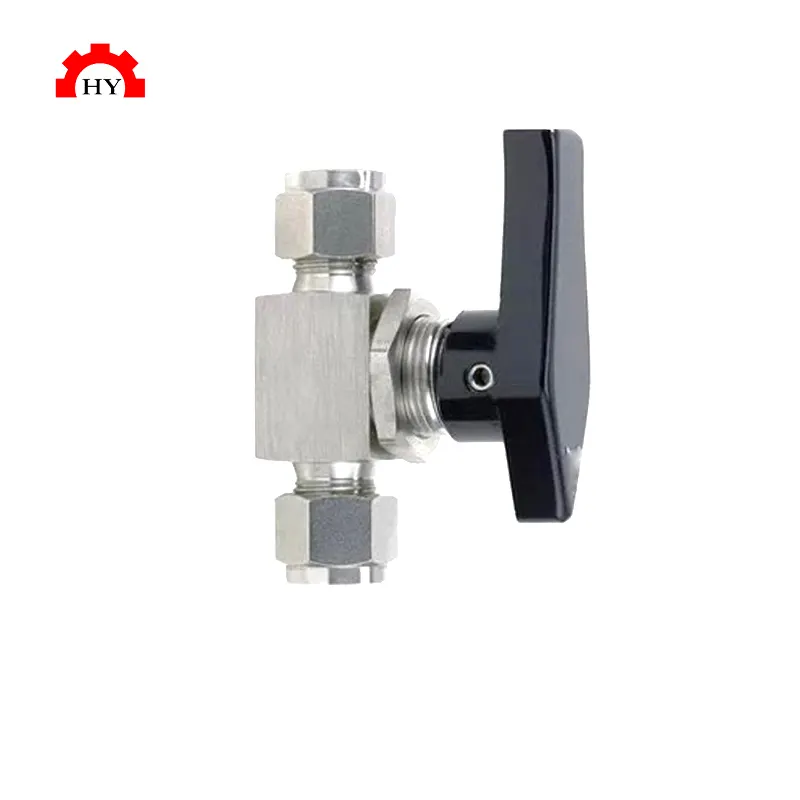

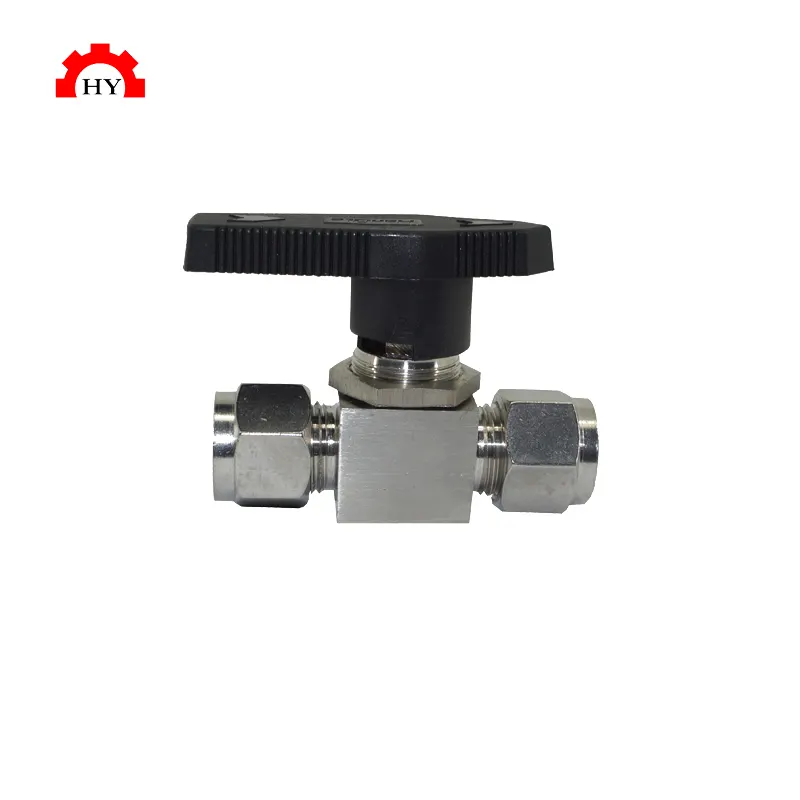

Ball Valve for Pressure Gauge Inner Case Is Carton by HuiYi Valve
Company Advantages
· The modernized production mode accelerates HuiYi Valve ball valve for pressure gauge production process.
· Our products are widely used in the industry of ball valve for pressure gauge.
· Wenzhou Huiyi Valve Technology Co.,Ltd has complete quality guarantee system and wins the trust of customers.
Product Description
Ball valves are suitable for controlling the opening and closing devices of medium and small diameter pipelines under various pressures, temperatures, and media to connect or cut off pipeline media; By relying on the medium pressure to press the ball onto the outlet valve seat, its usage pressure and diameter are limited to a certain extent. It adopts a 90 degree drive, making it convenient and fast to switch, and can be quickly opened and closed.

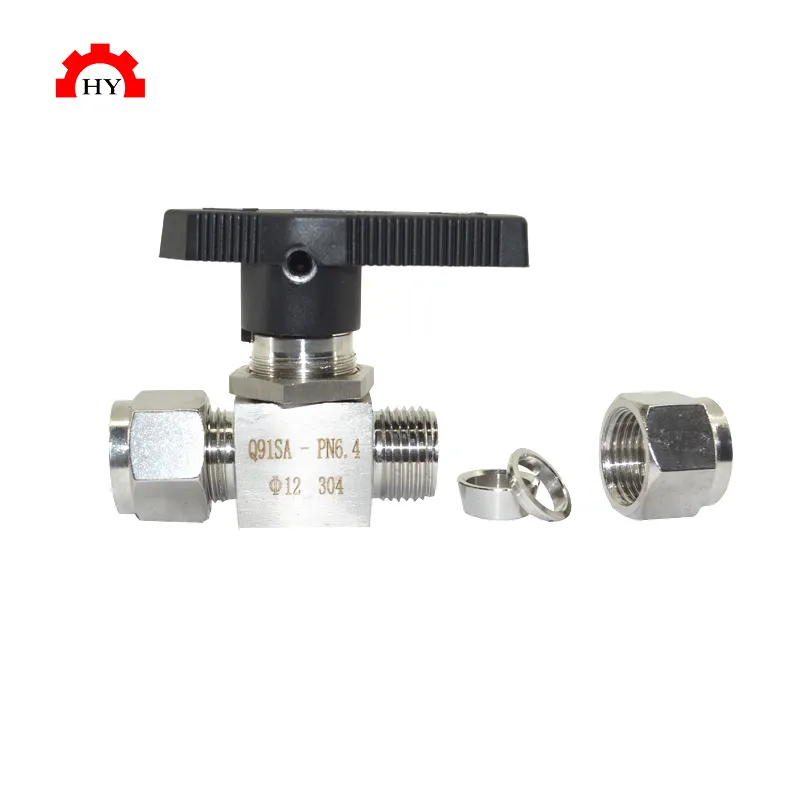

The working principle of the ferrule joint is to insert the steel pipe into the ferrule, lock it with the ferrule nut, resist the ferrule, and cut into the pipe to seal.
It does not need to be welded when it is connected with steel pipes, which is beneficial to fireproof, explosion-proof and high-altitude operations, and can eliminate the disadvantages caused by inadvertent welding.
Therefore, it is a relatively advanced connecting piece in the pipeline of automatic control systems such as refining, chemical, petroleum, natural gas, food, pharmaceutical, instrumentation and the like.
Suitable for pipeline connection of oil, gas and water.
Dimension
|
Connection |
Ordering Number |
Orifice (mm) |
Cv |
Size (mm) |
||||||||||
|
Inlet/Outlet |
Size |
Straight |
Angle |
A |
B |
C |
D |
E |
F |
G |
H |
I |
||
|
Inch tube |
1/16” |
Q91SAF-1/16 |
1.3 |
0.1 |
0.08 |
20.8 |
41.6 |
37.3 |
30.0 |
7.5 |
8.6 |
4.4 |
15.1 |
20.0 |
|
1/8” |
Q91SAF-1/8 |
2.6 |
0.3 |
0.2 |
25.7 |
51.4 |
37.3 |
30.0 |
7.5 |
8.6 |
4.4 |
15.1 |
24.8 |
|
|
1/4” |
Q91SAF-1/4 |
2.6 |
0.3 |
0.2 |
28.1 |
56.2 |
37.3 |
30.0 |
7.5 |
8.6 |
4.4 |
15.1 |
27.3 |
|
|
Q91SAF1-1/4 |
4.2 |
1.4 |
0.9 |
30.5 |
61.0 |
41.6 |
40.0 |
9.7 |
11.2 |
4.8 |
19.8 |
27.6 |
||
|
3/8” |
Q91SAF-3/8 |
4.2 |
1.5 |
0.9 |
32.0 |
64.0 |
41.6 |
40.0 |
9.7 |
11.2 |
4.8 |
19.8 |
29.1 |
|
|
Q91SAF1-3/8 |
7.0 |
6.0 |
2.0 |
38.6 |
77.2 |
52.6 |
50.8 |
14.2 |
14.2 |
9.7 |
28.6 |
36.3 |
||
|
1/2” |
Q91SAF-1/2 |
10.0 |
12.0 |
4.6 |
49.8 |
99.6 |
61.7 |
76.2 |
17.5 |
17.5 |
9.7 |
38.1 |
44.2 |
|
|
3/4” |
Q91SAF-3/4 |
10.0 |
6.4 |
3.8 |
49.8 |
99.6 |
61.7 |
76.2 |
17.5 |
17.5 |
9.7 |
38.1 |
44.2 |
|
|
Metric tube |
3mm |
Q91SAF-3M |
2.6 |
0.3 |
0.2 |
25.5 |
51.0 |
37.3 |
30.0 |
7.5 |
8.6 |
4.4 |
15.1 |
24.7 |
|
6mm |
Q91SAF-6M |
2.6 |
0.3 |
0.2 |
28.0 |
56.0 |
37.3 |
30.0 |
7.5 |
8.6 |
4.4 |
15.1 |
27.2 |
|
|
Q91SAF1-6M |
4.2 |
1.4 |
0.9 |
30.5 |
61.0 |
41.6 |
40.0 |
9.7 |
11.2 |
4.8 |
19.8 |
27.5 |
||
|
8mm |
Q91SAF-8M |
4.2 |
1.5 |
0.9 |
31.2 |
62.4 |
41.6 |
40.0 |
9.7 |
11.2 |
4.8 |
19.8 |
28.4 |
|
|
10mm |
Q91SAF-10M |
4.2 |
1.6 |
0.9 |
32.2 |
64.4 |
41.6 |
40.0 |
9.7 |
11.2 |
4.8 |
19.8 |
29.4 |
|
|
Q91SAF1-10M |
7.0 |
6.0 |
2.0 |
38.9 |
77.8 |
52.6 |
50.8 |
14.2 |
14.2 |
9.7 |
28.6 |
36.3 |
||
|
12mm |
Q91SAF-12M |
10.0 |
12.0 |
4.6 |
49.8 |
99.6 |
61.7 |
76.2 |
17.5 |
17.5 |
9.7 |
38.1 |
44.2 |
|
Product details
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Handle |
Plastic |
|
2 |
Stem Nut |
316/304 |
|
3 |
Stem |
304 |
|
4 |
Body |
316/304 |
|
5 |
Ball |
316/304 |
|
6 |
Ball Seat |
PTFE |
|
7 |
Stem Packing |
PTFE |
Company Features
· Wenzhou Huiyi Valve Technology Co.,Ltd stands out in the domestic market for the strong ability in ball valve for pressure gauge R&D, design, and manufacture.
· A large number of investment into the technical force in HuiYi Valve turns out to be efficient. HuiYi Valve has put a lot of effort into producing high quality ball valve for pressure gauge.
· Wenzhou Huiyi Valve Technology Co.,Ltd will improve the quality of service serve customers. Please contact.
Application of the Product
The ball valve for pressure gauge produced by our company can be applied to different fields and scenarios. So the different requirements of different people can be satisfied.
We work hard to develop solutions that best meet the needs of our customers based on their actual situation, so as to help each customer succeed.
