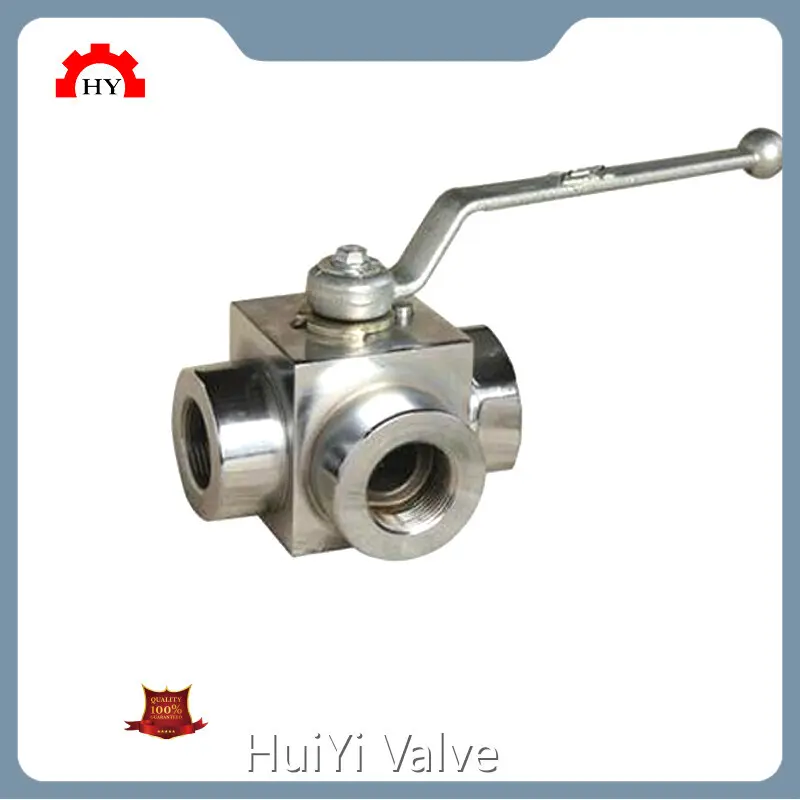

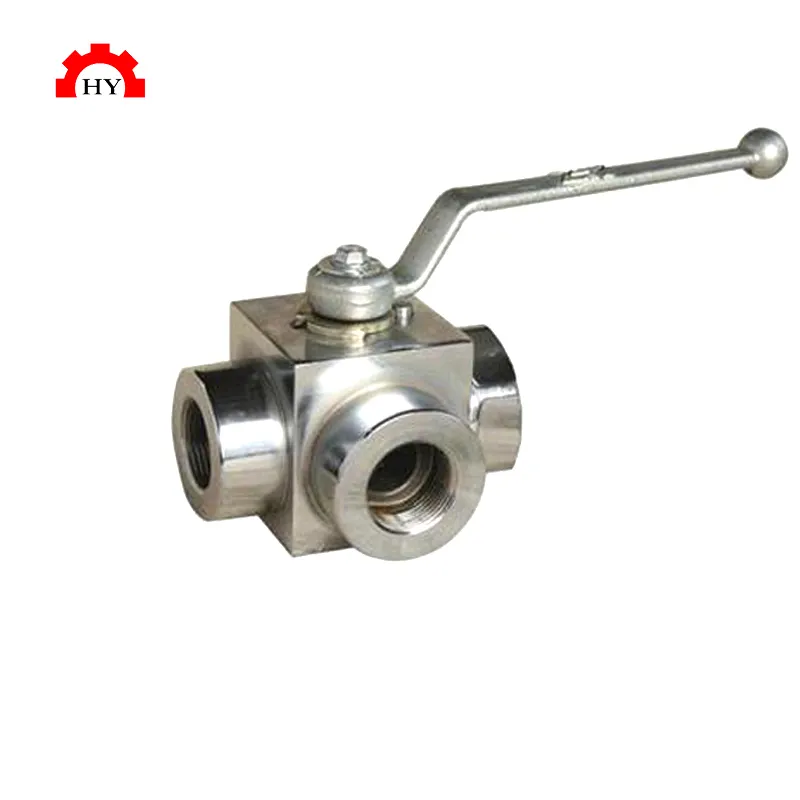

Ball Valve for Hydraulic System HY-HP3BVFT - - HuiYi Valve
Dimension
|
Connection |
Ordering number |
Orifice (mm) |
Cv |
Size(mm) |
||||||
|
Inlet/outlet |
Size |
A |
B |
C |
D |
E |
F |
|||
|
Metric tube |
6mm |
HY-HP3BVFT-6M |
10 |
1.2 |
45.2 |
90.4 |
44 |
130 |
32 |
49.7 |
|
8mm |
HY-HP3BVFT-8M |
|
2.7 |
46.1 |
92.2 |
44 |
130 |
32 |
50.6 |
|
|
10mm |
HY-HP3BVFT-10M |
|
4.8 |
47.1 |
94.2 |
44 |
130 |
32 |
51.6 |
|
|
12mm |
HY-HP3BVFT-12M |
|
7.5 |
49.5 |
99 |
44 |
130 |
32 |
54 |
|
|
14mm |
HY-HP3BVFT-14M |
|
7.5 |
49.5 |
99 |
44 |
130 |
32 |
54 |
|
|
16mm |
HY-HP3BVFT-16M |
14 |
10 |
54 |
108 |
48 |
145 |
41 |
60.5 |
|
|
18mm |
HY-HP3BVFT-18M |
|
10 |
54.1 |
108.2 |
48 |
145 |
41 |
60.5 |
|
|
20mm |
HY-HP3BVFT-20M |
19 |
19 |
59.5 |
119 |
53 |
160 |
50 |
70 |
|
|
22mm |
HY-HP3BVFT-22M |
|
19 |
59.5 |
119 |
53 |
160 |
50 |
70 |
|
|
25mm |
HY-HP3BVFT-25M |
|
30 |
64 |
128 |
53 |
160 |
50 |
74.5 |
|
|
Inch tube |
1/4” |
HY-HP3BVFT-1/4 |
10 |
1.2 |
45.3 |
90.6 |
44 |
130 |
32 |
49.8 |
|
3/8” |
HY-HP3BVFT-3/8 |
10 |
3.7 |
46.8 |
93.6 |
44 |
130 |
32 |
51.3 |
|
|
1/2” |
HY-HP3BVFT-1/2 |
10 |
7.5 |
49.4 |
98.8 |
44 |
130 |
32 |
53.9 |
|
|
5/8” |
HY-HP3BVFT-5/8 |
14 |
10 |
53.8 |
107.6 |
48 |
145 |
41 |
60.3 |
|
|
3/4” |
HY-HP3BVFT-3/4 |
14 |
10 |
53.8 |
107.6 |
48 |
145 |
41 |
60.3 |
|
|
3/4” |
HY-HP3BVFT-3/4 |
19 |
19 |
59.4 |
118.8 |
53 |
160 |
50 |
69.9 |
|
|
1” |
HY-HP3BVFT-1 |
19 |
30 |
63.9 |
127.8 |
53 |
160 |
50 |
74.4 |
|
|
Female NPT |
1/4” |
HY-HP3BV-1/4 |
10 |
7.5 |
36 |
72 |
44 |
130 |
32 |
40.5 |
|
3/8” |
HY-HP3BV-3/8 |
10 |
7.5 |
36.7 |
73.4 |
44 |
130 |
32 |
41.2 |
|
|
1/2” |
HY-HP3BV-1/2 |
10 |
7.5 |
41.5 |
83 |
44 |
130 |
32 |
46 |
|
|
1/2 |
HY-HP3BV-1/2 |
14 |
10 |
47.5 |
95 |
48 |
145 |
41 |
54 |
|
|
3/4” |
HY-HP3BV-3/4 |
14 |
10 |
47.5 |
95 |
48 |
145 |
41 |
54 |
|
|
3/4 |
HY-HP3BV-3/4 |
19 |
30 |
48.1 |
96.2 |
53 |
160 |
50 |
58.6 |
|
|
1” |
HY-HP3BV-1 |
19 |
30 |
52.9 |
105.8 |
53 |
160 |
50 |
63.4 |
|
|
Male NPT |
1/4” |
HY-HP3BVM-1/4 |
10 |
3.7 |
41.7 |
83.4 |
44 |
130 |
32 |
46.2 |
|
3/8” |
HY-HP3BVM-3/8 |
10 |
7.2 |
41.7 |
83.4 |
44 |
130 |
32 |
46.2 |
|
|
1/2” |
HY-HP3BVM-1/2 |
10 |
7.5 |
46.5 |
93 |
44 |
130 |
32 |
51 |
|
|
1/2” |
HY-HP3BVM1-1/2 |
14 |
10 |
51 |
102 |
48 |
145 |
41 |
57.5 |
|
|
3/4” |
HY-HP3BVM-3/4 |
14 |
10 |
51 |
102 |
48 |
145 |
41 |
57.5 |
|
|
3/4” |
HY-HP3BVM1-3/4 |
19 |
19 |
56.5 |
113 |
53 |
160 |
50 |
67 |
|
|
1” |
HY-HP3BVM-1 |
19 |
30 |
61.4 |
122.8 |
53 |
160 |
50 |
71.9 |
|
Product details
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Handle |
316/304 |
|
2 |
Stem Nut |
316/304 |
|
3 |
Stem |
304 |
|
4 |
Body |
316/304 |
|
5 |
Ball |
316/304 |
|
6 |
Ball Seat |
PTFE |
|
7 |
Stem Packing |
PTFE |
