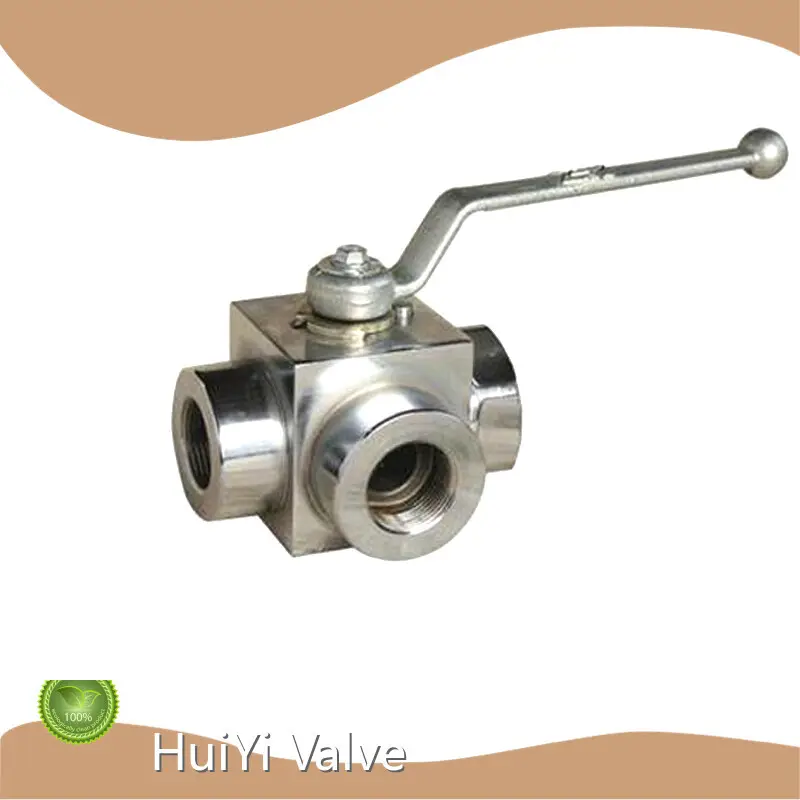

Ball Valve for Hydraulic System 1/4 to 2 - - HuiYi Valve 1

Ball Valve for Hydraulic System 1/4 to 2 - - HuiYi Valve 2

Ball Valve for Hydraulic System 1/4" to 2" - - HuiYi Valve

Size:

1/4" to 2"

Working Temperature:

Normal temperature

Packing:

Inner case is carton, outside package is plywood case

Stem:

F304 F316 F304L F316L

Test Standard:

API 598

Inquiry

more products

Valve

Pipe Fittings

Send your inquiry

Product details of the ball valve for hydraulic system

Quick Overview

With the assistance of skilled professionals, the production of HuiYi Valve ball valve for hydraulic system is carried out according to the principles of lean production. It is qualified with many international certification. Our ball valve for hydraulic system has a wide range of applications and can be used in a variety of situations and scenarios. This product has diversified specifications and is widely used in the industry.

Product Information

Compared with similar products, HuiYi Valve's ball valve for hydraulic system has the following advantages.

Dimension

Connection		Ordering number	Orifice (mm)	Cv	Size(mm)
Inlet/outlet	Size	Ordering number	Orifice (mm)	Cv	A	B	C	D	E	F
Metric tube	6mm	HY-HP3BVFT-6M	10	1.2	45.2	90.4	44	130	32	49.7
	8mm	HY-HP3BVFT-8M		2.7	46.1	92.2	44	130	32	50.6
	10mm	HY-HP3BVFT-10M		4.8	47.1	94.2	44	130	32	51.6
	12mm	HY-HP3BVFT-12M		7.5	49.5	99	44	130	32	54
	14mm	HY-HP3BVFT-14M		7.5	49.5	99	44	130	32	54
	16mm	HY-HP3BVFT-16M	14	10	54	108	48	145	41	60.5
	18mm	HY-HP3BVFT-18M		10	54.1	108.2	48	145	41	60.5
	20mm	HY-HP3BVFT-20M	19	19	59.5	119	53	160	50	70
	22mm	HY-HP3BVFT-22M		19	59.5	119	53	160	50	70
	25mm	HY-HP3BVFT-25M		30	64	128	53	160	50	74.5
Inch tube	1/4”	HY-HP3BVFT-1/4	10	1.2	45.3	90.6	44	130	32	49.8
	3/8”	HY-HP3BVFT-3/8	10	3.7	46.8	93.6	44	130	32	51.3
	1/2”	HY-HP3BVFT-1/2	10	7.5	49.4	98.8	44	130	32	53.9
	5/8”	HY-HP3BVFT-5/8	14	10	53.8	107.6	48	145	41	60.3
	3/4”	HY-HP3BVFT-3/4	14	10	53.8	107.6	48	145	41	60.3
	3/4”	HY-HP3BVFT-3/4	19	19	59.4	118.8	53	160	50	69.9
	1”	HY-HP3BVFT-1	19	30	63.9	127.8	53	160	50	74.4
Female NPT	1/4”	HY-HP3BV-1/4	10	7.5	36	72	44	130	32	40.5
	3/8”	HY-HP3BV-3/8	10	7.5	36.7	73.4	44	130	32	41.2
	1/2”	HY-HP3BV-1/2	10	7.5	41.5	83	44	130	32	46
	1/2	HY-HP3BV-1/2	14	10	47.5	95	48	145	41	54
	3/4”	HY-HP3BV-3/4	14	10	47.5	95	48	145	41	54
	3/4	HY-HP3BV-3/4	19	30	48.1	96.2	53	160	50	58.6
	1”	HY-HP3BV-1	19	30	52.9	105.8	53	160	50	63.4
Male NPT	1/4”	HY-HP3BVM-1/4	10	3.7	41.7	83.4	44	130	32	46.2
	3/8”	HY-HP3BVM-3/8	10	7.2	41.7	83.4	44	130	32	46.2
	1/2”	HY-HP3BVM-1/2	10	7.5	46.5	93	44	130	32	51
	1/2”	HY-HP3BVM1-1/2	14	10	51	102	48	145	41	57.5
	3/4”	HY-HP3BVM-3/4	14	10	51	102	48	145	41	57.5
	3/4”	HY-HP3BVM1-3/4	19	19	56.5	113	53	160	50	67
	1”	HY-HP3BVM-1	19	30	61.4	122.8	53	160	50	71.9

Product details

图片1 (15)

图片2 (14)

Main Parts

No.	Part Name	Material
1	Handle	316/304
2	Stem Nut	316/304
3	Stem	304
4	Body	316/304
5	Ball	316/304
6	Ball Seat	PTFE
7	Stem Packing	PTFE
