Ball Valve 1000 Wog 316 Water by HuiYi Valve
Product details of the ball valve 1000 wog 316
Product Introduction
HuiYi Valve ball valve 1000 wog 316 is manufactured employing the optimum quality raw material as per set industry guidelines. With the implementation of the improved quality inspection system, the product quality is guaranteed. Wenzhou Huiyi Valve Technology Co.,Ltd has years of R&D and production experience for ball valve 1000 wog 316.
Product Description

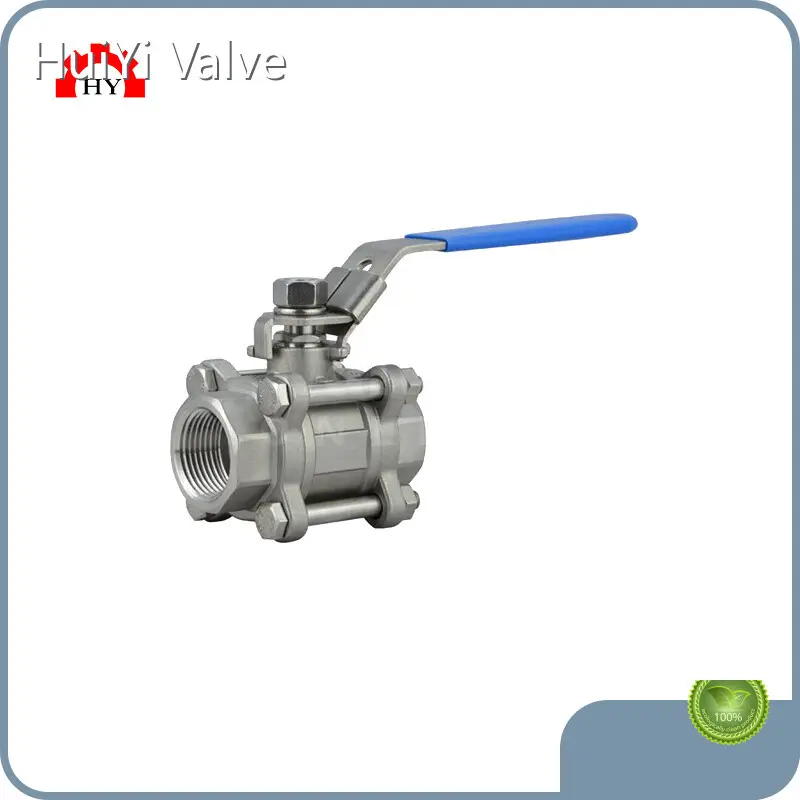

The 3-piece ball valve is composed of a main valve body and two auxiliary valve bodies, so it is called a 3-piece ball valve. After the ball core and valve stem are installed into the main valve body, the auxiliary valve body is installed into the valve seat, and the main and auxiliary valve bodies are connected as a whole through bolts. Its ball core flow channel is also full bore.
3-Piece Stainless Steel Ball Valves with PTFE Seals & Seats, Stainless Steel Ball Valves with PTFE (Teflon) Seats & Seals offer excellent corrosion resistance for most applications. Stainless Steel & PTFE work well in applications including but not limited to water, oil, gas/air, light alkali's and acids, biodiesel, fuels and alcohols. These ball valves are fitted with tight seals to ensure no leakage and a long lasting seal after many years of frequent usage. Available in both WOG200 and WOG1000. WOG200 are considered ideal for most general applications. WOG1000 are for high pressure and industrial applications where durability and lifetime longevity of the valve are preferred.
Product Parameters
|
Size |
∅ D(mm) |
L(mm) |
H(mm) |
E(mm) |
|
1/4” |
9.2 |
59 |
52 |
108 |
|
3/8” |
12.8 |
60 |
52 |
108 |
|
1/2” |
15 |
65.5 |
63 |
113 |
|
3/4” |
20 |
76.5 |
68 |
113 |
|
1” |
25 |
86.2 |
79 |
135 |
|
1-1/4” |
32 |
103.1 |
88 |
135 |
|
1-1/2” |
38 |
118 |
97 |
160 |
|
2” |
50 |
131.5 |
108 |
160 |
|
2-1/2” |
65 |
164.5 |
128 |
230 |
|
3” |
80 |
182.7 |
140 |
230 |
|
4” |
100 |
229.6 |
172 |
335 |
Product details
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Handle Cover |
Plastic |
|
2 |
Stem Nut |
316/304 |
|
3 |
Stem |
304 |
|
4 |
Stem Washer |
304 |
|
5 |
Gland Nut |
304 |
|
6 |
Thrust Washer |
PTFE |
|
7 |
End Seal |
PTFE |
|
8 |
Bolt |
304 |
|
9 |
Bolt Nut |
304 |
|
10 |
Bolt Washer |
304 |
|
11 |
End Cap |
CF8/CF8M |
|
12 |
Body |
CF8/CF8M |
|
13 |
Ball |
CF8/CF8M |
|
14 |
Ball Seat |
PTFE |
|
15 |
Stem Packing |
PTFE |
|
16 |
Locking Device |
304 |
|
17 |
Handle |
304 |
Company Feature
• Based on the comprehensive team management, each team strictly focuses on its own duty. Our responsible production team and skilled R&D team are committed to providing good products. And with our sales team and service team, we build and maintain good relationships with customers. All this guarantees the continuous development for our company.
• HuiYi Valve has been through years of wind and rain since the establishment. Compared with our peers, we have more mature production technology to provide customers with better products and services.
• HuiYi Valve is committed to providing the best products and services for customers.
• With good location advantages, the open and easy traffic serves as the foundation for HuiYi Valve's development.
Thanks for visiting. If you have any questions about displayed on the page, please contact HuiYi Valve.
