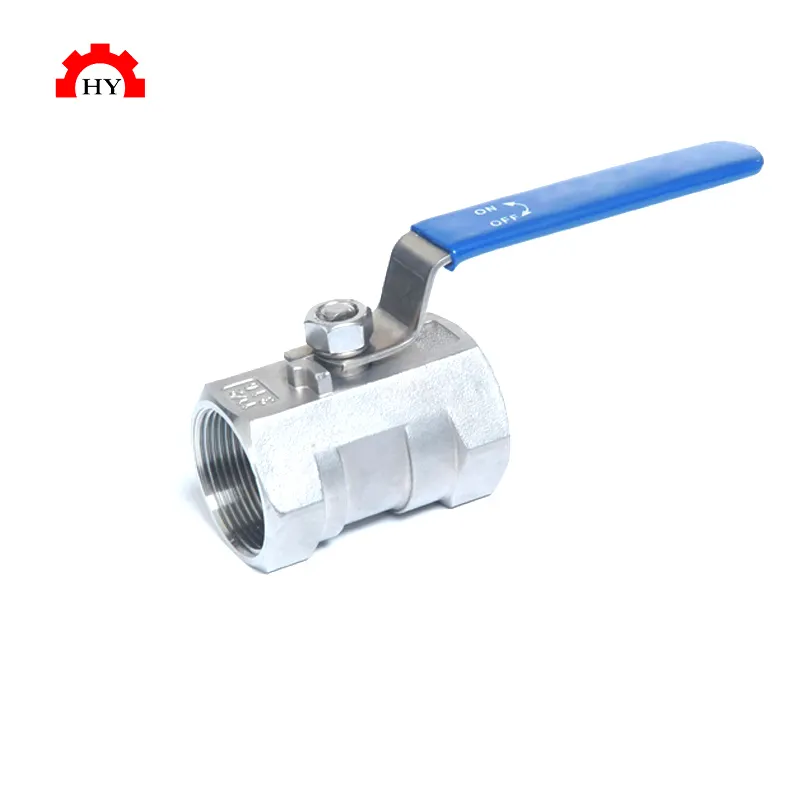

3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve 1

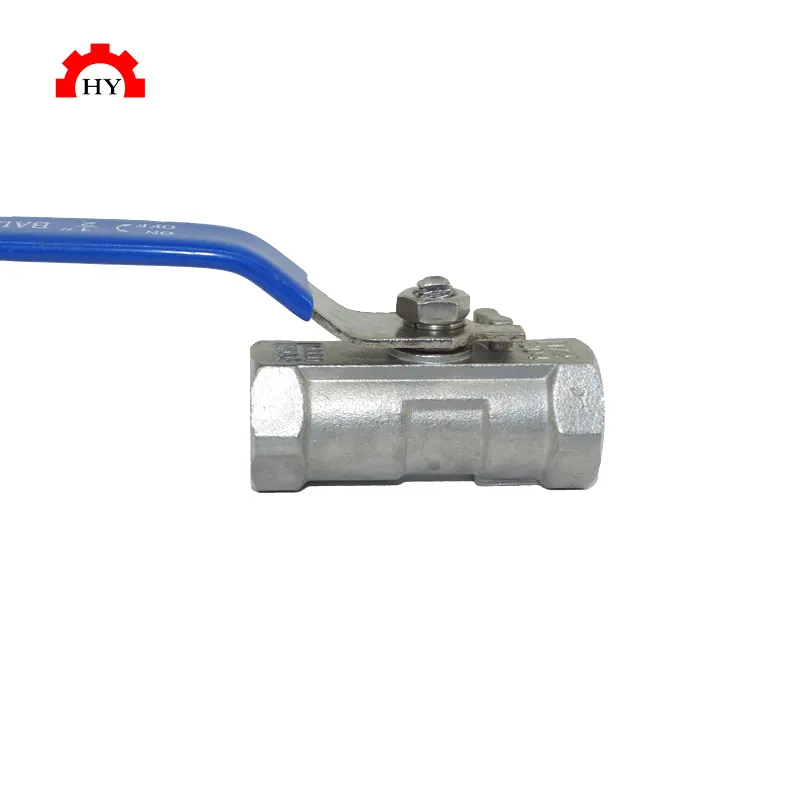

3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve 2

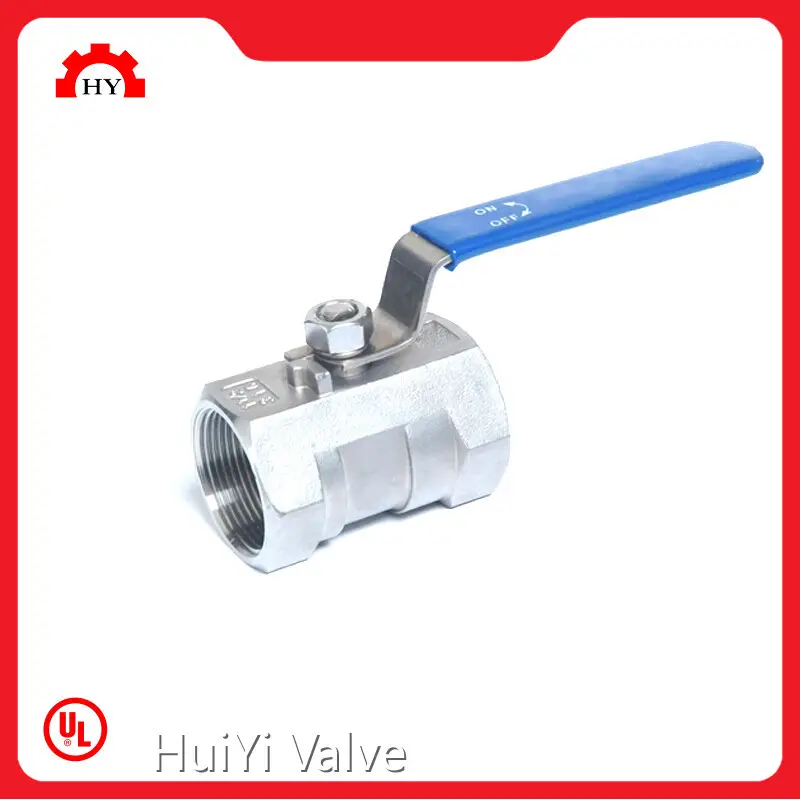

3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve 3

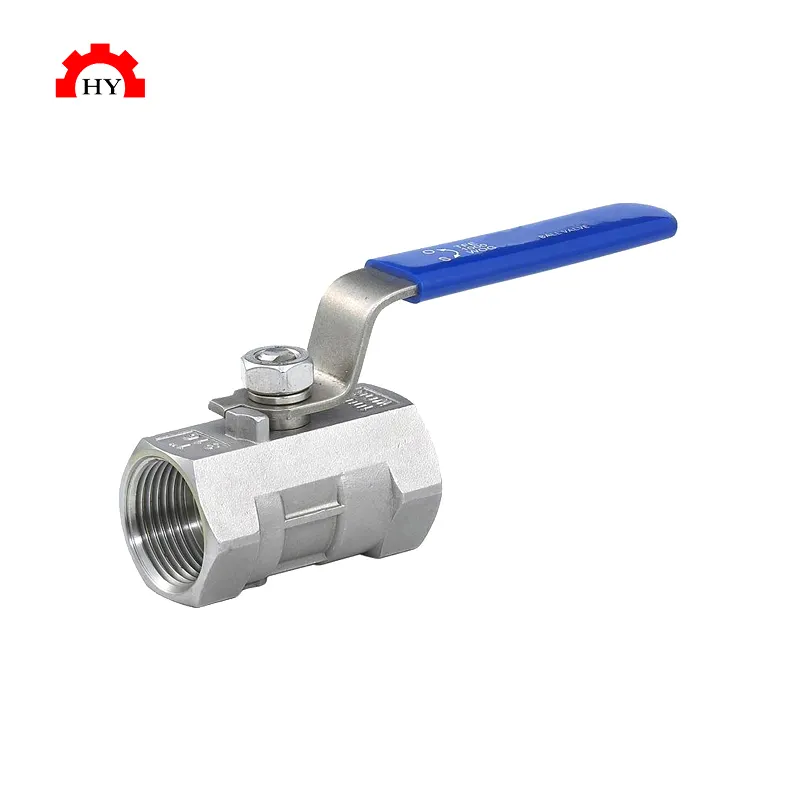

3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve 4

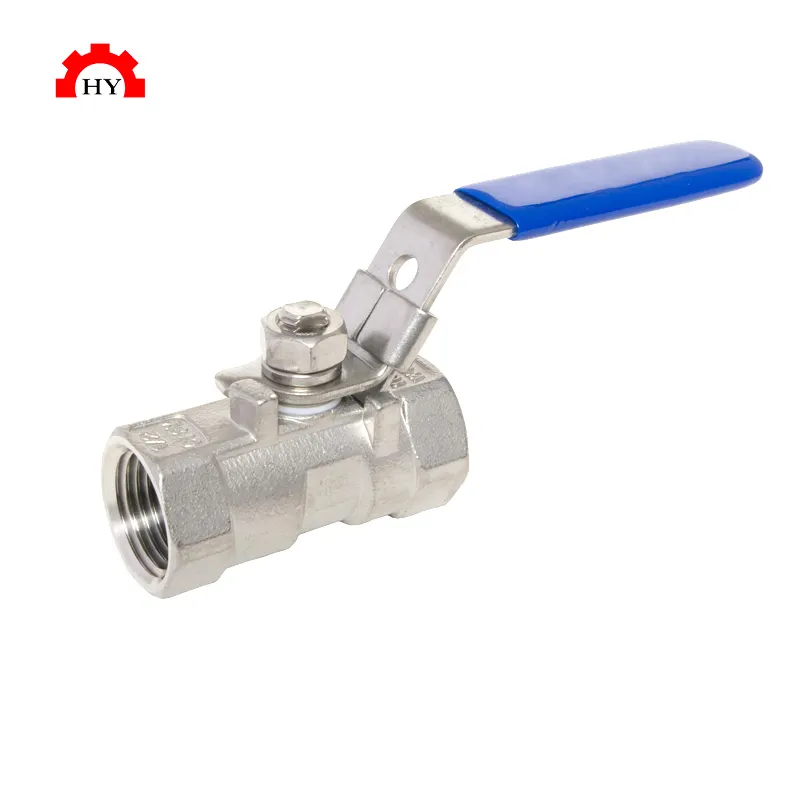

3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve 5

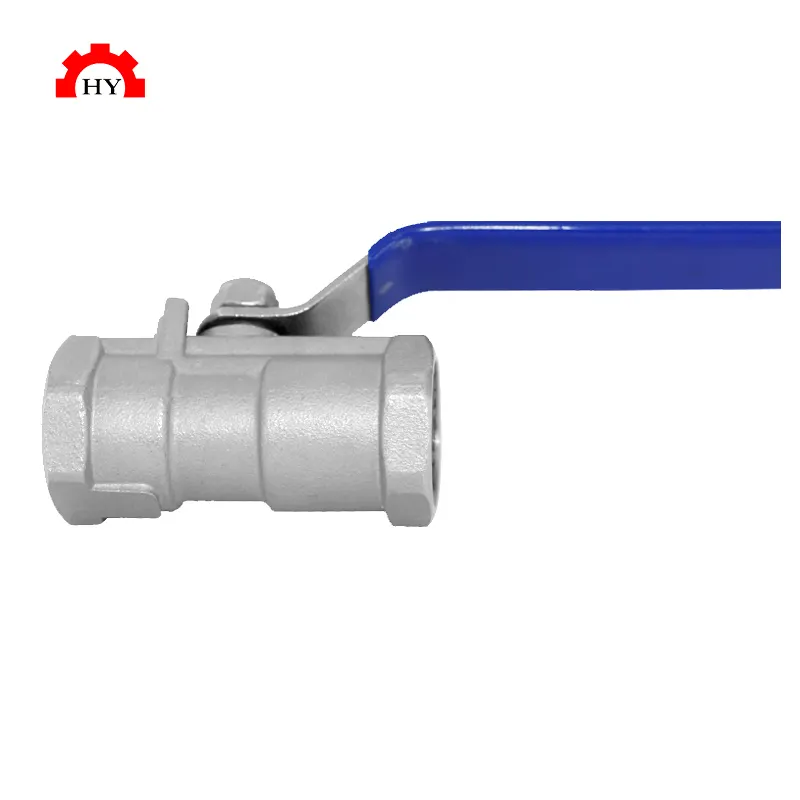

3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve 6

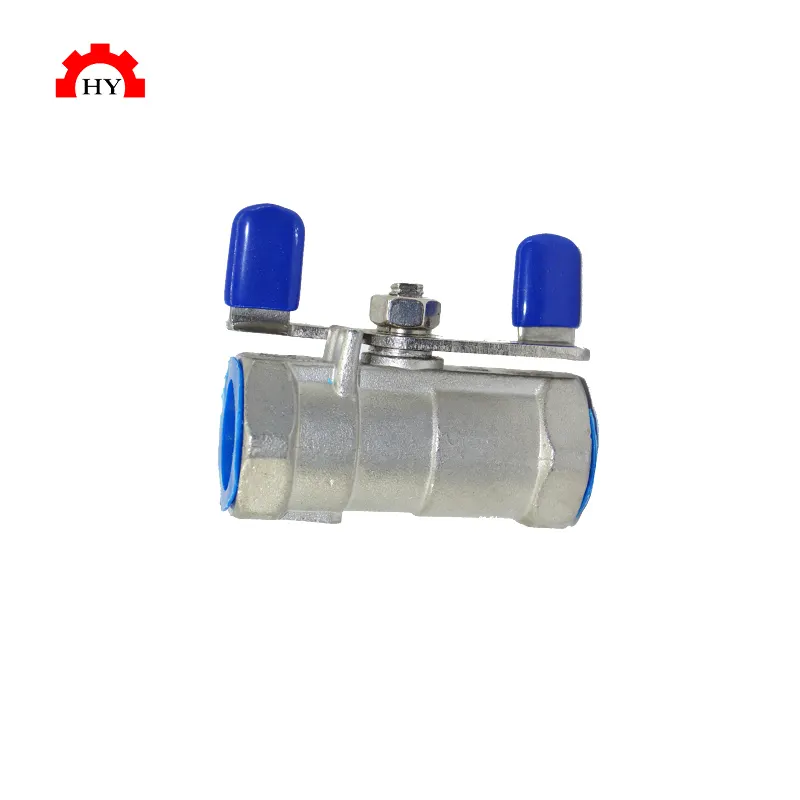

3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve 7
3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve 1
3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve 2
3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve 3
3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve 4
3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve 5
3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve 6
3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve 7

3 Piece Stainless Steel Ball Valve Normal Temperature by HuiYi Valve

Working Temperature:
Normal temperature
Delivery time:
7-20 days
Model:
Q11F-1PC
Seat:
PTFE
Test Standard:
API 598
Inquiry
Send your inquiry

Product details of the 3 piece stainless steel ball valve


Quick Detail

HuiYi Valve 3 piece stainless steel ball valve is a well-crafted product that adopts advanced technologies. The high quality and good usability give the product an edge to compete in the global market. 3 piece stainless steel ball valve of HuiYi Valve can play a role in various industries. Wenzhou Huiyi Valve Technology Co.,Ltd has strong 3 piece stainless steel ball valve market competitiveness and always hold strong sense of crisis in the enterprise.


Product Description

HuiYi Valve adheres to the principle of 'details determine success or failure' and pays great attention to the details of 3 piece stainless steel ball valve.

Product Description

The 1-piece ball valve is called a 1-piece ball valve because the valve body adopts an integral structure. It is small in appearance and light in weight. The ball core, valve seat, and valve stem are installed from the flow channel on one side of the valve body. Due to the size limitation of the valve body flow channel, the full-bore ball core cannot be installed inside the valve body, so the ball core flow channel of the one-piece ball valve is reduced bore. Circulation capacity is subject to certain restrictions. There are certain advantages in cost. Mainly used for low pressure pipelines.

The valve is made of WCB cast steel, stainless steel CF8, CF8M and other materials.

Wide Applications: Widely used in mechanical equipment, industrial equipment, water supply and drainage equipment.

Dimension

Size

∅ A(mm)

C(mm)

E(mm)

D(mm)

1/4”

5

39

77

39

3/8”

7

44

77

39

1/2”

9.2

58.5

88

44

3/4”

12.8

59

88

48

1”

15

71

109

57

1-1/4”

20

78

109

59

1-1/2”

25

83

135

70

2”

32

100

135

74

Product details

图片1 (5)
图片1 (5)
图片2 (4)
图片2 (4)
图片3 (5)
图片3 (5)

Main Parts

NO.

PART NAME

MATERIAL

1

Seat

PTFE

2

Ball

CF8/CF8M

3

Body

CF8/CF8M

4

Ball seat

PTFE

5

Locking Device

304

6

Handle

304

7

Handle Cover

Plastic

8

Stem Nut

316/304

9

Stem

316/304

10

Stem Washer

304

11

Washer

304

12

Stem Packing

PTFE

13

Thrust Washer

PTFE

14

Plug

CF8/CF8M
