Product Overview

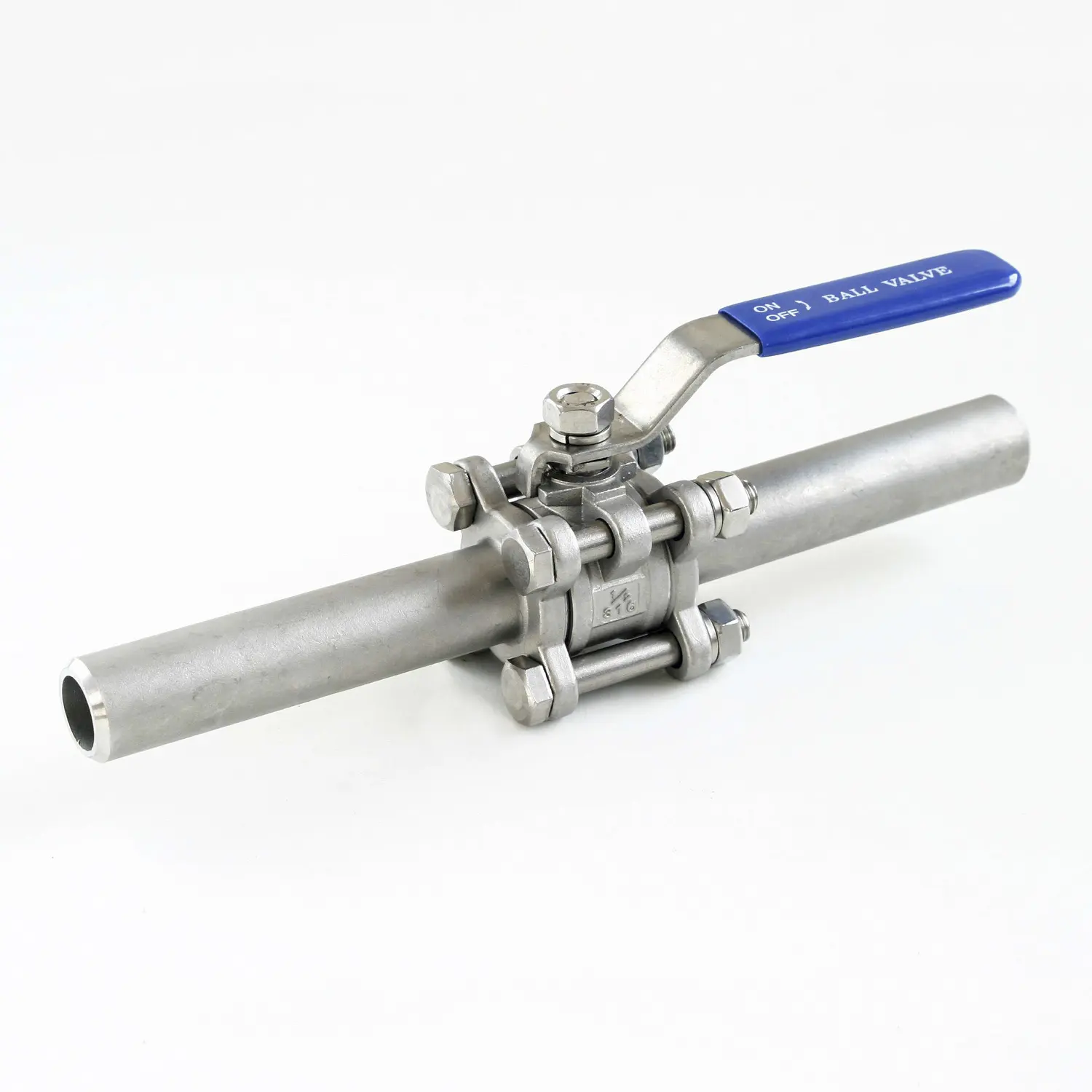

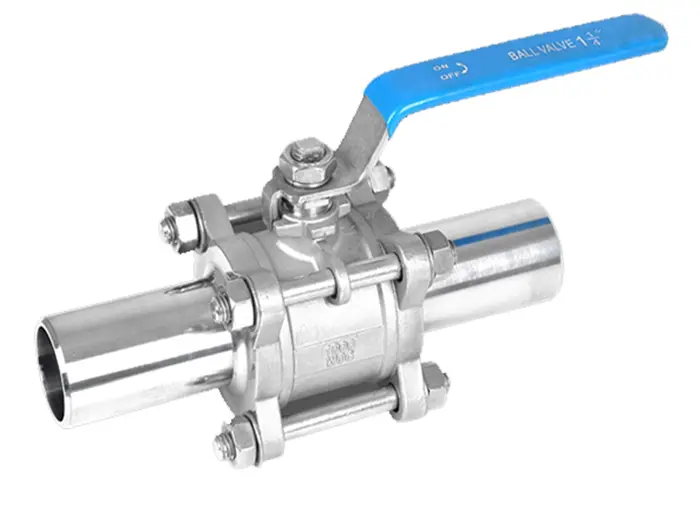

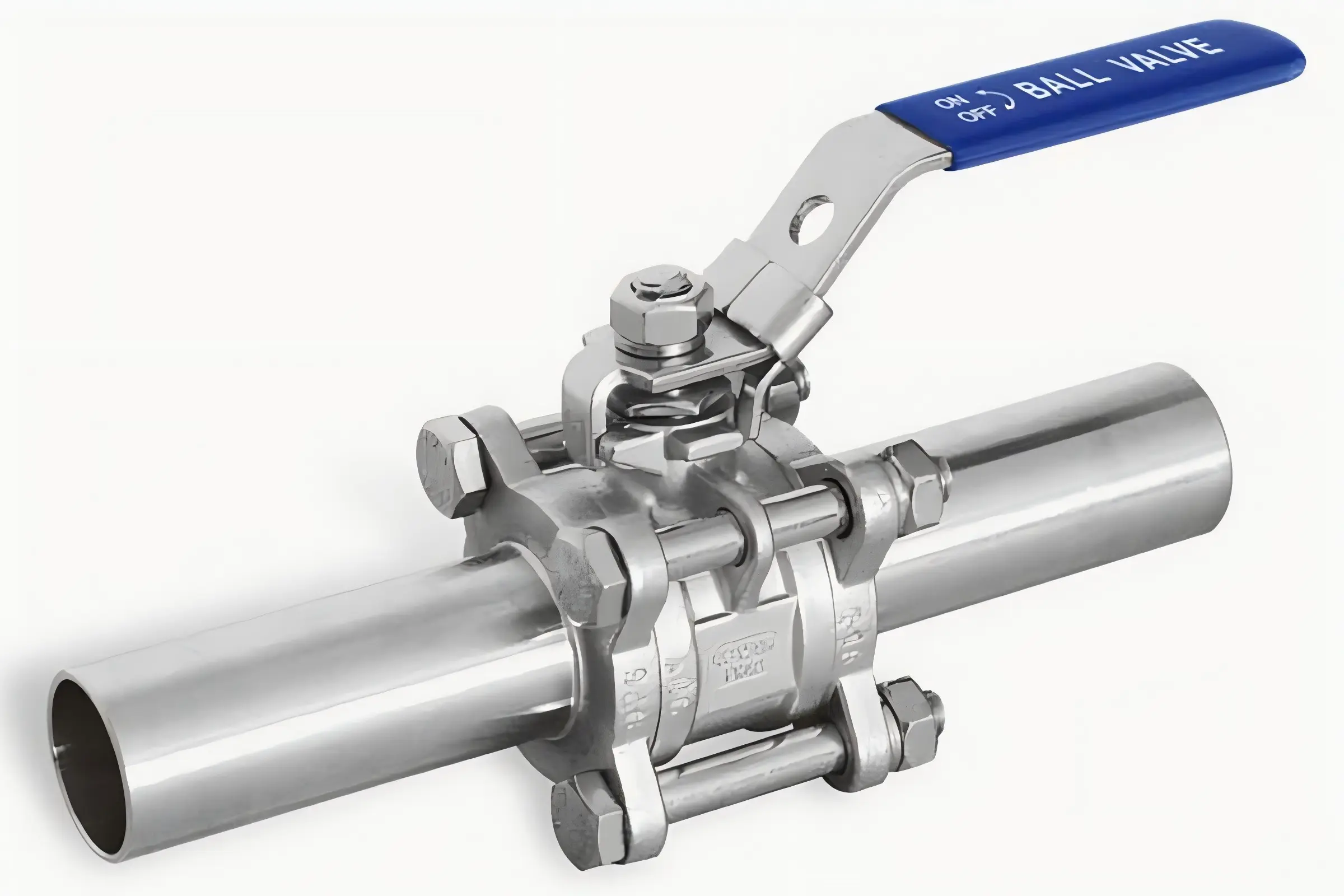

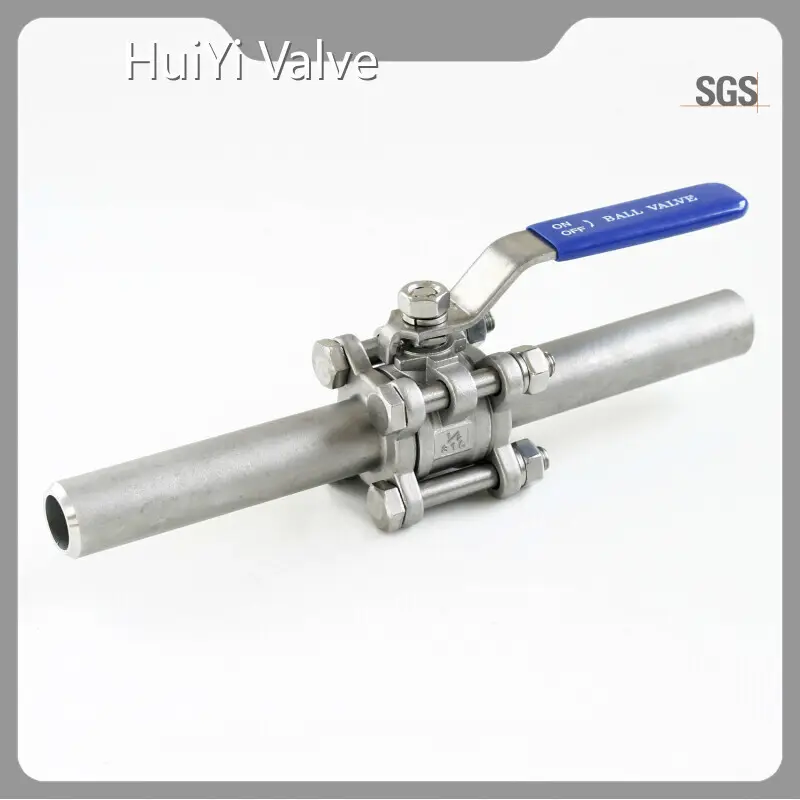

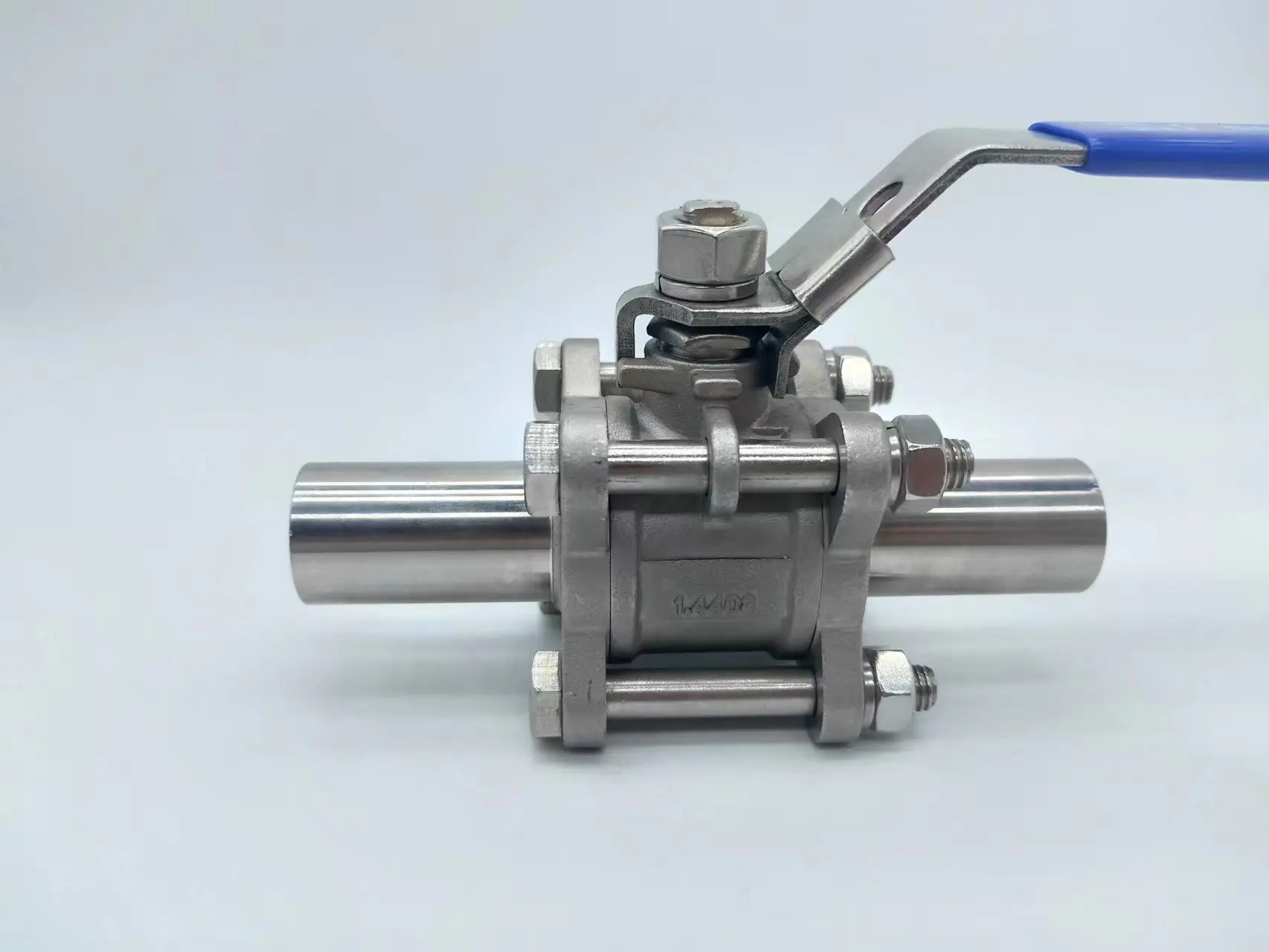

HY 600 WOG stainless steel butt-welded floating ball valve - professional fluid control solution, made of high-quality stainless steel, with 600WOG high pressure resistance. This bidirectional floating ball valve ensures the sealing and durability of the pipeline system through precise welding technology. It is suitable for industries such as petroleum, chemical, and pharmaceutical, providing reliable flow control and media isolation, and is an ideal choice for the safe operation of industrial pipelines.
Product Details
Materials of main parts
No. | Parts name | PART NAME | MATERLAL |
1 | Valve body | BODY | WCB/CFB/CFBM |
2 | Ball | BALL | S5304/S5316 |
3 | Valve cover | END CAP | WCB/CFB/CFBM |
4 | Valve seat | SEAT | RTFE |
5 | Valve stem | STEM | S5304/55316 |
6 | Thrust washer | THRUST WASHER | RTFE |
7 | V-type packing | STEM PACKING | RTFE |
8 | Compression ring | GLAND BUSH | SS304 |
9 | Handle | HANDLE | SS304 |
10 | Handle cover | HANDLE COVER | PC |
11 | Dish washer | STEM NUT | SS304 |
12 | Butterfly release cover | HANDLE NUT | SS304 |
13 | Handle lock | LOCKING PAD | SS304 |
14 | Valve stem nut | BELLEVILLE WASHER | SS304 |
15 | O-ring | O-RING | NBR |
16 | Bolt | BODY BOLT | SS304 |
17 | Spring washer | BOLT WASHER | SS304 |
18 | Nut | BOLT NUT | SS304 |
Specifications
Nominal pressure: | PN 1.6,2.5,4.0,6.4MPa |
Strength testing pressure: | PT2.4,3.8,6.0.9.6MMPa |
Seat testing pressure (low pressure): | 0.6MPa |
Applicable media: | Q61F-(16-64)C Water.OiLGas |
Q61F-(16-64)P Nitric acid | |
Q61F-(16-64)R Acetic acid | |
Applicable temperature: | -20~180*C |
Main outer size
DN | L | D | H | E | I50 5211 | ||||
① | ② | ① | ② | ① | ② | ||||
6 | 65 | 12.7 | 48 | 105 | |||||
10 | 65 | 12.7 | 48 | 105 | |||||
15 | 75 | 75 | 15 | 57.5 | 72 | 105 | 150 | F03 | F04 |
20 | 90 | 90 | 20 | 63 | 78 | 129 | 150 | F03 | F05 |
25 | 100 | 100 | 25 | 75.5 | 88 | 156 | 177 | F04 | F05 |
32 | 110 | 110 | 32 | 81 | 93 | 156 | 177 | F04 | F07 |
40 | 125 | 125 | 38 | 81 | 101 | 182 | 196 | F05 | F07 |
50 | 150 | 150 | 50 | 94 | 108 | 182 | 196 | F05 | F07 |
65 | 190 | 190 | 63.5 | 104.5 | 145 | 252 | 266 | F07 | F10 |
80 | 220 | 220 | 76 | 131 | 155 | 252 | 266 | F07 | F10 |
100 | 270 | 270 | 100 | 180 | 318 | F10 | F10 |
