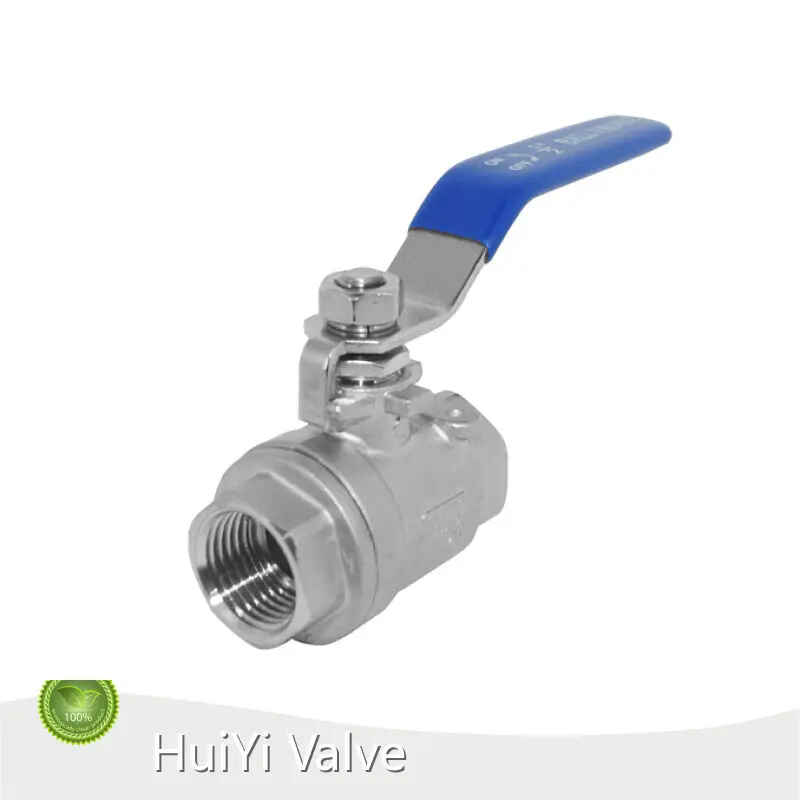

1000 Wog Valve According to ANSI B16.34 by HuiYi Valve
Product details of the 1000 wog valve
Product Description
Raw materials used for the production of HuiYi Valve 1000 wog valve is procured from reliable vendors. The product is tested on various quality parameters by our experienced quality controller team. The product finds a broad range of applications due to these features.
Dimension
|
Size |
∅ d(mm) |
L(mm) |
H(mm) |
W(mm) |
|
1/4” |
9.2 |
54 |
54 |
110 |
|
3/8” |
12.8 |
54 |
55 |
110 |
|
1/2” |
15 |
57 |
58 |
115 |
|
3/4” |
20 |
68 |
61 |
115 |
|
1” |
25 |
80 |
77 |
128 |
|
1-1/4” |
32 |
91 |
81 |
128 |
|
1-1/2” |
38 |
103 |
90 |
155 |
|
2” |
50 |
124 |
108 |
155 |
|
2-1/2” |
65 |
160 |
132 |
230 |
|
3” |
80 |
185 |
145 |
230 |
|
4” |
100 |
224.5 |
185 |
335 |
Product details
Main Parts
|
NO. |
Part Name |
Material |
|
1 |
Handle Cover |
Plastic |
|
2 |
Body |
CF8/CF8M |
|
3 |
Ball Seat |
PTFE |
|
4 |
Ball |
CF8/CF8M |
|
5 |
Cap |
CF8/CF8M |
|
6 |
Joint Gasket |
PTFE |
|
7 |
Thrust Washer |
PTFE |
|
8 |
Stem Packing |
PTFE |
|
9 |
Gland Nut |
304 |
|
10 |
Stem Washer |
304 |
|
11 |
Stem |
316/304 |
|
12 |
Stem Nut |
304 |
|
13 |
Locking Device |
304 |
|
14 |
Handle |
304 |
