Product details of the 1000 wog ball valve 316
Product Overview
1000 wog ball valve 316 is made by high quality materials. We have adopted a strict inspection system to control the quality when producing this product. 1000 wog ball valve 316 developed and produced by our company can be widely used in various industries and professional fields. The potential value of the product makes it applicable in multiple scenarios.
Product Information
In the production process of 1000 wog ball valve 316, we carefully polish the details, so as to strive for perfect quality.
Product Overview

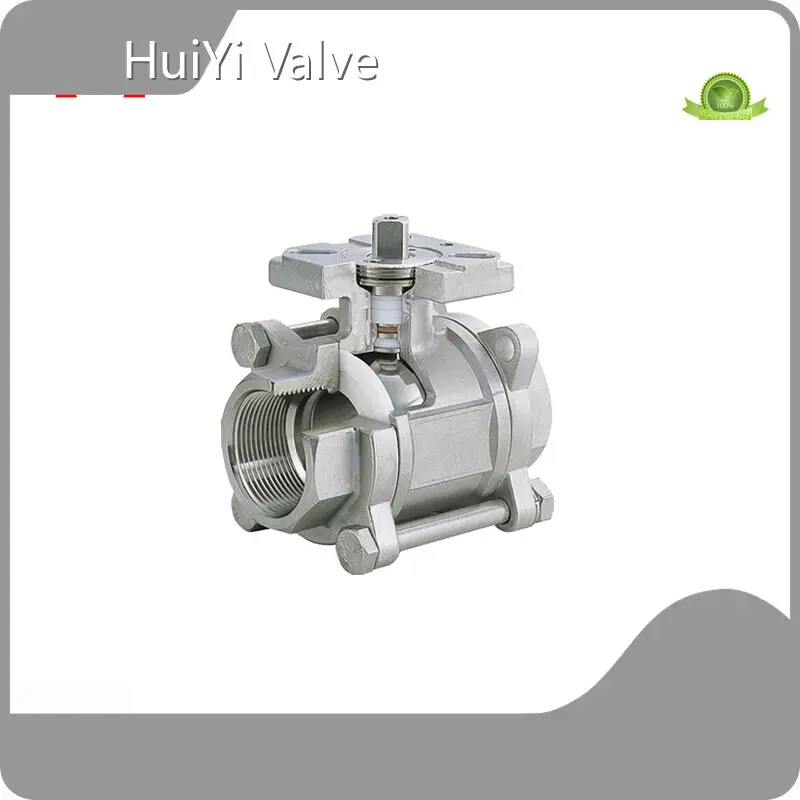

The Female NPT BSPT BSPP Female Thread 3pc Ball Valve with ISO5211 Mounting Pad launched by HY brand is a high-performance industrial ball valve suitable for various fluid control applications. The ball valve adopts a three-piece design, which is easy to maintain and replace, while ensuring higher sealing performance and strength. The following are the main features of the product:
●Full port, 1/4'-4' (DN6-DN100)
●Working pressure W.P.: 1000WOG (PN63)
●Working temperature W.T.: -20℃~180℃
●Investment casting
●Blow-out proof siem
●Live-loading design
●Anti-static device (option)
●Locking device handle
●-IS05211 Direct mounting pad
●Automation device (optional) Aulomalion accessories (opticn)
●Thread type: ASME B1.20.1 (NPT). DIN 259/DIN 2999.BS 21.190 288-1.1S0 7-1
●Socket weld type: ASME B16.11 & DIN3239 part2
●Butt weld type: ASME B16.25& DIN3239 part1'
Product details
Material List
No. | PARTS | MATERIAL | ||
1 | BONNET | WCB | CF8 | CFBMM |
2 | GASKET | PTFE | ||
3 | SEAT | PTFE | ||
4 | BALL | CF8 | CF8 | CFBM |
5 | BODY | WCB | CF8 | CF8M |
6 | BOLT | 304 | ||
7 | SPRING WASHER | 304 | ||
8 | NUT | 304 | ||
9 | STEM | 304 | 304 | 316 |
10 | STEM WASHER | PTFE+25% GF | ||
11 | O-RING | FPM | ||
12 | PACKING | PTFE | ||
13 | WEAR WASHER | PTFE+25% GF | ||
14 | GLAND | 304 | ||
15 | DISC SPRING | 304 | ||
16 | GLAND FLANGE | CF8 | ||
17 | HEX SOCKET BOLT | 304 | ||
18 | NUT | 304 | ||
19 | STOPPER | 304 | ||
20 | HANDLE | WCBJCFB | ||
21 | BOLT | 304 | ||
22 | NUT | 304 |
Dimensions
SIZE | d | L | H | h | K×K | A | B | Ra | Rb | W | H1 | D | J | L1 | D1 | T | |
1/4' | DN6 | 10 | 68 | 43 | 9 | 9×9 | 36 | 42 | 3.0 | 3.0 | 140 | 75 | 14.2 | 9.5 | 63 | 14.5 | 2.25 |
3/8' | DN10 | 12 | 68 | 43 | 9 | 9×9 | 36 | 42 | 3.0 | 3.0 | 140 | 75 | 17.6 | 9.5 | 63 | 17.5 | 2.75 |
1/2' | DN15 | 15 | 68.5 | 43 | 9 | 9×9 | 36 | 42 | 3.0 | 3.0 | 140 | 75 | 21.8 | 9.5 | 70 | 21.5 | 3.0 |
3/4' | DN20 | 20 | 79 | 47 | 9 | 9×9 | 36 | 42 | 3.0 | 3.0 | 140 | 79 | 27.2 | 12.5 | 80 | 27 | 3.0 |
1' | DN25 | 25 | 89 | 57 | 11 | 11×11 | 42 | 50 | 3.0 | 3.5 | 170 | 92 | 33.9 | 12.5 | 90 | 34 | 3.5 |
1-1/4' | DN32 | 32 | 100.5 | 63 | 11 | 11×11 | 42 | 50 | 3.0 | 3.5 | 170 | 98 | 42.7 | 12.5 | 104 | 42.5 | 3.7 |
1-1/2' | DN40 | 38 | 111 | 72 | 14 | 14×14 | 50 | 70 | 3.5 | 4.5 | 200 | 110 | 48.8 | 12.5 | 116 | 48.5 | 4 |
2' | DN50 | 50 | 129 | 80 | 14 | 14×14 | 50 | 70 | 3.5 | 4.5 | 200 | 118 | 61.2 | 16 | 138 | 60.5 | 4 |
2-1/2' | DN65 | 65 | 169.5 | 98 | 17 | 17×17 | 70 | 102 | 4.5 | 5.5 | 300 | 142 | 73.9 | 16 | 182 | 74 | 4.5 |
3' | DN80 | 80 | 191 | 110 | 17 | 17×17 | 70 | 102 | 4.5 | 5.5 | 300 | 154 | 89.8 | 16 | 203 | 90 | 5 |
4' | DN100 | 100 | 242 | 132 | 17 | 17×17 | 70 | 102 | 4.5 | 5.5 | 300 | 176 | 115.2 | 19 | 252 | 114.5 | 6 |
