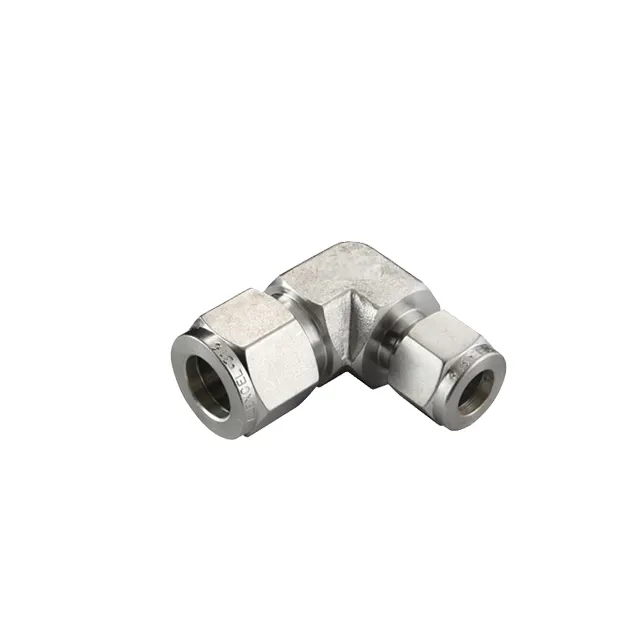

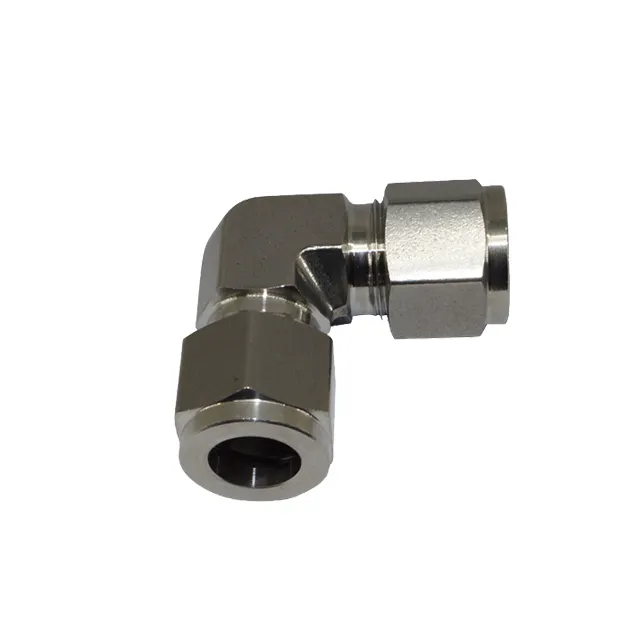

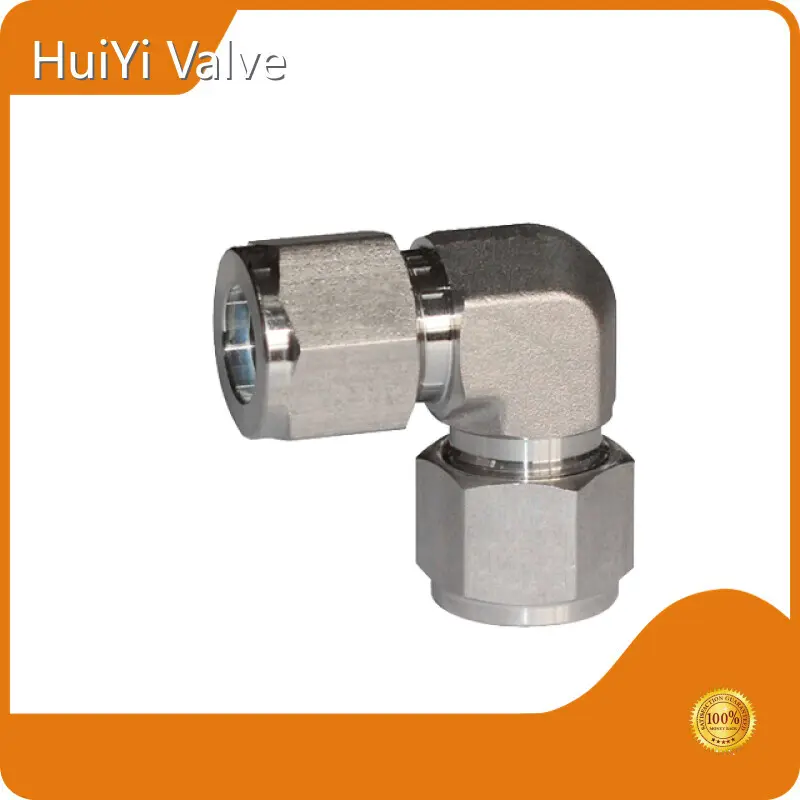

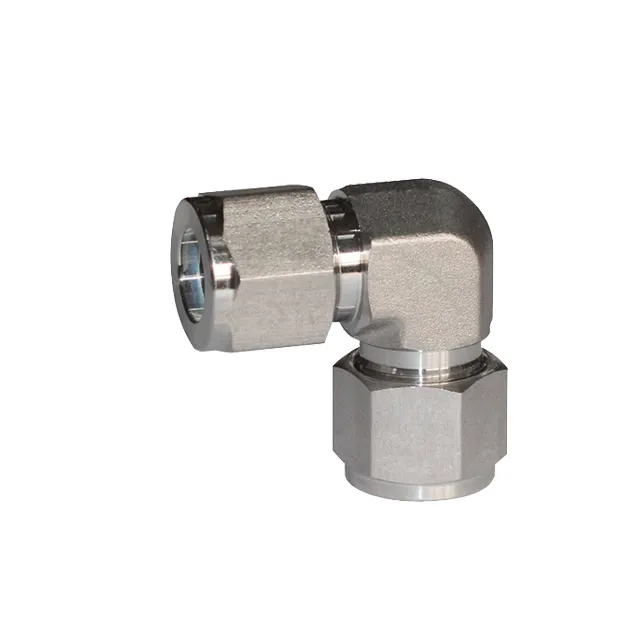

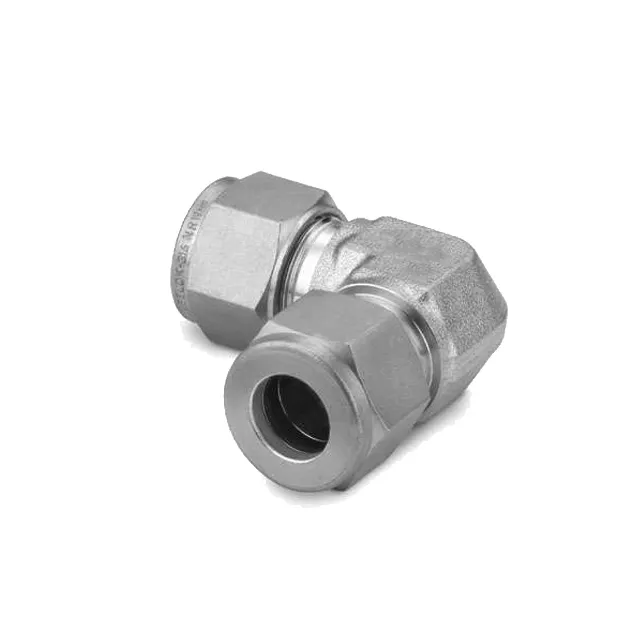

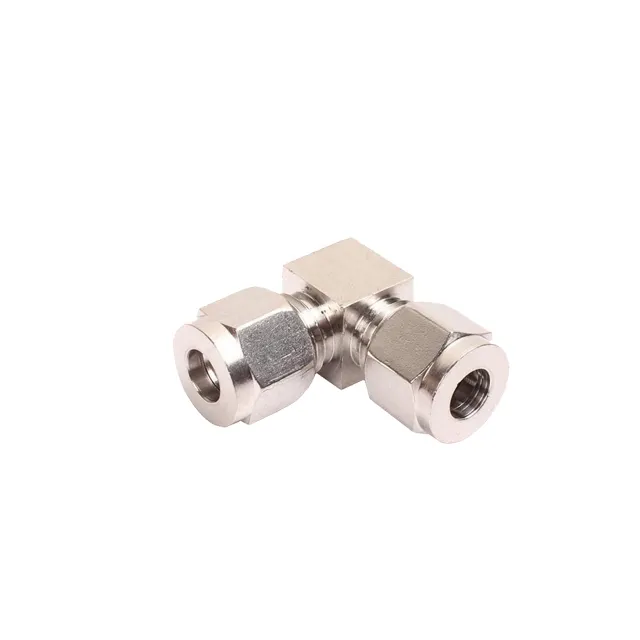

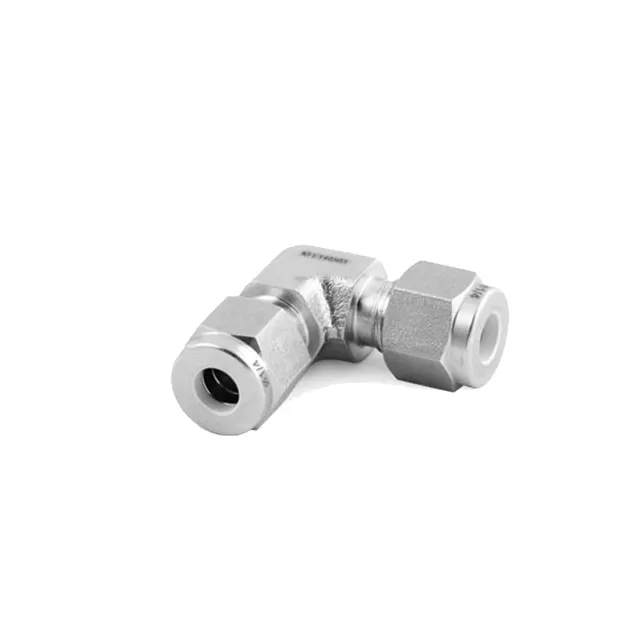

Product details of the types of compression fittings
Product Description
HuiYi Valve types of compression fittings is designed based on the results of the in-depth survey of global market needs. The quality and authenticity of the product are guaranteed highly. The product reaches the requirements of the customers and is popular among customers.
Product Description
High Pressure Tolerance:Its pressure resistance can reach 25Mpa-40Mpa.Strong resistance to high pressure makes it suitable for various media such as tube,gases, fluid, etc.
Reliable Fastening:The stainless compression fitting adopts threaded connection, which is reliable and not easy to loosen, effectively preventing water or gas leakage in the tube and ensuring the safe operation of the pipeline system.
304 316 stainless steel:High-quality stainless steel construction for durability and corrosion resistance.
Double Sleeve Ferrules:better sealing performance,more effectively prevent leakage
more stable:it easier to connect and disconnect fitting, reducing the risk of damage and failure during operation.
Dimension
MODEL NUMBER |
TUBE OD |
DIMENSIONS(INCH) |
|||
T,INCH | A | D | E |
F |
|
HY-UE-1/16 | 1/16 | 0.70 | 0.34 |
0.05 |
3/8 |
HY-UE-1/8 | 1/8 | 0.88 | 0.50 |
0.09 |
3/8 |
HY-UE-3/16 | 1/8 | 1.00 | 0.54 |
0.12 |
1/2 |
HY-UE-1/4 | 1/4 | 1.06 | 0.60 |
0.19 |
1/2 |
HY-UE-5/16 | 5/16 | 1.13 | 0.64 |
0.25 |
9/16 |
HY-UE-3/8 | 3/8 | 1.20 | 0.66 |
0.28 |
5/8 |
HY-UE-1/2 | 1/2 | 1.42 | 0.90 |
0.41 |
13/16 |
HY-UE-5/8 | 5/8 | 1.50 | 0.96 |
0.50 |
15/16 |
HY-UE-3/4 | 3/4 | 1.57 | 0.96 |
0.62 |
1-1/16 |
HY-UE-7/8 | 7/8 | 1.76 | 1.02 | 0.72 |
1-3/8 |
HY-UE-1 | 1 | 1.93 | 1.23 | 0.72 |
1-3/8 |
Product details
Company Advantage
• With a focus on talent cultivation, HuiYi Valve firmly believes that a professional team is a treasure for our enterprise. That's why we establish an elite team with integrity, dedication and innovative ability. It is the motivation for our company to develop rapidly.
• HuiYi Valve has established sales outlets in major cities in China. The products are also exported to Europe, America, Southeast Asia, and other regions.
• HuiYi Valve is dedicated to providing considerate services based on customer demand.
• HuiYi Valve has been exploring and innovating in the industry for years. And now are a modern company with rich production experience and mature processing technique.
Large amount of with high quality and reasonable price awaits your choice. Contact HuiYi Valve to order now and get a free sample.
