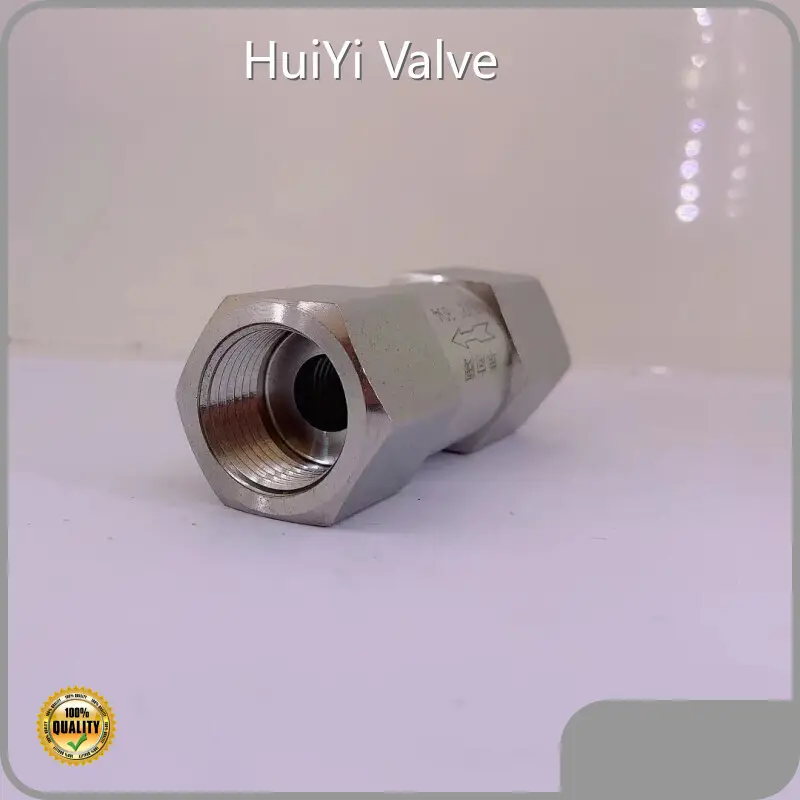

High Pressure Check Valve High Temperature by HuiYi Valve

Size:
1/4" to 1"
Working Temperature:
Normal temperature, high temperature
Medium:
Oil, Gas, Water
Sealing:
VITON
Test Standard:
API 598
Inquiry
Send your inquiry

Product details of the high pressure check valve


Quick Overview

HuiYi Valve high pressure check valve is delicately crafted by the experienced production team. HuiYi Valve's high pressure check valve product applies to most mainstream brands. It has always offered higher added value than other competitors.


Product Description

Compared with ordinary products, our high pressure check valve has the specific differences as follows.

Product Description

High quality stainless steel material, stable performance, not easy to rust and good airtightness

Accuracy BSPP female thread, easy to connect without slipping

This is hex female thread air check valve which is easy to install and remove, can be used for water connection

Available in 4 styles for choice: 1/8in, 1/4in, 3/8in, 1/2in

Suitable for connection of pipes under gas, water, oil and other media

Dimension

End connection

Ordering Number

Orifice (mm)

Size(mm)

Inlet/outlet

Size

A

B

C

Inch tube

1/8”

HY-FTCV-1/8

2.4

56

16

12

1/4”

HY-FTCV-1/4

4.8

60

16

14

3/8”

HY-FTCV-3/8

7.0

84

22

19

Metric tube

3mm

HY-FTCV-3M

2.4

56

16

12

6mm

HY-FTCV-6M

4.8

60

16

14

10mm

HY-FTCV-10M

8.0

84

22

19

Product details

图片1 (34)
图片1 (34)
图片2 (33)
图片2 (33)
