Product Description

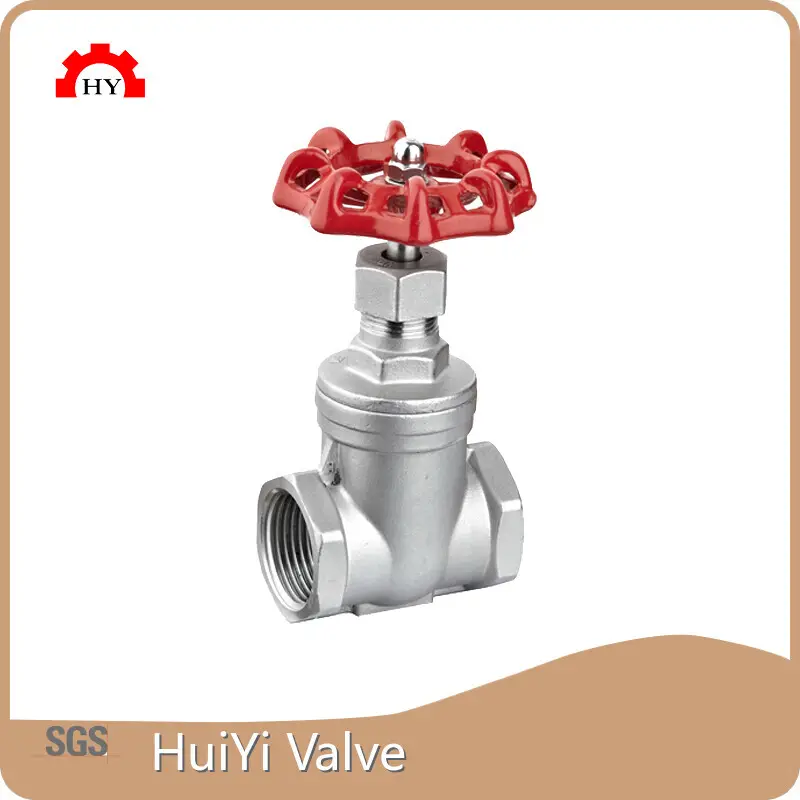

STAINLESS STEEL GATE VALVE: It is a stainless steel internal thread rotary gate valve, NPT BSPP BSPT stainless steel gate valve, which is used to control the water flow and control the pressure of the medium to produce an action that blocks the flow of the medium. When allowing or blocking the flow of media in one direction, it can be opened and closed by simply turning the wheeled handle.
EXPLOSION-PROOF, WEAR-RESISTANT: the full stainless steel valve body has the characteristics of high hardness, pressure-resistant, explosion-proof, high temperature resistance, good sealing, durability and good mechanical properties. Uniform wall thickness, high wear resistance and long service life.
NOT EASY TO SCALE: The inner wall of the 304 stainless steel gate valve is polished, the surface is smooth, no scaling, no blockage, practical and durable.
WIDE RANGE OF APPLICATION: A variety of specifications are available, suitable for most piping systems. It is widely used in chemical, petroleum, fire protection, electric power, light and heavy industry, construction, aerospace, shipbuilding and other industries.
Dimension
|
Size |
∅ D(mm) |
L(mm) |
H(mm) |
∅ D1(mm) |
|
1/2” |
15 |
55 |
92 |
70 |
|
3/4” |
20 |
60 |
99 |
70 |
|
1” |
25 |
66 |
113 |
80 |
|
1-1/4” |
32 |
76 |
128 |
80 |
|
1-1/2” |
40 |
88 |
147 |
90 |
|
2” |
50 |
96 |
168 |
100 |
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Body |
CF8/CF8M |
|
2 |
Bonnet |
CF8/CF8M |
|
3 |
Stop Ring |
304 |
|
4 |
Stem |
316 |
|
5 |
Packing |
PTFE |
|
6 |
Hand Wheel Nut |
304 |
|
7 |
Hand Wheel |
Aluminum |
|
8 |
Packing Nut |
316 |
|
9 |
Ring |
304 |
|
10 |
Lock Nut |
316 |
|
11 |
Gasket |
PTFE |
|
12 |
Disc |
CF8/CF8M |
Product details
Company Advantages
· We adopt technology of gate valve , which is introduced from abroad.
· An effective quality control system is achieved through the production of the product to ensure consistent quality.
· Wenzhou Huiyi Valve Technology Co.,Ltd is a professional company which produces different types of gate valve.
Company Features
· Wenzhou Huiyi Valve Technology Co.,Ltd is committed to continuous innovation, meeting consumer needs and working with suppliers to pursue the best gate valve solutions.
· Wenzhou Huiyi Valve Technology Co.,Ltd has a group of designers and skilled manufacturing staff.
· Currently, our goal is to commit to dominating the gate valve market by creating product superiority. We will strengthen control over the inspection of product quality and optimization of workmanship.
Application of the Product
HuiYi Valve's gate valve can be used in different fields.
HuiYi Valve always adheres to the service concept to meet customers' needs. We are committed to providing customers with one-stop solutions that are timely, efficient and economical.
