Product details of the compression fitting manufacturer
Product Information
Each step is strictly monitored by the professional quality inspection department. A continuous inspection system is implemented to ensure the high quality of this product. The product has passed a number of quality standards testing and has been certified in various aspects, such as performance, service life and so on. It has good competition capacity and a good development prospect.

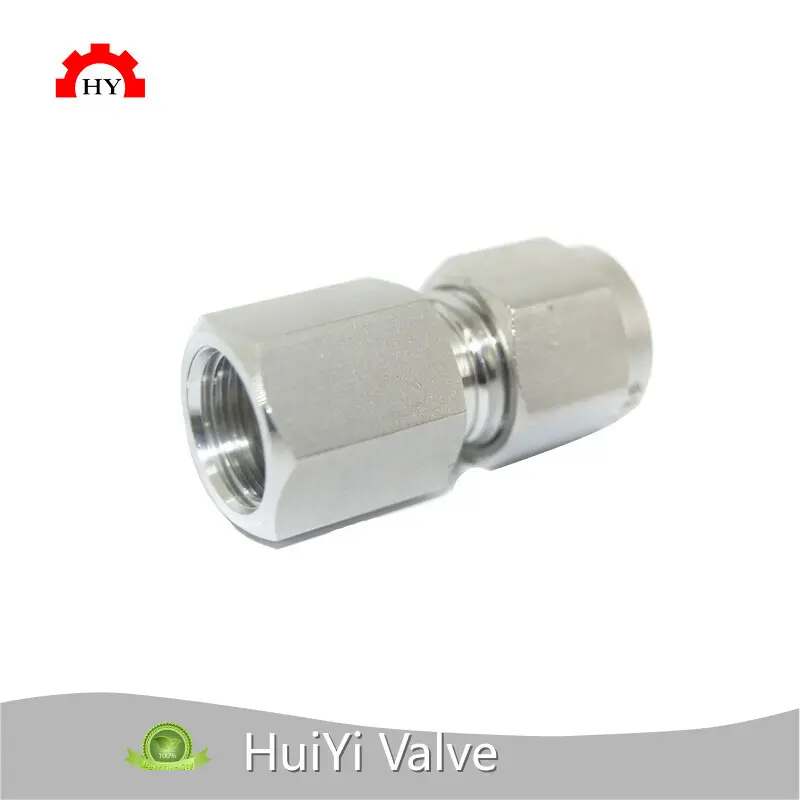

Double ferrule tube fitting on one end and female NPT on the other end, interchangeable with other major brands including Swagelok and Parker A-Lok
Manufactured from high quality 316 304 stainless steel for enhanced mechanical strength and corrosion resistance
Precision machined components ensure perfect deformation of ferrules and tubing, providing leak-tight and vibration-resistant connections even in harsh or stressful applications
Hardened threads with smooth surface finish to avoid galling and extend service life. Nut threads are silver-plated to minimize friction against the body threads
Easy to disconnect and retighten
Dimension
|
MODEL NUMBER |
TUBE OD |
NPT SIZE |
DIMENSIONS(INCH) |
|||
|
T,INCH |
A |
D |
E |
F |
||
|
HY-FC-1/16-1/16 |
1/16 |
1/16 |
0.93 |
0.34 |
0.05 |
7/16 |
|
HY-FC-1/16-1/8 |
1/8 |
0.96 |
9/16 |
|||
|
HY-FC-1/8-1/8 |
1/8 |
1/8 |
1.13 |
0.50 |
0.09 |
9/16 |
|
HY-FC-1/8-1/4 |
1/4 |
1.32 |
3/4 |
|||
|
HY-FC-3/16-1/8 |
3/16 |
1/8 |
1.17 |
0.54 |
0.12 |
9/16 |
|
HY-FC-1/4-1/8 |
1/4 |
1/8 |
1.23 |
0.60 |
0.19 |
9/16 |
|
HY-FC-1/4-1/4 |
1/4 |
1.41 |
3/4 |
|||
|
HY-FC-1/4-3/8 |
3/8 |
1.48 |
7/8 |
|||
|
HY-FC-1/4-1/2 |
1/2 |
1.67 |
1-1/16 |
|||
|
HY-FC-5/16-1/8 |
5/16 |
1/8 |
1.26 |
0.64 |
0.25 |
9/16 |
|
HY-FC-5/16-1/4 |
1/4 |
1.45 |
3/4 |
|||
|
HY-FC-3/8-1/8 |
3/8 |
1/8 |
1.29 |
0.66 |
0.28 |
5/8 |
|
HY-FC-3/8-1/4 |
1/4 |
1.48 |
3/4 |
|||
|
HY-FC-3/8-3/8 |
3/8 |
1.54 |
7/8 |
|||
|
HY-FC-3/8-1/2 |
1/2 |
1.73 |
1-1/16 |
|||
|
HY-FC-3/8-3/4 |
3/4 |
1.88 |
1-5/16 |
|||
|
HY-FC-1/2-1/4 |
1/2 |
1/4 |
1.59 |
0.90 |
0.41 |
13/16 |
|
HY-FC-1/2-3/8 |
3/8 |
1.65 |
7/8 |
|||
|
HY-FC-1/2-1/2 |
1/2 |
1.84 |
1-1/16 |
|||
|
HY-FC-1/2-3/4 |
3/4 |
1.90 |
1-5/16 |
|||
|
HY-FC-5/8-1/4 |
5/8 |
3/8 |
1.65 |
0.96 |
0.41 |
15/16 |
|
HY-FC-5/8-1/2 |
1/2 |
1.84 |
1-1/16 |
|||
|
HY-FC-5/8-3/4 |
3/4 |
1.90 |
1-5/16 |
|||
|
HY-FC-3/4-1/2 |
3/4 |
1/2 |
1.84 |
0.96 |
0.62 |
1-1/16 |
|
HY-FC-3/4-3/4 |
3/4 |
1.90 |
1-5/16 |
|||
|
HY-FC-7/8-3/4 |
7/8 |
3/4 |
1.96 |
1.02 |
0.72 |
1-5/16 |
|
HY-FC-1-3/4 |
1 |
3/4 |
2.10 |
1.23 |
0.88 |
1-3/8 |
|
HY-FC-1-1 |
1 |
2.45 |
1-5/8 |
|||
