Product details of the compression fitting manufacturer
Product Overview
HuiYi Valve compression fitting manufacturer is designed by our designers who are actively developing new products based on the spirit of innovation. Being high quality and cost competitive, compression fitting manufacturer of HuiYi Valve will surely become a highly marketable commodity. HuiYi Valve's compression fitting manufacturer is widely used in various scenes. Wenzhou Huiyi Valve Technology Co.,Ltd can provide many modes of transportation for compression fitting manufacturer.
Product Introduction
HuiYi Valve pursues perfection in every detail of compression fitting manufacturer, so as to show quality excellence.

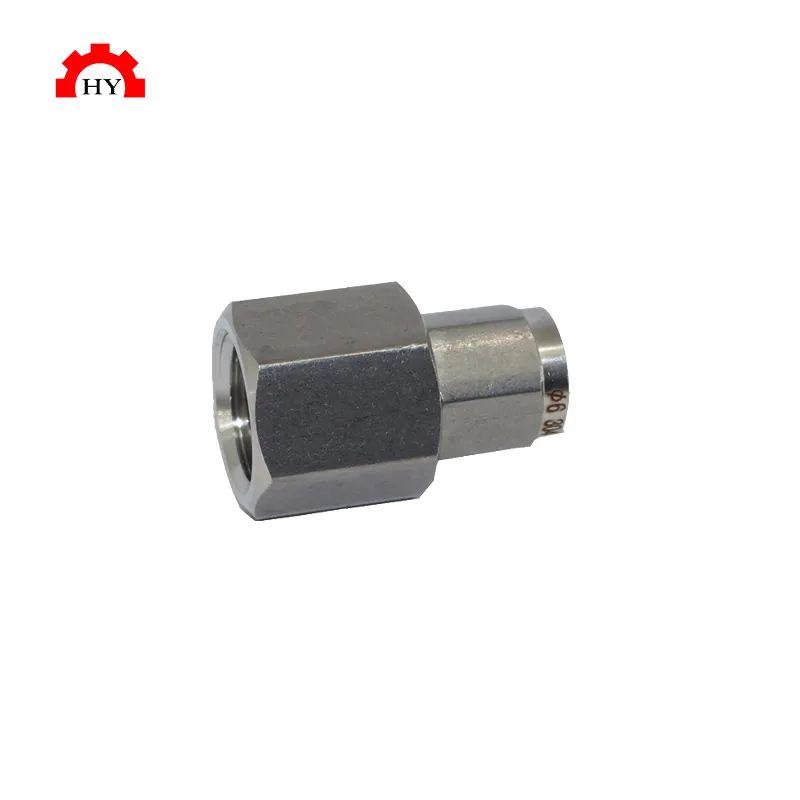

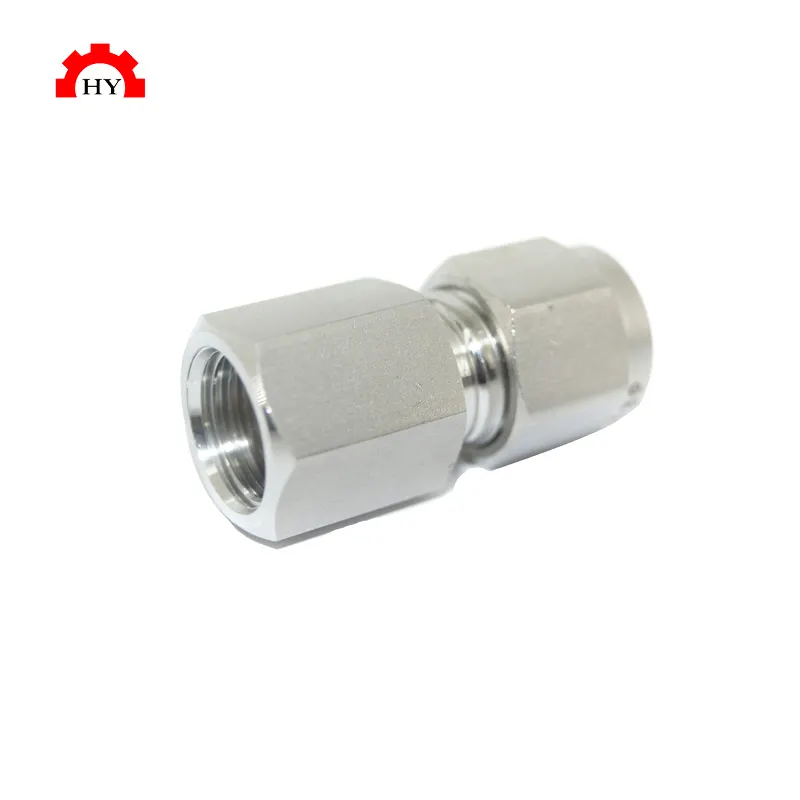

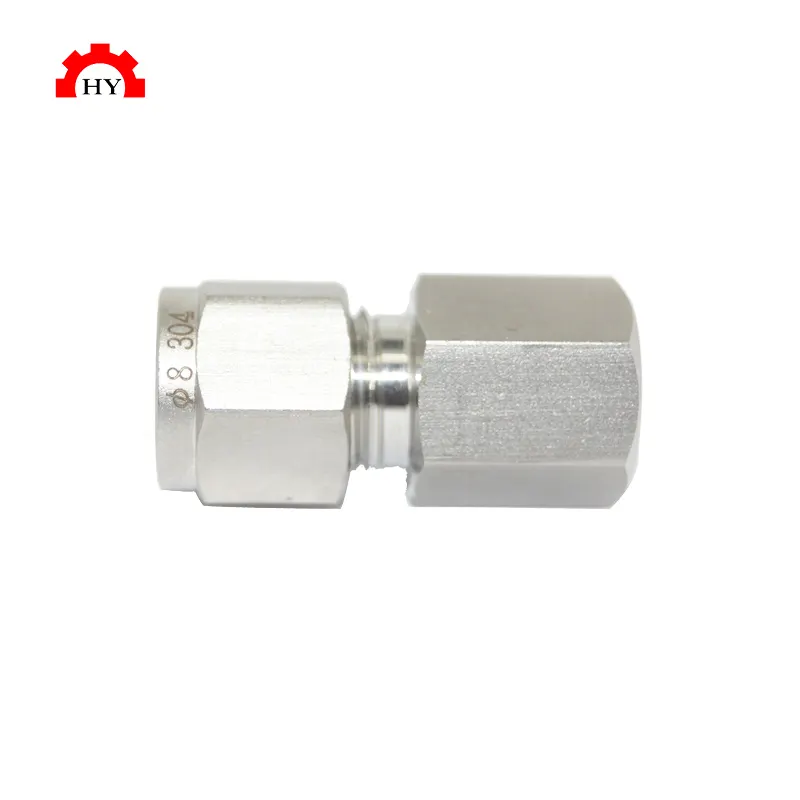

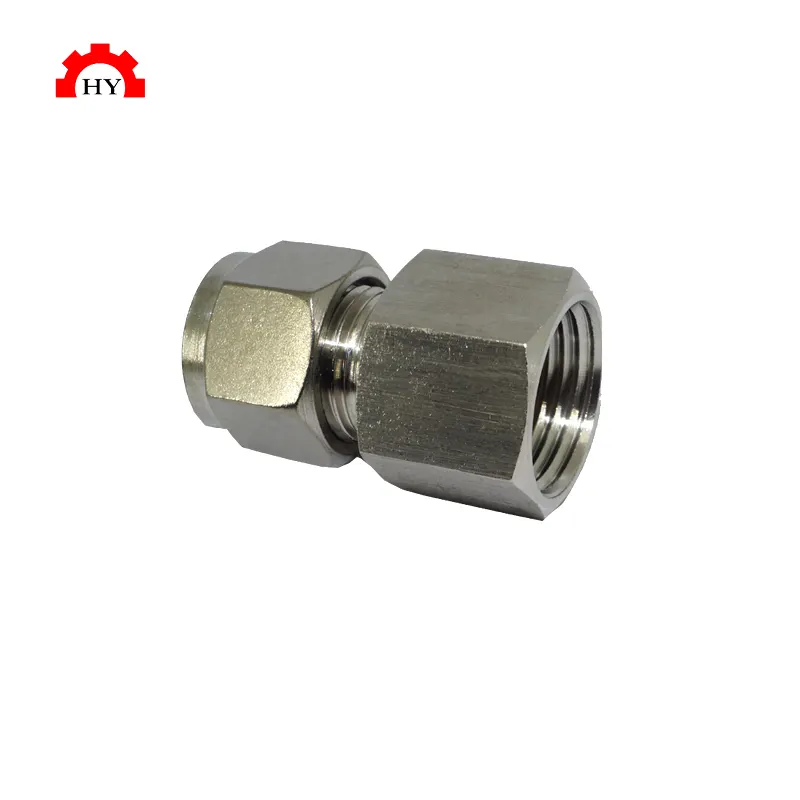

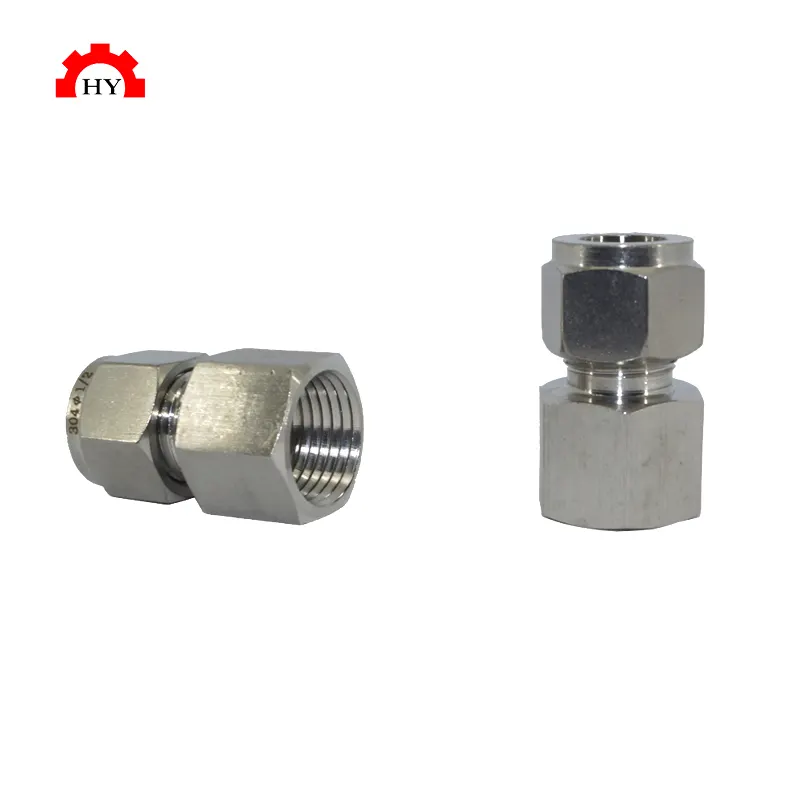

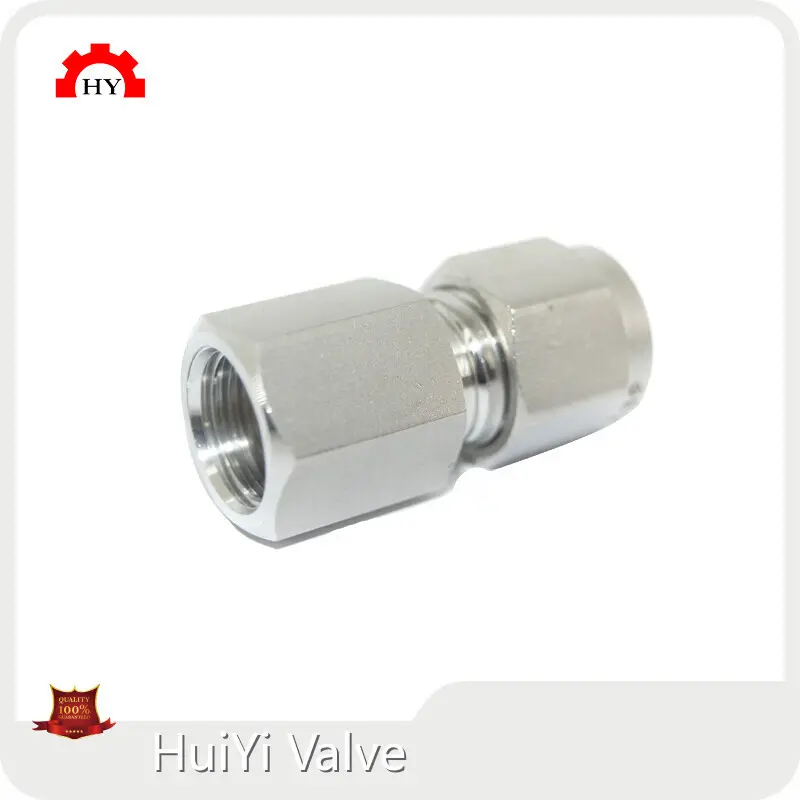

Double ferrule tube fitting on one end and female NPT on the other end, interchangeable with other major brands including Swagelok and Parker A-Lok
Manufactured from high quality 316 304 stainless steel for enhanced mechanical strength and corrosion resistance

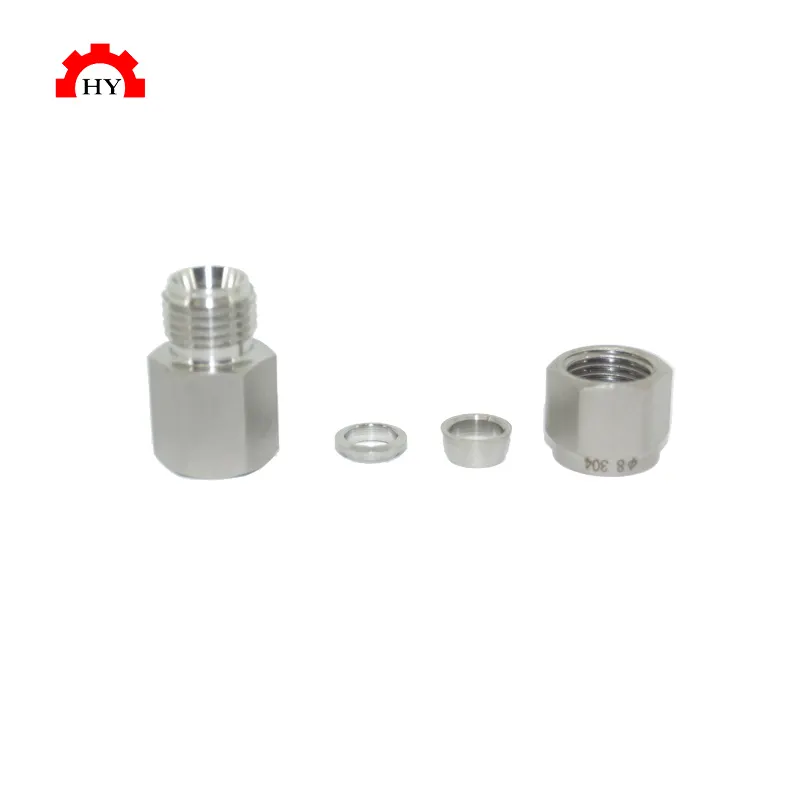

Precision machined components ensure perfect deformation of ferrules and tubing, providing leak-tight and vibration-resistant connections even in harsh or stressful applications
Hardened threads with smooth surface finish to avoid galling and extend service life. Nut threads are silver-plated to minimize friction against the body threads
Easy to disconnect and retighten
Dimension
|
MODEL NUMBER |
TUBE OD |
NPT SIZE |
DIMENSIONS(INCH) |
|||
|
T,INCH |
A |
D |
E |
F |
||
|
HY-FC-1/16-1/16 |
1/16 |
1/16 |
0.93 |
0.34 |
0.05 |
7/16 |
|
HY-FC-1/16-1/8 |
1/8 |
0.96 |
9/16 |
|||
|
HY-FC-1/8-1/8 |
1/8 |
1/8 |
1.13 |
0.50 |
0.09 |
9/16 |
|
HY-FC-1/8-1/4 |
1/4 |
1.32 |
3/4 |
|||
|
HY-FC-3/16-1/8 |
3/16 |
1/8 |
1.17 |
0.54 |
0.12 |
9/16 |
|
HY-FC-1/4-1/8 |
1/4 |
1/8 |
1.23 |
0.60 |
0.19 |
9/16 |
|
HY-FC-1/4-1/4 |
1/4 |
1.41 |
3/4 |
|||
|
HY-FC-1/4-3/8 |
3/8 |
1.48 |
7/8 |
|||
|
HY-FC-1/4-1/2 |
1/2 |
1.67 |
1-1/16 |
|||
|
HY-FC-5/16-1/8 |
5/16 |
1/8 |
1.26 |
0.64 |
0.25 |
9/16 |
|
HY-FC-5/16-1/4 |
1/4 |
1.45 |
3/4 |
|||
|
HY-FC-3/8-1/8 |
3/8 |
1/8 |
1.29 |
0.66 |
0.28 |
5/8 |
|
HY-FC-3/8-1/4 |
1/4 |
1.48 |
3/4 |
|||
|
HY-FC-3/8-3/8 |
3/8 |
1.54 |
7/8 |
|||
|
HY-FC-3/8-1/2 |
1/2 |
1.73 |
1-1/16 |
|||
|
HY-FC-3/8-3/4 |
3/4 |
1.88 |
1-5/16 |
|||
|
HY-FC-1/2-1/4 |
1/2 |
1/4 |
1.59 |
0.90 |
0.41 |
13/16 |
|
HY-FC-1/2-3/8 |
3/8 |
1.65 |
7/8 |
|||
|
HY-FC-1/2-1/2 |
1/2 |
1.84 |
1-1/16 |
|||
|
HY-FC-1/2-3/4 |
3/4 |
1.90 |
1-5/16 |
|||
|
HY-FC-5/8-1/4 |
5/8 |
3/8 |
1.65 |
0.96 |
0.41 |
15/16 |
|
HY-FC-5/8-1/2 |
1/2 |
1.84 |
1-1/16 |
|||
|
HY-FC-5/8-3/4 |
3/4 |
1.90 |
1-5/16 |
|||
|
HY-FC-3/4-1/2 |
3/4 |
1/2 |
1.84 |
0.96 |
0.62 |
1-1/16 |
|
HY-FC-3/4-3/4 |
3/4 |
1.90 |
1-5/16 |
|||
|
HY-FC-7/8-3/4 |
7/8 |
3/4 |
1.96 |
1.02 |
0.72 |
1-5/16 |
|
HY-FC-1-3/4 |
1 |
3/4 |
2.10 |
1.23 |
0.88 |
1-3/8 |
|
HY-FC-1-1 |
1 |
2.45 |
1-5/8 |
|||
