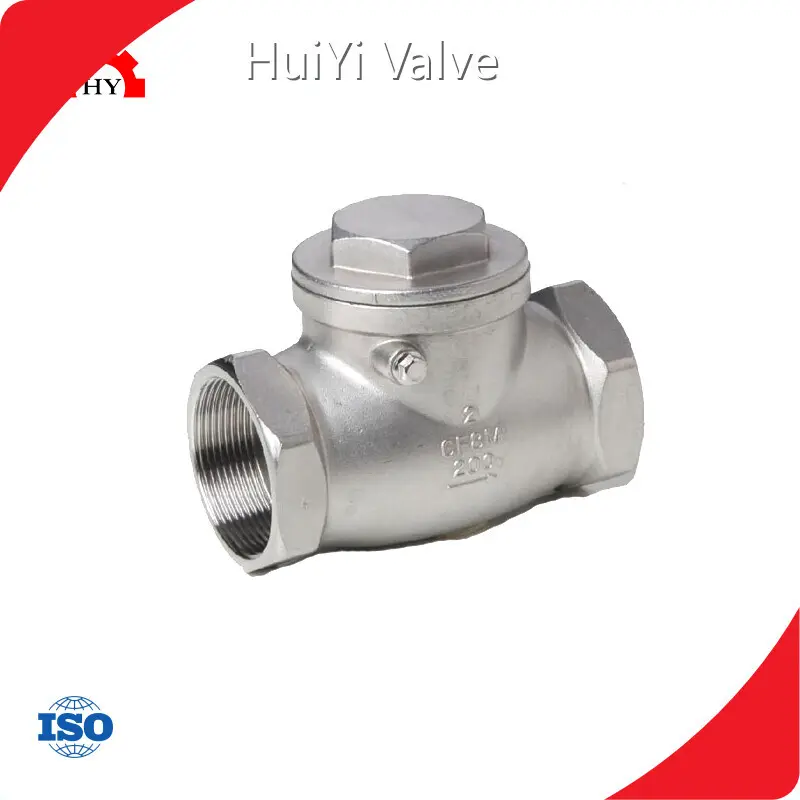

Product details of the check valve
Product Description
Featuring a comfortable look the offered check valve is made from quality approved range of materials. HuiYi Valve has gained more fame for its spectacular check valve. The check valve has gained its good reputation for its strict quality assurance.
Product Description
Check valves are used to help direct flow in one direction. The stainless steel bodies and PTFE seals are highly corrosion resistant allowing these check valves to be used with a wide variety of fluids including, but not limited to water, oil, gas, air, light alkali's, acids, biodiesel, fuels and alcohols
Swing check valves are for horizontal use only. When fluid pushes on the stopper in the correct direction, it will "swing" open to allow flow. If flow moves in the opposite direction, it will swing shut. The check valve cannot be used in vertical applications as gravity may affect the function of the swinging motion
Dimension
Size |
∅ D(mm) |
L(mm) |
H(mm) |
1/2” |
15 |
65 |
43 |
3/4” |
20 |
80 |
53 |
1” |
25 |
90 |
60 |
1-1/4” |
32 |
105 |
60 |
1-1/2” |
40 |
120 |
75 |
2” |
50 |
140 |
79 |
Main Parts
No. |
Part Name |
Material |
1 |
Bonnet |
CF8/CF8M |
2 |
Gasket |
PTFE |
3 |
Body |
CF8/CF8M |
4 |
Hanger Pin |
304 |
5 |
Plug Gasket |
PTFE |
6 |
Plug |
304 |
7 |
Discharge Plug |
CF8/CF8M |
