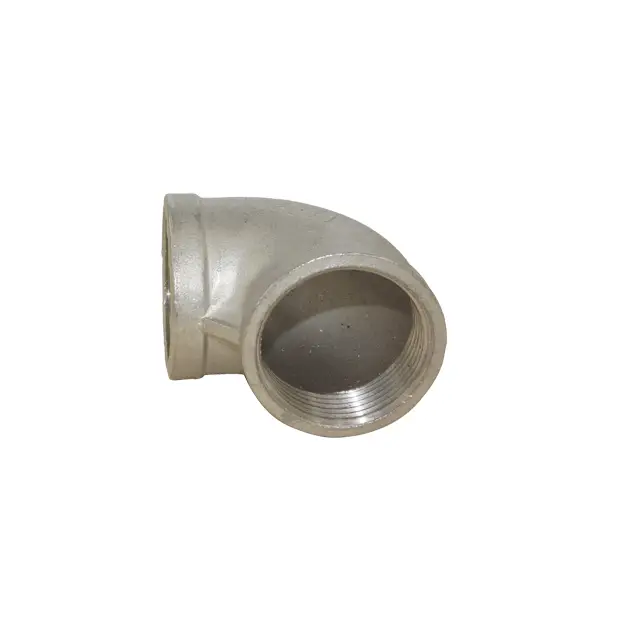

OEM Manufacturer Female Thread Plumbing Pipe Stainless Steel 90 Degree Elbow
Product Description
Shape & Size: 90 degree elbow , used to connect right angle pipes in different directions, not easy to be damaged.
Premium material 90 degree elbow is made of high-quality 304 316 stainless steel, which is durable, strong and resistant to temperature, rust and abrasion. More firmly & better airtightness.
Operating Temperature: Cast pipe fitting can withstand temperatures ranging from -20℃ to 200℃ (-4℉ to 392℉), so it can withstand changing temperatures and rain for years of use.
Wide Practicality: Elbow pipe fitting has a max working pressure of 150 PSI in gas-tight, closed pipelines. Suitable for electrical, plumbing, water pipe, automobile, commercial and residential applications.
Dimension
|
SIZE(INCH) |
D(MM) |
d(MM) |
C(MM) |
A(MM) |
|
1/8” |
13.9 |
12.2 |
5.5 |
17 |
|
1/4” |
16.9 |
14.9 |
6 |
19 |
|
3/8” |
20.2 |
18.4 |
6 |
23 |
|
1/2” |
26.9 |
24.9 |
6 |
27 |
|
3/4” |
31.9 |
29.9 |
7 |
31.5 |
|
1” |
39.9 |
37.9 |
8 |
36.5 |
|
1-1/4” |
48.9 |
46.4 |
9 |
42.5 |
|
1-1/2” |
55.4 |
52.9 |
10 |
47.5 |
|
2” |
67.4 |
64.9 |
11 |
56 |
|
2-1/2” |
84.5 |
82 |
13 |
68 |
|
3” |
98.5 |
95.5 |
15 |
77.5 |
