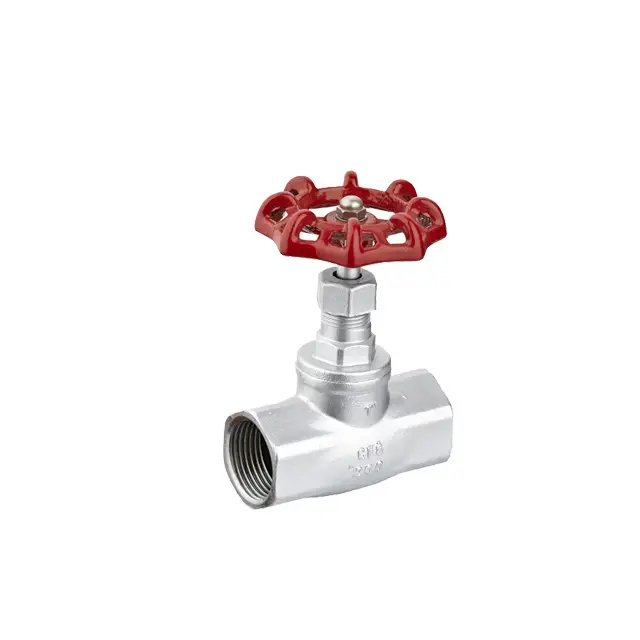

CF8 CF8M 304 316 Stainless Steel Threaded Female Water Globe Valve
Product Features
Made of high quality stainless steel material, this globe valve is sturdy and durable.
The internal fluid of valve body is straight through which allows fluid to in a straight line and the resistance is small.
It's easier to open and close, because the movement direction of the disc is perpendicular to the direction, whether on or off.
It is suitable for water, oil, gas, etc.
Widely used in mechanical equipment, chemical equipment, industrial equipment, water supply and drainage equipment, pharmaceutical equipment, petrochemical equipment, etc.
Dimension
|
Size |
∅ D(mm) |
L(mm) |
H(mm) |
∅ D1(mm) |
|
1/2” |
15 |
66 |
100 |
70 |
|
3/4” |
20 |
80 |
106 |
70 |
|
1” |
25 |
90 |
118 |
80 |
|
1-1/4” |
32 |
105 |
134 |
80 |
|
1-1/2” |
40 |
120 |
152 |
100 |
|
2” |
50 |
141 |
172 |
100 |
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Body |
CF8/CF8M |
|
2 |
Petal |
CF8/CF8M |
|
3 |
Stem |
316 |
|
4 |
Gasket |
PTFE |
|
5 |
Cap |
CF8/CF8M |
|
6 |
Washer |
316/304 |
|
7 |
Nut |
304 |
|
8 |
Ring |
304 |
|
9 |
Hand Wheel |
Aluminum |
|
10 |
Gland Ring |
CF8/CF8M |
|
11 |
Stem Packing |
PTFE |
Product details
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Body |
CF8/CF8M |
|
2 |
Petal |
CF8/CF8M |
|
3 |
Stem |
316 |
|
4 |
Gasket |
PTFE |
|
5 |
Cap |
CF8/CF8M |
|
6 |
Washer |
316/304 |
|
7 |
Nut |
304 |
|
8 |
Ring |
304 |
|
9 |
Hand Wheel |
Aluminum |
|
10 |
Gland Ring |
CF8/CF8M |
|
11 |
Stem Packing |
PTFE |
