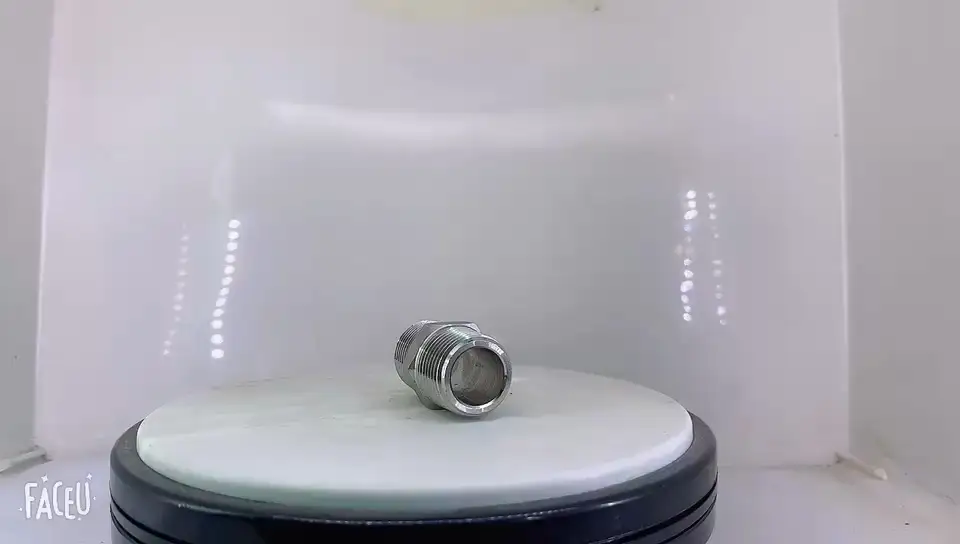

HY Male Npt Thread High Pressure Stainless Steel Hexagonal Nipple
Detalhes do produto
Visão geral do produto
HY High Pressure Stainless Steel Hexagonal NPT Threaded Fitting is a premium fitting designed for high pressure applications. Made of premium stainless steel material, it features excellent corrosion resistance, durability and reliability, and is suitable for a variety of industrial and commercial applications.
Características:
● NPT thread: American standard tapered pipe thread, ensuring compatibility with a variety of pipes and equipment.
● Hexagonal design: Easy to install and remove with a wrench.
● Premium stainless steel material: Corrosion and wear resistance, long service life.
● Multiple applications: Suitable for hydraulic systems, pneumatic systems, water treatment systems and other high pressure applications.
Vantagens do produto
● Reliability and durability: High-quality stainless steel material and solid structure ensure long-term reliable use.
● Excellent sealing performance: NPT thread design provides excellent sealing performance to prevent leakage.
● Easy to install: Hexagonal design facilitates installation and removal with a wrench.
● Wide range of applications: Suitable for a variety of high-pressure applications and has a wide range of uses.
Dimensão
| NPS | Site | ||||
| DN | IN | d | H | L1 | L2 |
| 6 | 1/8" | 4.1 | 6 | 10 | - |
| 8 | 1/4" | 7.1 | 8 | 14 | - |
| 10 | 3/8" | 8.9 | 8 | 14 | - |
| 15 | 1/2" | 11.9 | 9 | 19 | - |
| 20 | 3/4" | 16.0 | 10 | 19 | - |
| 25 | 1" | 20.1 | 11 | 24 | - |
| 32 | 1-1/4" | 27.9 | 12 | 24 | - |
| 40 | 1-1/2" | 32.0 | 14 | 25 | - |
| 50 | 2" | 39.9 | 16 | 26 | - |
| 65 | 2-1/2" | 55.1 | 18 | 38 | - |
| 80 | 3" | 65.0 | 20 | 40 | - |
GENERAL NOTES:
(a)Dimensions are in millimeters
